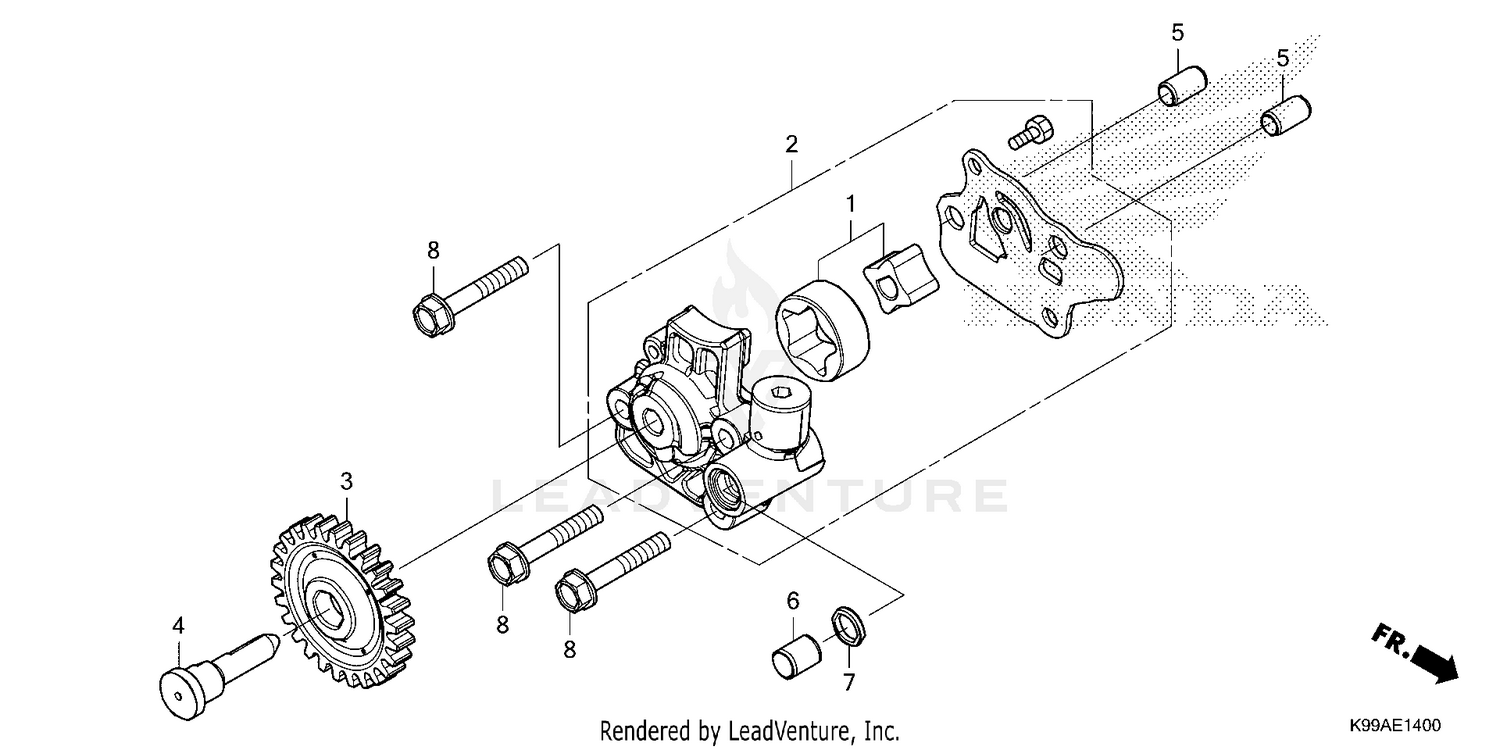

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROTOR SET, OIL PUMP (NOT AVAILABLE)
15021-KWT-D20
|
$8.64 | ||
|
Unavailable |
|||
|
#2
PUMP ASSY., OIL (NOT AVAILABLE)
15100-K2K-B00
|
$24.45 | ||
|
Unavailable |
|||
|
#3
GEAR, OIL PUMP DRIVEN (26T) (NOT AVAILABLE)
15130-K2K-D00
|
$21.91 | ||
|
Unavailable |
|||
|
#4
SHAFT, OIL PUMP (NOT AVAILABLE)
15141-K2K-D00
|
$15.82 | ||
|
Unavailable |
|||
|
#5
PIN, DOWEL (8X14)
90702-KRM-840
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL (10X12)
90703-KRM-840
Superseded by 94301-10120
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PIN, DOWEL (10X12)
94301-10120
|
$2.58 | ||
|
Unavailable |
|||
|
#7
GASKET, RUBBER (NA USE ALT:91303-KK0-003)
91303-KPF-960
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
