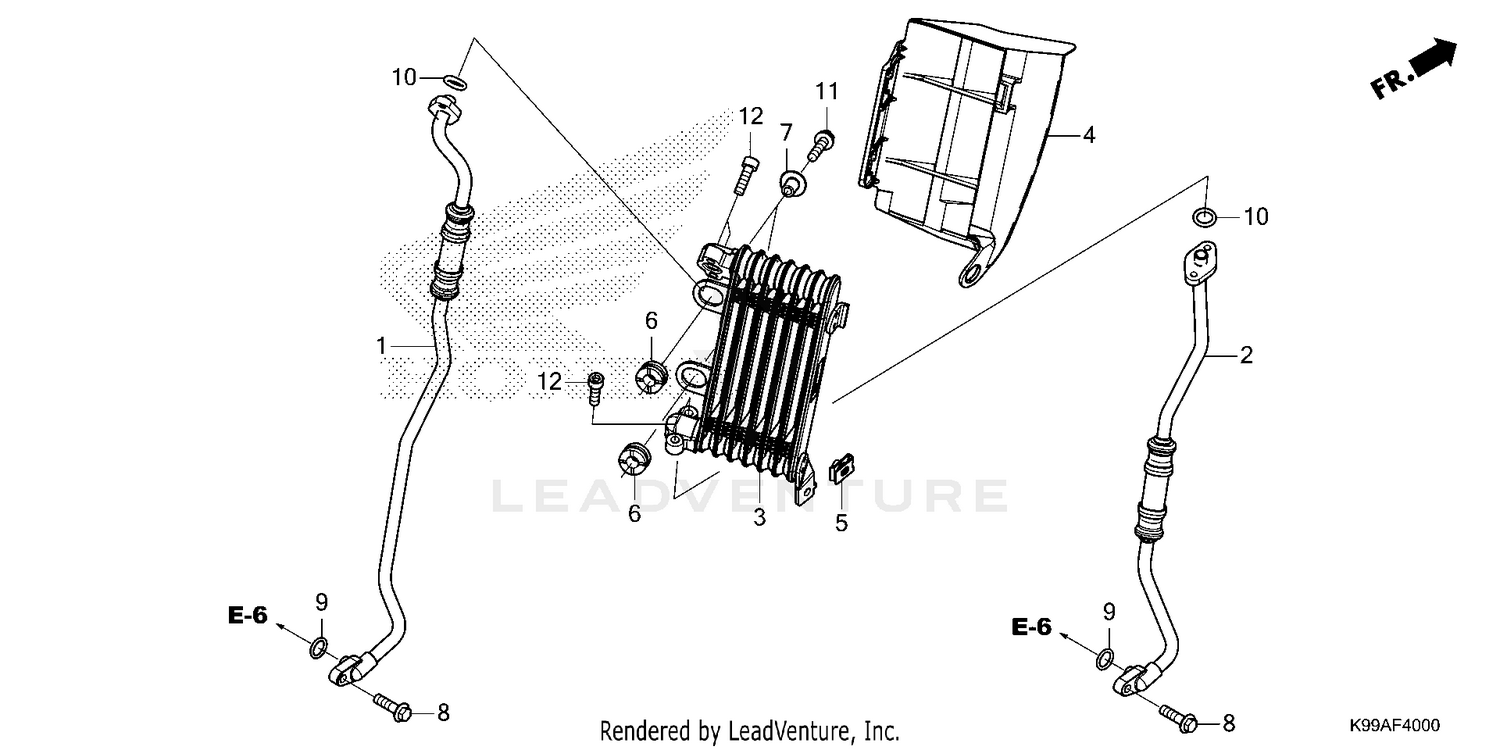

Oil Cooler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE A, OIL
15510-K99-A70
|
$466.69 | ||
|
Unavailable |
|||
|
#2
HOSE B, OIL
15520-K99-A70
|
$384.00 | ||
|
Unavailable |
|||
|
#3
COOLER, OIL
15600-K99-A71
|
$472.24 | ||
|
Unavailable |
|||
|
#4
LOUVER, OIL COOLER
15630-K99-A70
|
$7.09 | ||
|
Unavailable |
|||
|
#5
NUT, SETTING (6MM)
19014-KEA-003
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, RADIATOR MOUNTING
19052-MGH-640
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X22) (NSHF)
90004-GHB-660
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
O-RING (9.8X1.9) (NOT AVAILABLE)
91305-KPF-850
|
$1.89 | ||
|
Unavailable |
|||
|
#10
O-RING (10X2.6) (NOT AVAILABLE)
91314-KPF-850
|
$2.58 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, SOCKET (6X20)
96600-06020-00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
