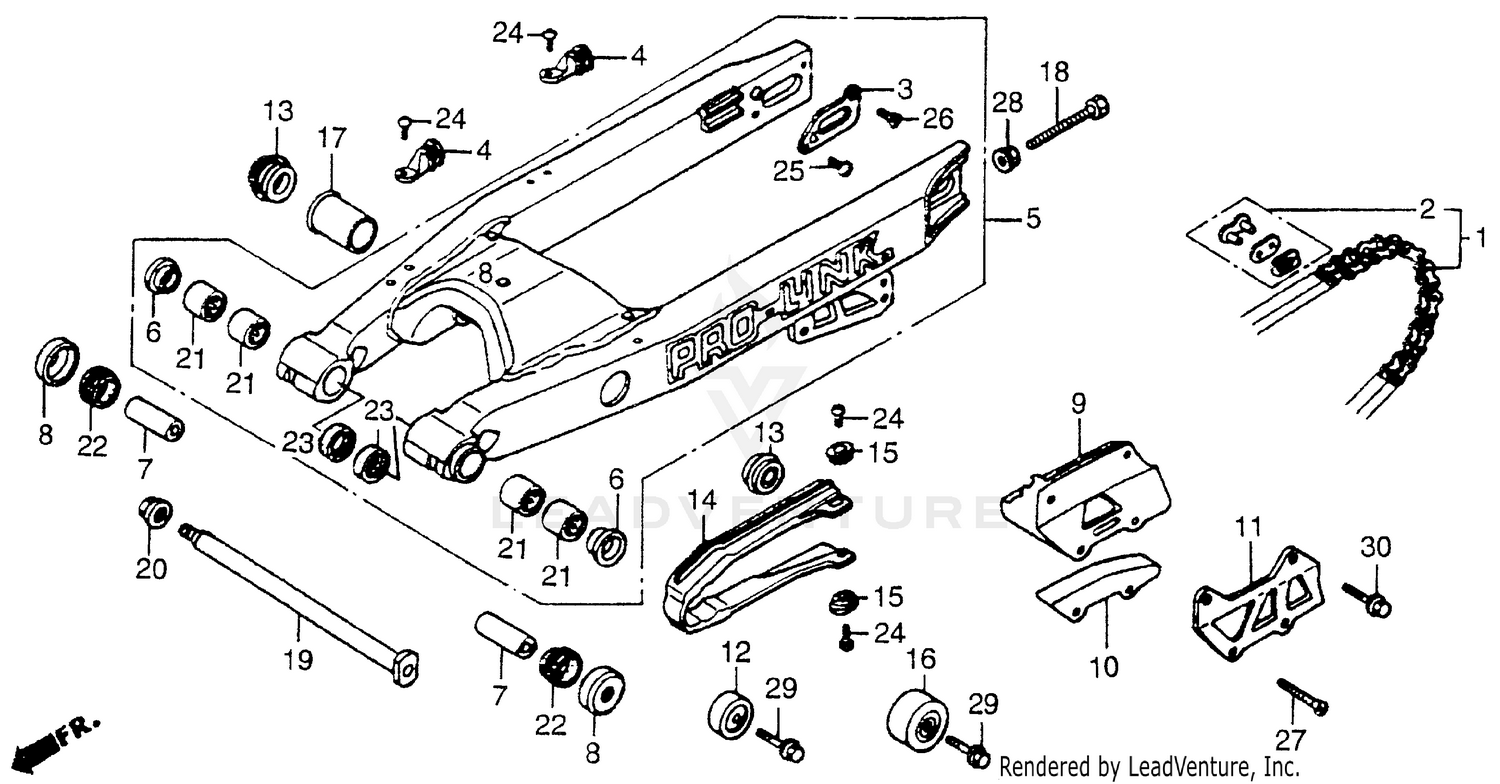

Swingarm 89 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, DRIVE
405W3-KA4-505
|
$93.62 | ||
|
Unavailable |
|||
|
#1
CHAIN, DRIVE
405W3-KA5-505
|
$110.46 | ||
|
Unavailable |
|||
|
#1
CHAIN, DRIVE
40530-KA4-731
Superseded by 405W3-KA4-505
|
$93.62 | ||
|
Unavailable |
|||
|
#1
CHAIN, DRIVE
40530-KA4-732
Superseded by 405W3-KA4-505
|
$93.62 | ||
|
Unavailable |
|||
|
#1
CHAIN, DRIVE
40530-KA4-733
Superseded by 405W3-KA4-505
|
$93.62 | ||
|
Unavailable |
|||
|
#1
CHAIN, DRIVE
40530-KA5-741
Superseded by 405W3-KA5-505
|
$110.46 | ||
|
Unavailable |
|||
|
#1
CHAIN, DRIVE
40530-KA5-742
Superseded by 405W3-KA5-505
|
$110.46 | ||
|
Unavailable |
|||
|
#1
CHAIN, DRIVE
40530-KA5-743
Superseded by 405W3-KA5-505
|
$110.46 | ||
|
Unavailable |
|||
|
#2
MASTER LINK (TAKASAGO)
40531-KA4-731
|
$7.05 | ||
|
Unavailable |
|||
|
#2
MASTER LINK (DAIDO)
40531-KA4-732
|
$6.89 | ||
|
Unavailable |
|||
|
#3
WASHER, RR. SWINGARM (INNER)
42307-KS6-830
|
$31.73 | ||
|
Unavailable |
|||
|
#4
GUIDE, RR. BRAKE HOSE
43468-KS6-700
|
$13.71 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWINGARM ASSY., RR. (NOT AVAILABLE)
52000-KZ4-000
|
$491.10 | ||
|
Unavailable |
|||
|
#6
BUSH, PIVOT THRUST
52109-KS7-830
|
$11.91 | ||
|
Unavailable |
|||
|
#7
COLLAR, RR. SWINGARM
52141-KS7-830
|
$21.54 | ||
|
Unavailable |
|||
|
#8
CAP, DUST SEAL
52144-KS7-831
|
$9.04 | ||
|
Unavailable |
|||
|
#9
GUIDE, CHAIN
52146-KS6-700
|
$27.28 | ||
|
Unavailable |
|||
|
#10
SLIDER, CHAIN GUIDE
52147-KS6-701
|
$31.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, CHAIN GUIDE (NOT AVAILABLE)
52156-KZ4-000
|
$27.43 | ||
|
Unavailable |
|||
|
#12
ROLLER, CHAIN TENSIONER
52158-KA3-831
|
$61.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CAP, RR. SWINGARM PIPE
52161-KS7-831
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
SLIDER, CHAIN
52170-KS7-830
|
$51.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, CHAIN SLIDER
52171-KR6-000
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
ROLLER, CHAIN (UPPER)
52175-KA3-831
|
$68.82 | ||
|
Unavailable |
|||
|
#17
COLLAR, GUIDE
52190-KS7-830
|
$13.06 | ||
|
Unavailable |
|||
|
#18
BOLT, HEX. (8X49)
90106-KS6-700
|
$7.16 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, RR. SWINGARM
90117-KS7-831
|
$61.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, RR. SWINGARM PIVOT
90301-KS7-830
|
$13.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, NEEDLE (22X28X20)
91071-KS7-831
|
$23.38 | ||
|
Available to order. Add to View Price |
|||
|
#22
DUST SEAL (34X38.8X8)
91253-KS7-831
|
$7.15 | ||
|
Unavailable |
|||
|
#23
DUST SEAL (22X28X5)
91254-KS7-831
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN (5X8)
93500-05008-0A
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN (6X25)
93500-06025
Superseded by 93500-06025-0A
|
$1.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SCREW, PAN (6X25)
93500-06025-0A
|
$1.25 | ||
|
Unavailable |
|||
|
#26
SCREW, FLAT (5X10)
93600-05010-0A
|
$0.82 | ||
|
Unavailable |
|||
|
#27
SCREW, FLAT (6X40)
93600-06040-0A
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
NUT, FLANGE (8MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT, FLANGE (8X35)
96400-08035-00
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X22)
96300-06022-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X22)
96500-06022-00
Superseded by 96300-06022-00
|
$1.60 | ||
|
Unavailable |
|||
