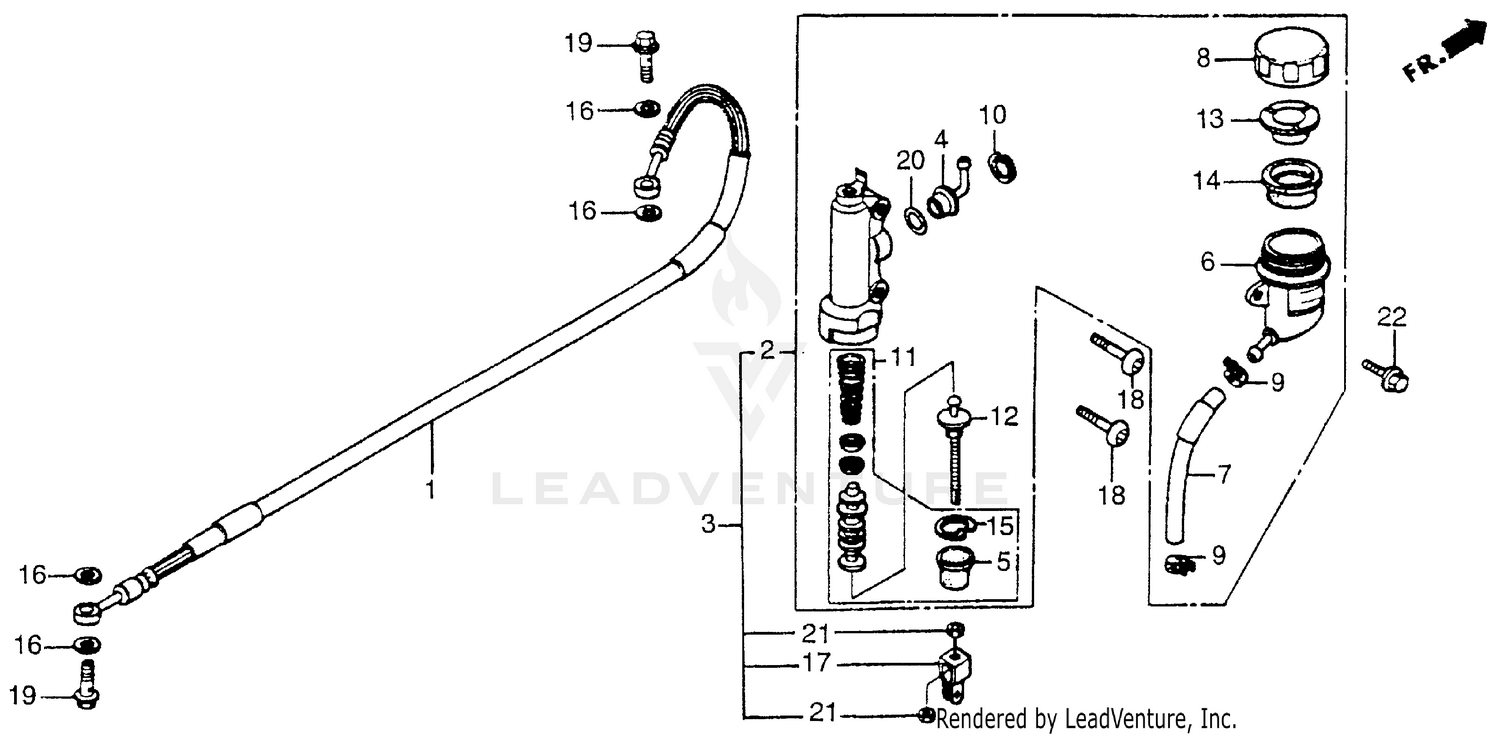

Rear Brake Master Cylinder 87-89 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, RR. BRAKE (NOT AVAILABLE)
43125-KZ4-003
|
$47.86 | ||
|
Unavailable |
|||
|
#3
MASTER CYLINDER ASSY., RR. BRAKE (NOT AVAILABLE)
43500-KZ4-016
|
$295.91 | ||
|
Unavailable |
|||
|
#4
CONNECTOR
43503-KS6-701
|
$12.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOOT
43504-MB2-006
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUP, MASTER CYLINDER OIL
43511-KS6-701
Superseded by 43511-KS6-702
|
$31.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUP, MASTER CYLINDER OIL
43511-KS6-702
|
$31.38 | ||
|
Unavailable |
|||
|
#7
HOSE, OIL
43512-KS7-833
|
$10.71 | ||
|
Unavailable |
|||
|
#8
CAP, MASTER CYLINDER
43513-KS6-701
|
$17.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$15.89 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP, RR. MASTER CYLINDER
43517-KS6-701
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
PISTON SET, MASTER CYLINDER
43520-MJ6-305
Superseded by 43520-MJ6-315
|
$54.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROD, PUSH (NISSIN)
43530-KS7-831
|
$33.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, DIAPHRAGM
45518-GM9-711
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
DIAPHRAGM
45520-GM9-711
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP, MASTER CYLINDER
46182-500-013
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
JOINT, BRAKE ROD
46504-MB2-006
|
$8.17 | ||
|
Unavailable |
|||
|
#18
BOLT, RR. MASTER CYLINDER
90109-ML3-840
|
$8.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, OIL (10X22)
90145-MS9-611
Superseded by 90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, OIL (10X22)
90145-MS9-612
|
$9.20 | ||
|
Unavailable |
|||
|
#20
O-RING (14.8X2.4)
91212-422-006
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT,HEX 8MM
94002-080000S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
