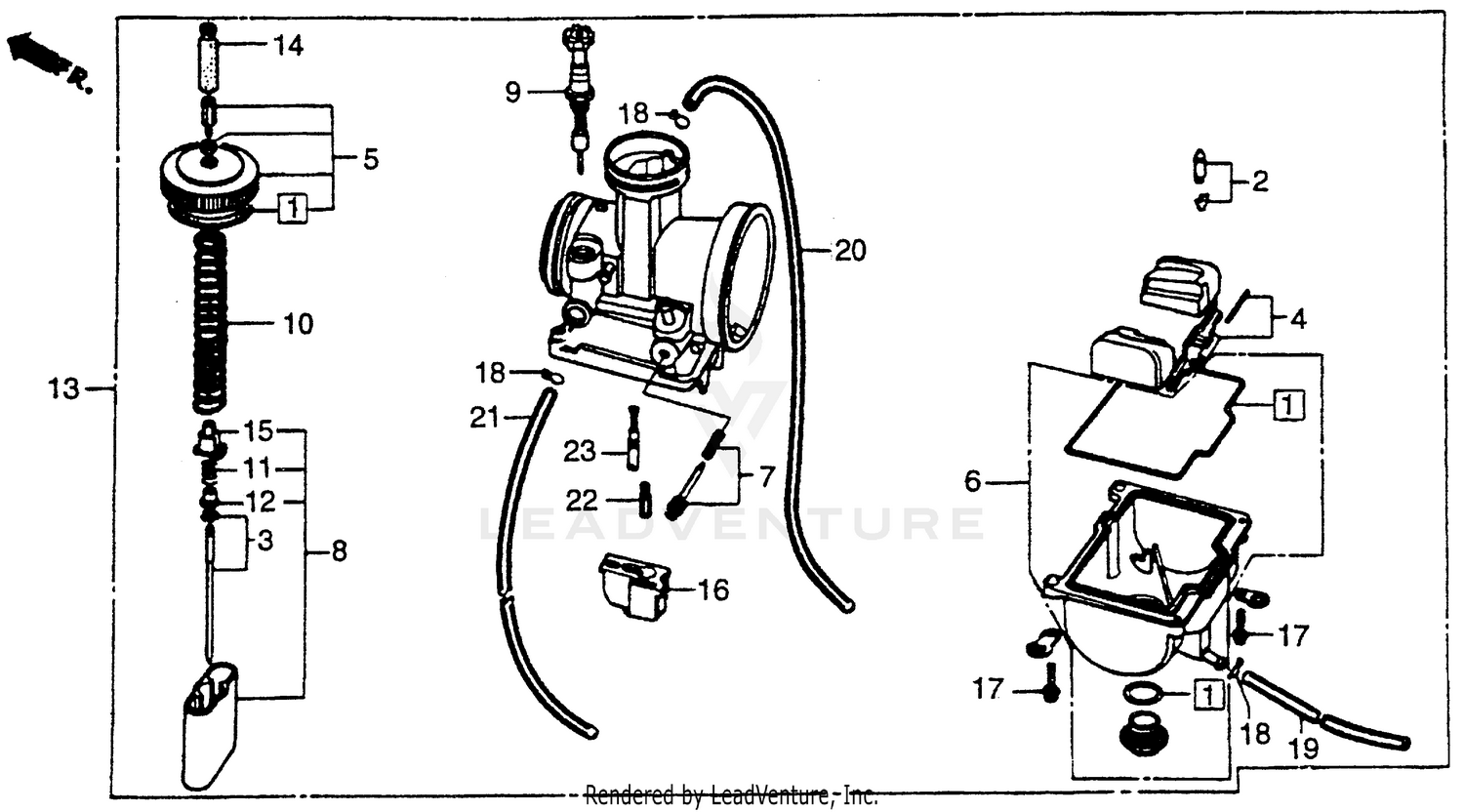

Carburetor 85-89 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-KA5-691
|
$56.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE SET, FLOAT
16011-KA3-741
|
$54.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
NEEDLE SET, JET (R1369PS) (NOT AVAILABLE)
16012-KZ3-004
|
$14.19 | ||
|
Unavailable |
|||
|
#4
FLOAT SET
16013-KA3-741
Superseded by 16013-HA2-671
|
$59.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
TOP SET
16014-KA5-691
|
$41.39 | ||
|
Unavailable |
|||
|
#6
CHAMBER SET, FLOAT
16015-KA3-761
|
$132.17 | ||
|
Unavailable |
|||
|
#7
SCREW SET
16016-HA2-004
|
$27.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE SET, THROTTLE
16022-KZ3-004
|
$78.02 | ||
|
Unavailable |
|||
|
#9
VALVE SET, STARTER
16046-KS7-004
|
$79.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, COMPRESSION
16050-KA5-691
|
$16.34 | ||
|
Unavailable |
|||
|
#11
SPRING, COMPRESSION COIL
16051-KA3-761
|
$18.75 | ||
|
Unavailable |
|||
|
#12
COLLAR, SPRING SETTING
16066-KA3-761
|
$3.49 | ||
|
Unavailable |
|||
|
#13
CARBURETOR ASSY.
16100-KZ3-014
Superseded by 16100-KZ3-306
|
$298.14 | ||
|
Unavailable |
|||
|
#14
CAP, CABLE SEALING
16118-166-004
|
$10.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, CABLE
16137-KA3-761
|
$13.10 | ||
|
Unavailable |
|||
|
#16
PLATE, BUFFER
16185-KA3-761
|
$12.46 | ||
|
Unavailable |
|||
|
#17
SCREW-WASHER (4X16)
93892-04016-08
|
$0.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CLIP, TUBE (B7)
95002-02070
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BULK HOSE, VINYL (3.5X6.5X8000) (3.5X6.5X270)
95003-05008-60M
|
$23.43 | ||
|
Available to order. Add to View Price |
|||
|
#20
BULK HOSE, VINYL (4X7X8000) (4X7X330)
95003-07008-60M
|
$29.67 | ||
|
Available to order. Add to View Price |
|||
|
#21
BULK HOSE, VINYL (4X7X8000) (4X7X360)
95003-07008-60M
|
$29.67 | ||
|
Unavailable |
|||
|
#22
JET, MAIN (#178)
99101-357-1780
Superseded by 99113-GHB-1780
|
$11.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
JET, MAIN (#178)
99113-GHB-1780
|
$11.40 | ||
|
Unavailable |
|||
|
#23
JET, SLOW (#58)
99103-KA3-0580
|
$10.78 | ||
|
Unavailable |
|||
|
#23
JET, SLOW (#58)
99103-440-0580
Superseded by 99103-KA3-0580
|
$10.78 | ||
|
Unavailable |
|||
