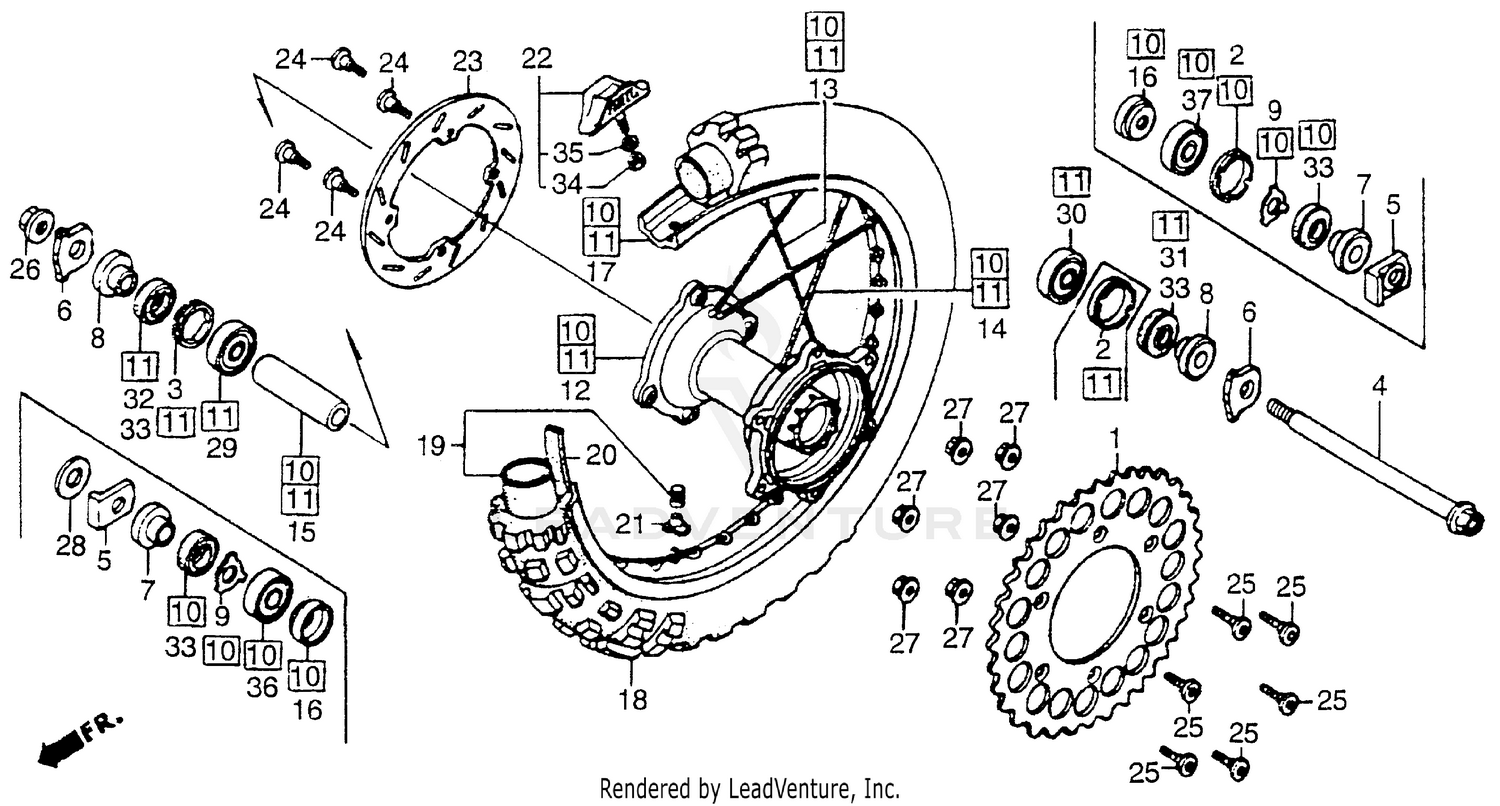

Rr. Wheel 87-89 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, FINAL DRIVEN (51T)
41201-KS6-830
Superseded by 41201-MEY-000
|
$132.24 | ||
|
Available to order. Add to View Price |
|||
|
#1
SPROCKET, FINAL DRIVEN (53T)
41201-KS7-700
Superseded by 41201-KZ3-740
|
$108.25 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (53T)
41201-KZ3-740
|
$108.25 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (51T)
41201-KZ4-711
Superseded by 41201-MEY-000
|
$132.24 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (51T)
41202-KZ3-B00
Superseded by 41201-MEY-000
|
$132.24 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (51T)
41202-KZ4-J20
Superseded by 41201-MEY-000
|
$132.24 | ||
|
Unavailable |
|||
|
#1
SPROCKET, RR. (49T)
41202-KS6-305
Superseded by 41202-KS6-700
|
$100.68 | ||
|
Unavailable |
|||
|
#1
SPROCKET, RR. (49T)
41202-KS6-306
Superseded by 41202-KS6-700
|
$100.68 | ||
|
Unavailable |
|||
|
#1
SPROCKET, RR. (49T)
41202-KS6-700
|
$100.68 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (53T)
41203-KS6-305
Superseded by 41201-KZ3-740
|
$108.25 | ||
|
Unavailable |
|||
|
#1
SPROCKET, FINAL DRIVEN (51T) (STEEL)
41204-KA3-710
|
$62.74 | ||
|
Unavailable |
|||
|
#3
RETAINER, RR. WHEEL BEARING
41231-KZ4-000
|
$31.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
AXLE, RR. WHEEL
42301-KS6-700
|
$69.16 | ||
|
Unavailable |
|||
|
#6
COLLAR, RR. AXLE
42306-KS7-830
|
$18.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, RR. WHEEL SIDE
42311-KS6-830
|
$35.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
WHEEL SUB-ASSY., RR. (NOT AVAILABLE)
426A5-KZ3-010
Superseded by 42630-KZ3-325
|
$387.38 | ||
|
Unavailable |
|||
|
#12
HUB, RR. WHEEL (NA USE ALT:426A5-ML3-842ZA)
42601-ML3-680
|
$210.03 | ||
|
Unavailable |
|||
|
#13
SPOKE SET A, RR. (196MM)
42610-KZ4-810
|
$4.51 | ||
|
Unavailable |
|||
|
#14
SPOKE SET B, RR. (193MM)
42611-KZ4-810
|
$4.62 | ||
|
Unavailable |
|||
|
#15
COLLAR, RR. DISTANCE
42620-ML3-680
|
$36.91 | ||
|
Available to order. Add to View Price |
|||
|
#17
RIM, RR. WHEEL
42701-KZ3-003
Superseded by 42701-KZ3-013
|
$301.31 | ||
|
Available to order. Add to View Price |
|||
|
#17
RIM, RR. WHEEL
42701-KZ3-013
|
$301.31 | ||
|
Unavailable |
|||
|
#17
RIM, RR. WHEEL
42701-ML3-910
|
|||
|
Unavailable |
|||
|
#18
TIRE, RR. (110/100-18) (64M D756) (DUNLOP)
42711-ML3-911
Superseded by 42711-MEY-004
|
$119.57 | ||
|
Unavailable |
|||
|
#18
TIRE, RR. (110/100-18) (64M D756) (DUNLOP)
42711-KZ3-671
Superseded by 42711-MEY-004
|
$119.57 | ||
|
Unavailable |
|||
|
#19
TUBE, TIRE
42712-KT1-671
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#19
TUBE, TIRE
42712-KS7-641
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#19
TUBE, TIRE
42712-KV6-009
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#19
TUBE, TIRE
42712-400-003
Superseded by 42712-KT1-673
|
$44.24 | ||
|
Unavailable |
|||
|
#20
FLAP, TIRE (2.15-18) (DUNLOP)
42713-KS6-641
Superseded by 42713-300-004
|
$7.71 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP, VALVE
42714-KA3-710
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#22
STOPPER, BEAD (2.15)
42715-MA0-770
|
$45.91 | ||
|
Available to order. Add to View Price |
|||
|
#23
DISK, RR. BRAKE
43351-KZ4-000
Superseded by 43351-ML3-790
|
$214.59 | ||
|
Unavailable |
|||
|
#23
DISK, RR. BRAKE
43351-ML3-790
|
$214.59 | ||
|
Unavailable |
|||
|
#24
BOLT, DISK (6X17)
90105-KZ4-000
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, FLAT (8X29)
90125-KA3-700
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, FLANGE (18MM)
90305-KS6-003
Superseded by 90305-MCC-000
|
$8.91 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, HEX. (8MM)
90309-357-000
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, RADIAL BALL (20X47X20.6) (TOYO)
91053-MN5-003
|
$90.78 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, RADIAL BALL (20X47X20.6) (NTN)
91061-ML3-681
Superseded by 91053-MN5-003
|
$90.78 | ||
|
Unavailable |
|||
|
#30
BEARING, RADIAL BALL (6004)
91062-KS6-831
|
$38.44 | ||
|
Available to order. Add to View Price |
|||
|
#31
DUST SEAL (28X38X7)
91251-KZ4-003
|
$11.94 | ||
|
Available to order. Add to View Price |
|||
|
#32
DUST SEAL (28X47X7)
91252-KZ4-003
|
$13.71 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
