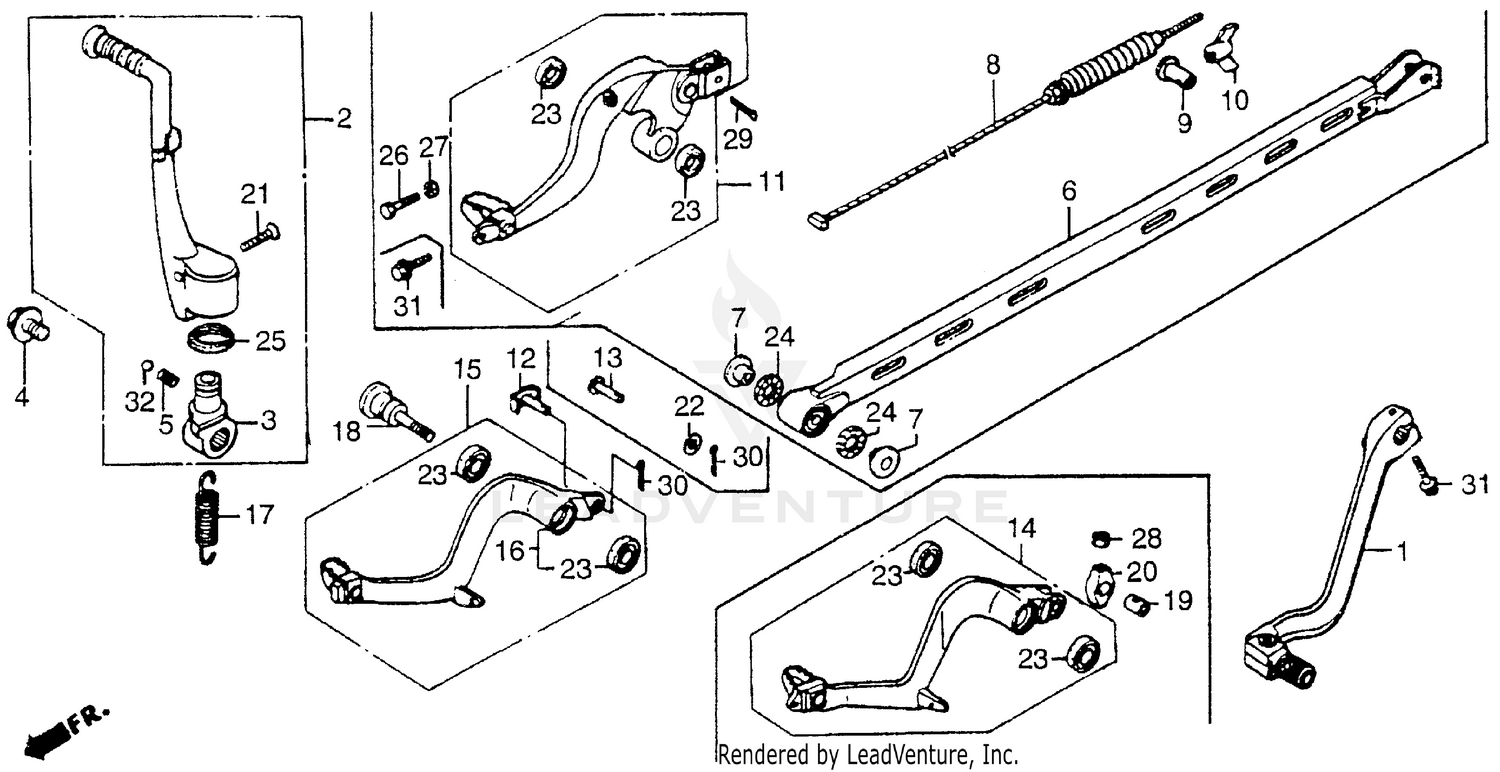

Change Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, GEARSHIFT
24700-KS7-831
Superseded by 24700-ML3-600
|
$83.45 | ||
|
Available to order. Add to View Price |
|||
|
#1
PEDAL, GEARSHIFT
24700-ML3-600
|
$83.45 | ||
|
Unavailable |
|||
|
#2
ARM ASSY., KICK STARTER
28300-KS7-831
|
$130.78 | ||
|
Unavailable |
|||
|
#3
JOINT, KICK ARM (NOT AVAILABLE)
28302-KS7-831
|
$62.57 | ||
|
Unavailable |
|||
|
#4
BOLT, KICK JOINT
28306-KAE-000
|
$14.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, KICK JOINT
28306-KA3-830
Superseded by 28306-KAE-000
|
$14.40 | ||
|
Unavailable |
|||
|
#5
SPRING, KICK STARTER
28333-KK0-000
|
$2.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PIN D, JOINT
46503-KW3-000
Superseded by 95015-54000
|
$5.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PIN D, JOINT
95015-54000
|
$5.33 | ||
|
Unavailable |
|||
|
#16
PEDAL, RR. BRAKE (NOT AVAILABLE)
46510-KZ3-000
|
$82.56 | ||
|
Unavailable |
|||
|
#17
SPRING, BRAKE PEDAL
46511-KS6-701
Superseded by 46511-MN8-700
|
$4.35 | ||
|
Unavailable |
|||
|
#17
SPRING, BRAKE PEDAL
46511-MN8-700
|
$4.35 | ||
|
Unavailable |
|||
|
#18
SHAFT, BRAKE PIVOT
46513-KS7-700
Superseded by 46513-MAC-680
|
$26.96 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, KICK ARM
90101-KA4-700
Superseded by 90101-MAC-680
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, KICK ARM
90101-MAC-680
|
$7.44 | ||
|
Unavailable |
|||
|
#23
DUST SEAL (15X20X2.5)
91251-444-000
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#25
DUST SEAL (17X20X2.5)
46525-KK0-003
|
$6.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
PIN, COTTER (2.0X12)
94201-20120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BALL, STEEL (#8) (1/4)
96211-08000
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
