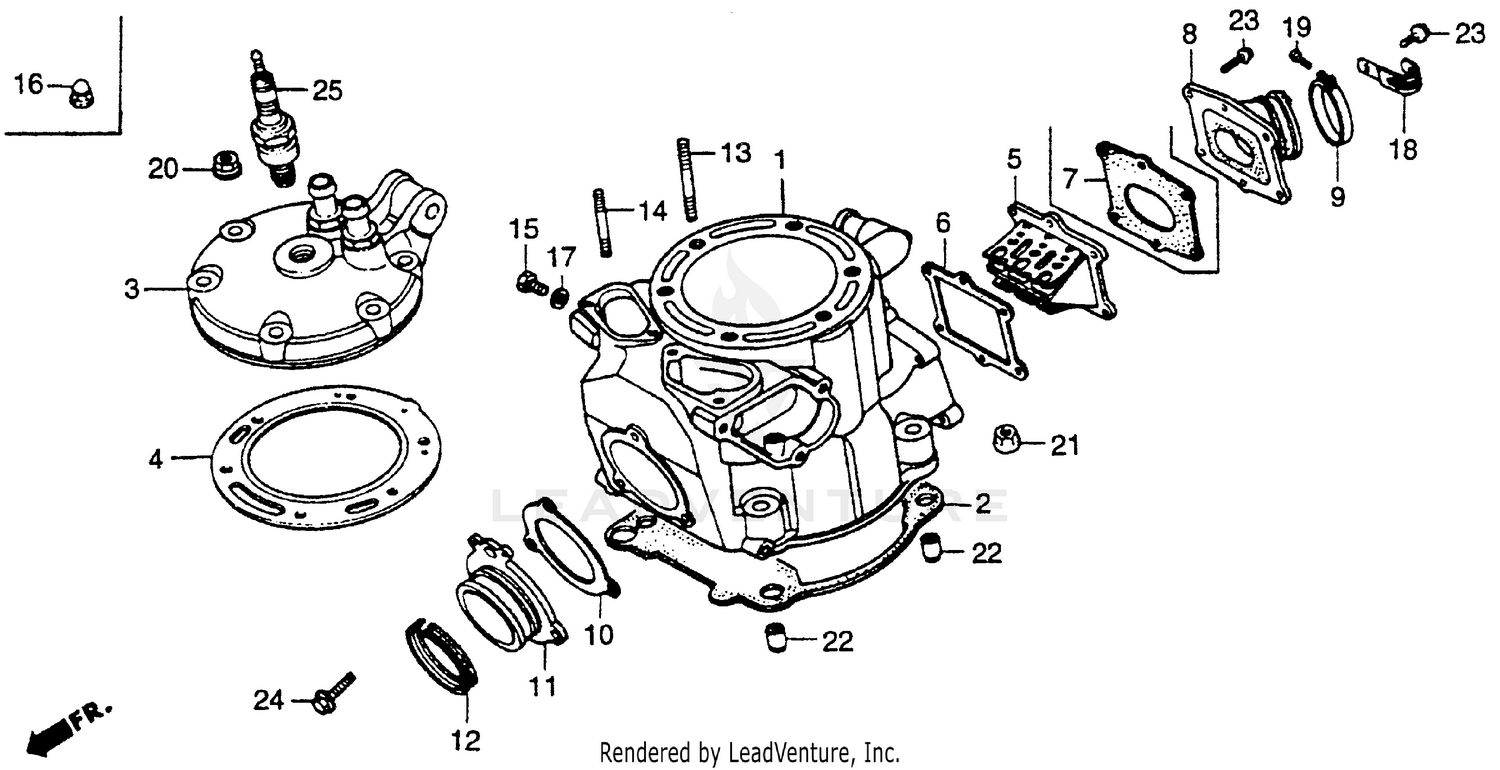

Cylinder Head 86-89 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER (NOT AVAILABLE)
12100-KZ3-000
|
$521.11 | ||
|
Unavailable |
|||
|
#2
GASKET, CYLINDER
12191-KS7-306
Superseded by 12191-KS7-880
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CYLINDER
12191-KS7-700
Superseded by 12191-KS7-880
|
$7.30 | ||
|
Unavailable |
|||
|
#2
GASKET, CYLINDER
12191-KS7-880
|
$7.30 | ||
|
Unavailable |
|||
|
#2
GASKET, CYLINDER
12191-KZ3-000
Superseded by 12191-KS7-880
|
$7.30 | ||
|
Unavailable |
|||
|
#3
CYLINDER HEAD (NOT AVAILABLE)
12200-KZ3-000
|
$121.54 | ||
|
Unavailable |
|||
|
#4
GASKET, CYLINDER HEAD
12254-KZ3-000
|
$40.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
VALVE ASSY., REED
14100-KZ3-003
Superseded by 14100-KZ3-013
|
$104.97 | ||
|
Unavailable |
|||
|
#5
VALVE ASSY., REED
14100-KZ3-013
|
$104.97 | ||
|
Unavailable |
|||
|
#6
GASKET A, REED VALVE
14132-KAE-000
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET A, REED VALVE
14132-430-000
Superseded by 14132-KAE-000
|
$5.09 | ||
|
Unavailable |
|||
|
#8
INSULATOR, CARBURETOR
16221-KS7-830
|
$64.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND, INSULATOR
16223-KA5-690
|
$17.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, EX. FLANGE
18291-KS7-000
Superseded by 18291-KS7-880
|
$3.79 | ||
|
Unavailable |
|||
|
#10
GASKET, EX. FLANGE
18291-KS7-880
|
$3.79 | ||
|
Unavailable |
|||
|
#11
JOINT, EX. PIPE
18352-KS7-010
|
$79.69 | ||
|
Unavailable |
|||
|
#12
SEAL, EX. PIPE
18359-KS7-000
|
$15.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, SPECIAL STUD
90011-HA2-000
|
$9.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT 2, STUD (6X20)
92900-06020-0B
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, OIL CHECK
90037-360-000
|
$4.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
GASKET, FR. FORK DRAIN VALVE
90543-273-000
|
$2.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CLIP, WIRE HARNESS
91406-657-671
|
$11.08 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN (5X25)
93500-05025-0A
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, FLANGE (8MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN A, DOWEL (12X20)
94301-12200
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X22)
96300-06022-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X18)
96000-06018-07
Superseded by 96001-06018-07
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X18)
96001-06018-07
|
$1.44 | ||
|
Unavailable |
|||
|
#25
SPARK PLUG (BR8EG) (NGK)
98079-58649
Superseded by 98079-58679
|
$7.07 | ||
|
Unavailable |
|||
|
#25
SPARK PLUG (BR8EG) (NGK)
98079-58649-00
Superseded by 98079-58679
|
$7.07 | ||
|
Unavailable |
|||
|
#25
SPARK PLUG (W24ESR-V) (DENSO)
98079-58659
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPARK PLUG (BR8EG) (NGK)
98079-58669
Superseded by 98079-58679
|
$7.07 | ||
|
Unavailable |
|||
|
#25
SPARK PLUG (BR8EG) (NGK)
98079-58679
|
$7.07 | ||
|
Unavailable |
|||
