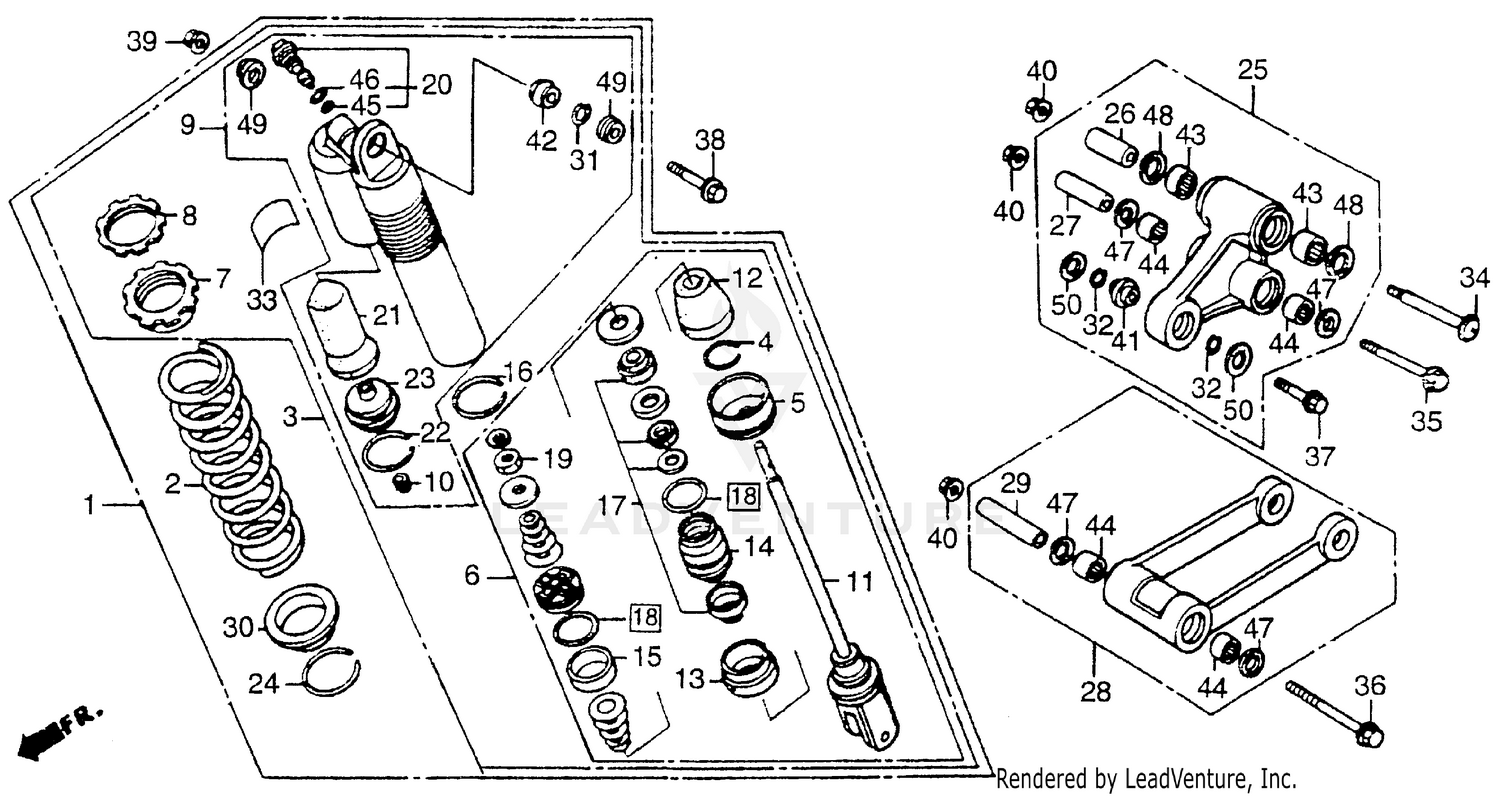

Shock Absorber 89 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSY., RR. (SHOWA)
52400-KZ3-671
|
$903.98 | ||
|
Unavailable |
|||
|
#2
SPRING, RR. SHOCK ABSORBER (51N/MM,5.2KGF/MM)
52401-KZ3-671
|
$146.97 | ||
|
Unavailable |
|||
|
#2
SPRING, RR. SHOCK ABSORBER (4.8KGF/MM) (SHOWA)
52402-KZ3-810
|
$146.97 | ||
|
Unavailable |
|||
|
#2
SPRING, RR. SHOCK ABSORBER (54.9N/MM,5.6KGF/MM) (SHOWA) (NOT AVAILABLE)
52403-KZ3-810
|
$126.80 | ||
|
Unavailable |
|||
|
#3
DAMPER, RR. (SHOWA)
52410-KZ3-671
|
$854.83 | ||
|
Unavailable |
|||
|
#4
RING, STOPPER
52418-KZ3-003
|
$3.05 | ||
|
Unavailable |
|||
|
#5
STOPPER, SPRING SEAT
52419-KZ3-003
|
$18.97 | ||
|
Unavailable |
|||
|
#6
ROD, PISTON
52421-KZ3-671
|
$283.67 | ||
|
Unavailable |
|||
|
#7
ADJUSTER, SPRING
52422-KS7-701
|
$38.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, ADJUSTER
52423-KS7-701
|
$29.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
CASE, SHOCK ABSORBER (SHOWA)
52425-KZ3-003
|
$850.33 | ||
|
Unavailable |
|||
|
#10
CAP, AIR VALVE
52425-381-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROD (SHOWA) (NOT AVAILABLE)
52426-KZ3-003
|
$324.60 | ||
|
Unavailable |
|||
|
#12
RUBBER, STOPPER
52427-KZ3-003
|
$19.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
PLATE, END (SHOWA)
52428-KA4-832
|
$13.18 | ||
|
Unavailable |
|||
|
#14
CASE, ROD GUIDE (SHOWA)
52429-ML3-841
|
$23.98 | ||
|
Unavailable |
|||
|
#15
RING, PISTON (SHOWA)
52431-KA4-831
|
$18.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING, STOPPER (SHOWA)
52435-KS7-831
|
$3.47 | ||
|
Unavailable |
|||
|
#17
OIL SEAL SET (SHOWA)
52436-ML3-305
|
$21.23 | ||
|
Unavailable |
|||
|
#18
O-RING SET (SHOWA)
52437-KA4-841
|
$11.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, HEX. (12MM)
52438-KA4-741
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, PLUG (NOT AVAILABLE)
52440-KZ3-003
|
$87.92 | ||
|
Unavailable |
|||
|
#21
BLADDER (SHOWA)
52451-KS7-831
|
$21.73 | ||
|
Available to order. Add to View Price |
|||
|
#22
RING, STOPPER (SHOWA)
52452-KS7-831
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP, CHAMBER (SHOWA)
52453-KS7-831
|
$47.74 | ||
|
Unavailable |
|||
|
#24
RING, STOPPER (SHOWA)
52455-MM5-003
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#25
ARM ASSY., SHOCK ABSORBER
52460-KZ4-000
Superseded by 52460-KZ4-020
|
$321.08 | ||
|
Unavailable |
|||
|
#25
ARM ASSY., SHOCK ABSORBER
52460-KZ4-020
|
$321.08 | ||
|
Unavailable |
|||
|
#26
COLLAR, CUSHION ARM PIVOT
52463-KZ4-000
|
$11.14 | ||
|
Unavailable |
|||
|
#27
COLLAR, CUSHION ARM
52464-KZ4-000
|
$16.80 | ||
|
Unavailable |
|||
|
#28
ROD ASSY., SHOCK ABSORBER
52470-KZ4-000
Superseded by 52470-KZ4-020
|
$228.59 | ||
|
Unavailable |
|||
|
#28
ROD ASSY., SHOCK ABSORBER
52470-KZ4-020
|
$228.59 | ||
|
Unavailable |
|||
|
#29
COLLAR, CONNECTING ROD PIVOT
52473-KZ4-000
|
$18.89 | ||
|
Unavailable |
|||
|
#30
SEAT, SPRING
52486-KZ3-003
|
$26.63 | ||
|
Unavailable |
|||
|
#31
RING, STOPPER (SHOWA)
52487-KA4-831
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#32
RING, STOPPER
52487-KN5-000
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#33
LABEL, RR. DAMPER WARNING
87516-KZ3-671
|
$3.38 | ||
|
Unavailable |
|||
|
#34
BOLT, FLANGE (14X108)
90128-KZ4-000
Superseded by 90128-KZ4-010
|
$24.44 | ||
|
Unavailable |
|||
|
#34
BOLT, FLANGE (14X108)
90128-KZ4-010
|
$24.44 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE (12X92)
90129-KZ4-000
Superseded by 90129-KZ4-010
|
$12.22 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE (12X92)
90129-KZ4-010
|
$12.22 | ||
|
Unavailable |
|||
|
#36
BOLT, FLANGE (12X113)
90130-KZ4-000
Superseded by 90130-KZ4-010
|
$17.52 | ||
|
Unavailable |
|||
|
#36
BOLT, FLANGE (12X113)
90130-KZ4-010
|
$17.52 | ||
|
Unavailable |
|||
|
#37
BOLT, FLANGE (10X38)
90153-KS7-830
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE (10X58)
90182-KA3-730
Superseded by 90153-KK0-000
|
$9.13 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, AXLE (10MM)
90304-GA6-003
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, FLANGE (12MM)
90306-KA4-003
Superseded by 90306-181-761
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, FLANGE (12MM)
90306-181-761
|
$7.64 | ||
|
Unavailable |
|||
|
#41
BEARING, SPHERICAL (10)
91074-KS7-831
|
$21.41 | ||
|
Unavailable |
|||
|
#42
BEARING, SPHERICAL (10.1MM)
91077-KS7-013
|
$46.42 | ||
|
Available to order. Add to View Price |
|||
|
#43
BEARING, NEEDLE (22X28X16)
91078-KS7-834
Superseded by 91078-KS7-836
|
$22.47 | ||
|
Unavailable |
|||
|
#43
BEARING, NEEDLE (22X28X16)
91078-KS7-836
|
$22.47 | ||
|
Unavailable |
|||
|
#44
BEARING, NEEDLE (20X26X20)
91079-KS7-834
Superseded by 91079-KZ3-731
|
$29.33 | ||
|
Available to order. Add to View Price |
|||
|
#44
BEARING, NEEDLE (20X26X20)
91079-KZ3-731
|
$29.33 | ||
|
Unavailable |
|||
|
#45
O-RING (15.5X1.5)
91256-GC5-003
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#46
O-RING (21X1.9)
91257-KZ3-003
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#47
DUST SEAL (20X28X5)
91261-KS7-832
|
$6.66 | ||
|
Unavailable |
|||
|
#48
DUST SEAL (22X30X5)
91262-KS7-831
|
$7.32 | ||
|
Unavailable |
|||
|
#49
DUST SEAL, RR. SHOCK (UPPER) (SHOWA)
91351-KS7-003
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#50
DUST SEAL, SHOCK (LOWER)
91351-KS7-832
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
