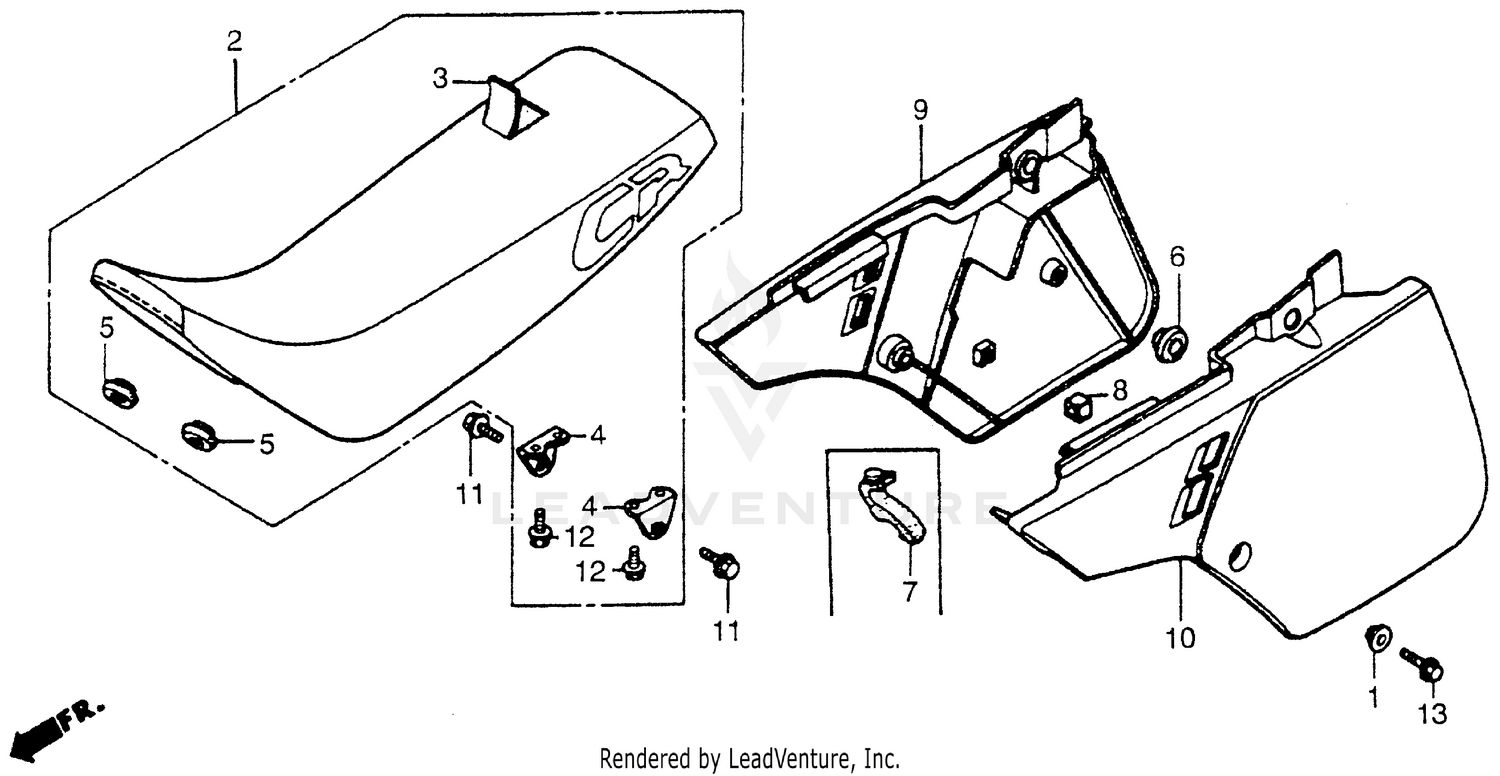

Seat 87-89 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER (6.5X5.5)
90505-MA6-000
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAT (117MM) (NOT AVAILABLE)
77100-KZ3-670
|
$205.45 | ||
|
Unavailable |
|||
|
#2
SEAT (90MM) (NOT AVAILABLE)
77100-KZ4-000
|
$206.71 | ||
|
Unavailable |
|||
|
#3
COVER, SEAT ( 117MM) (NOT AVAILABLE)
77101-KZ3-000
|
$57.05 | ||
|
Unavailable |
|||
|
#3
COVER, SEAT ( 90MM) (NOT AVAILABLE)
77101-KZ4-000
|
$58.70 | ||
|
Unavailable |
|||
|
#4
STAY, RR. SEAT (NOT AVAILABLE)
77105-KA3-830
|
$15.70 | ||
|
Unavailable |
|||
|
#5
RUBBER, SEAT MOUNTING
77110-KA3-730
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, SIDE COVER (PD)
83512-KA4-700
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, SIDE COVER STOPPER
83515-KS7-830
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER SUB-ASSY., R. SIDE *R134* (FIGHTING RED) (NOT AVAILABLE)
83520-KS7-831ZA
|
$63.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER SUB-ASSY., L. SIDE *R134* (TYPE1) (FIGHTING RED) (NOT AVAILABLE)
83620-KS6-701ZA
|
$67.84 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE (8X20)
90133-KA3-730
Superseded by 96300-08020-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (8X20)
96300-08020-00
|
$1.80 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE (8X20)
96500-08012-00
Superseded by 96300-08020-00
|
$1.80 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE (8X20)
96500-08020-00
Superseded by 96300-08020-00
|
$1.80 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE (6X10)
95700-06010-00
Superseded by 95701-06010-00
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X10)
95701-06010-00
|
$1.32 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
