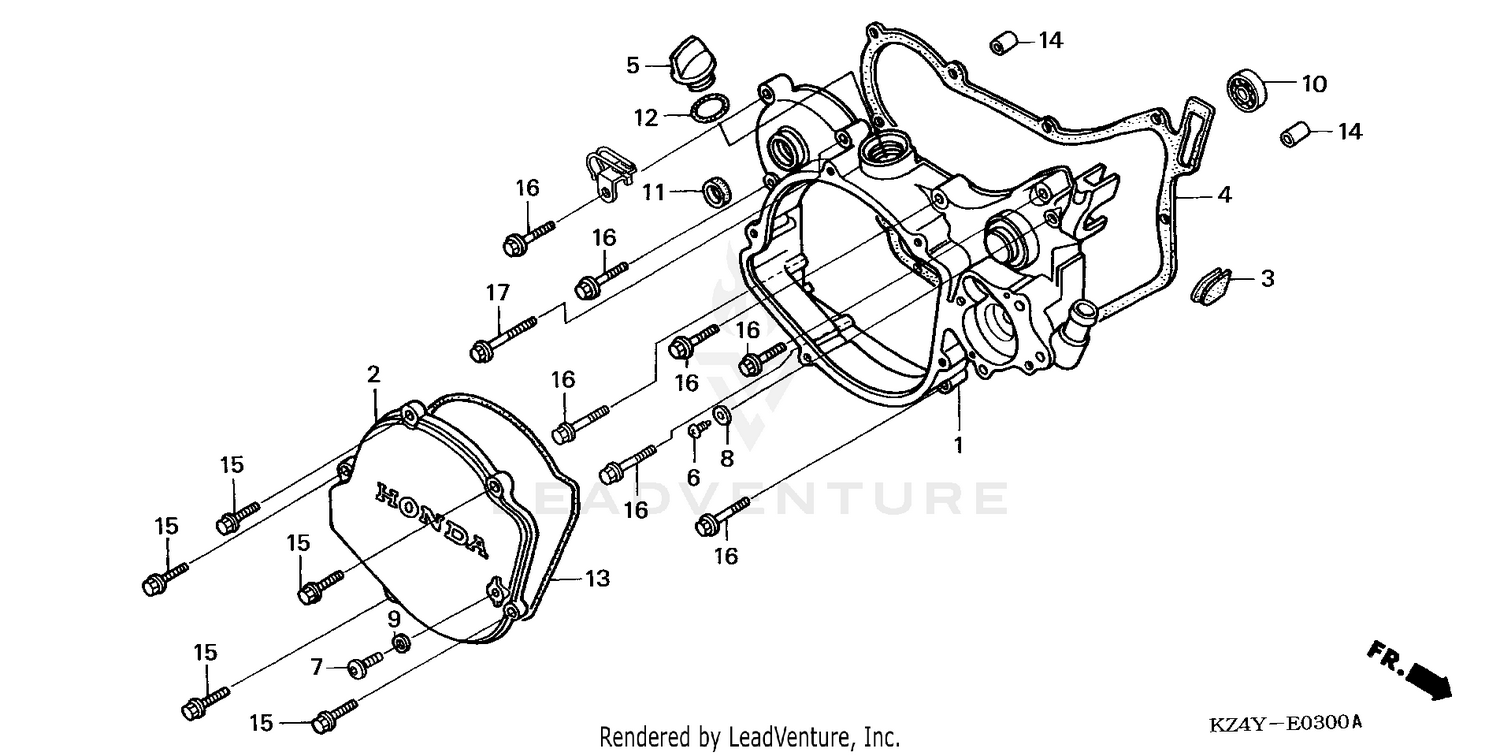

Right Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R. CRANKCASE
11340-KZ4-L10
|
$148.68 | ||
|
Unavailable |
|||
|
#2
COVER, CLUTCH
11342-KZ4-A90
|
$98.81 | ||
|
Available to order. Add to View Price |
|||
|
#3
GROMMET, R. COVER
11343-KZ4-A90
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, R. COVER
11394-KZ4-A90
|
$23.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, OIL FILLER
15611-KA4-710
|
$17.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BOLT, SPECIAL (6MM)
90035-KZ4-620
|
$6.37 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN (6X10)
90105-MM4-000
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SEALING (6MM)
90430-PD6-003
|
$5.03 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BEARING, RADIAL BALL (7X19X6) (TOYO)
91002-KA4-005
Superseded by 91002-KA4-003
|
$26.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL (16.5X25X5) (NOK)
91205-KA3-712
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (18X3)
91307-035-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
O-RING, SPECIAL
91311-KS6-700
|
$12.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X32)
96001-06032-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X40)
96001-06040-00
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
