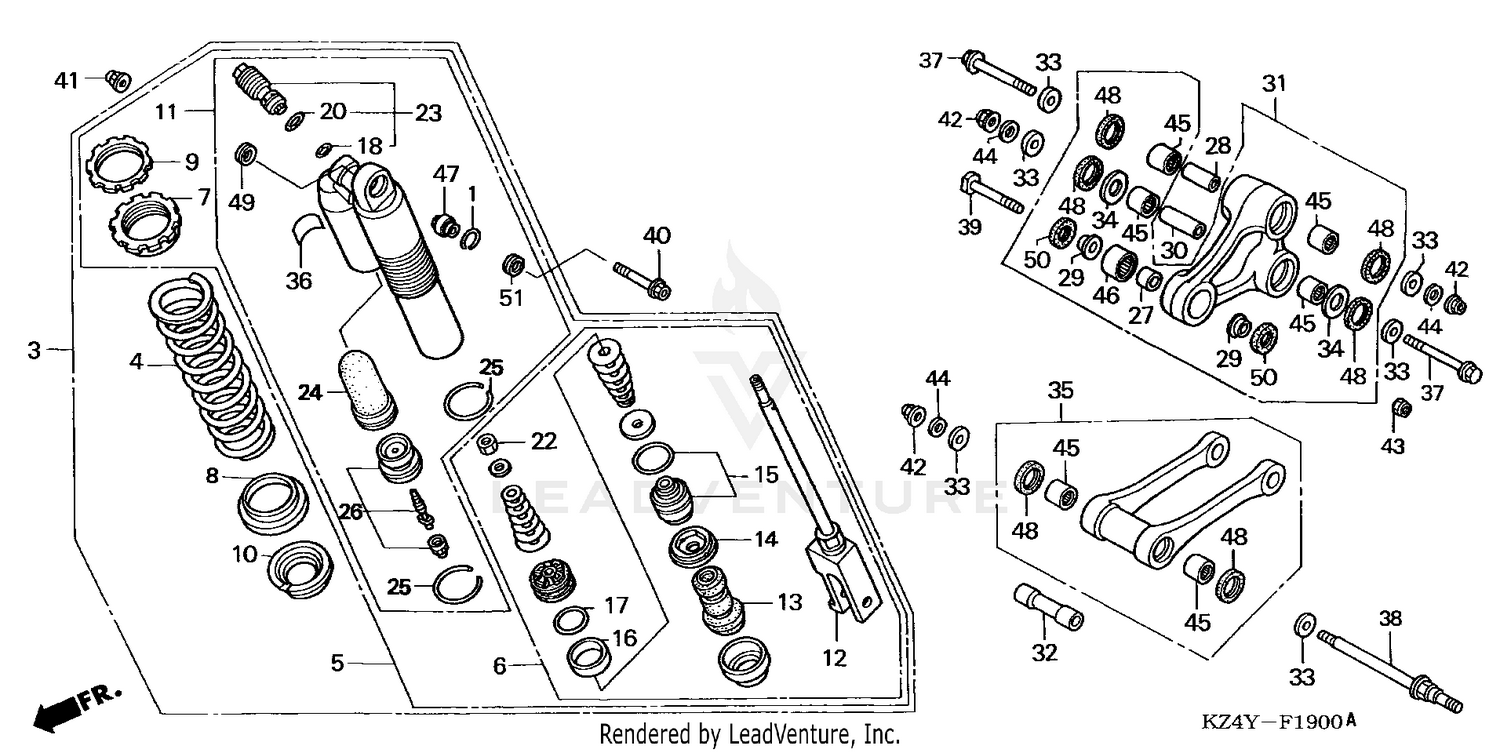

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING, STOPPER
41405-HA7-670
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION ASSY., RR.
52400-KZ4-L11
|
$989.81 | ||
|
Unavailable |
|||
|
#4
SPRING, RR. SHOCK ABSORBER (46N/MM,4.7KGF/MM)
52401-KZ4-J21
|
$177.05 | ||
|
Unavailable |
|||
|
#4
SPRING, RR. SHOCK ABSORBER (4.5KGF/MM)
52402-KZ4-J21
|
$133.27 | ||
|
Unavailable |
|||
|
#4
SPRING, RR. SHOCK ABSORBER (48N/MM,4.9KGF/MM)
52403-KZ4-J21
|
$132.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, RR. SHOCK ABSORBER (50N/MM,5.1KGF/MM)
52404-KZ4-J21
|
$133.27 | ||
|
Unavailable |
|||
|
#4
SPRING, RR. SHOCK ABSORBER (4.7KGF/MM)
52402-KZ3-J31
|
$130.56 | ||
|
Unavailable |
|||
|
#4
SPRING, RR. SHOCK ABSORBER (50N/MM,5.1KGF/MM)
52403-KZ3-J31
|
$115.03 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, RR. SHOCK ABSORBER (52N/MM,5.3KGF/MM)
52404-KZ3-J31
|
$133.92 | ||
|
Unavailable |
|||
|
#5
DAMPER, RR.
52410-KZ4-L11
|
$817.87 | ||
|
Unavailable |
|||
|
#6
ROD, PISTON
52421-KZ4-L11
|
$408.07 | ||
|
Unavailable |
|||
|
#7
SEAT, SPRING (UPPER) (KAYABA)
52422-KS6-701
|
$35.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING SEAT
52422-KZ4-J31
|
$3.78 | ||
|
Unavailable |
|||
|
#9
NUT, ADJUSTER (KAYABA)
52423-KS6-701
|
$27.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAT, SPRING (LOWER)
52424-KZ4-J11
|
$12.71 | ||
|
Unavailable |
|||
|
#11
CASE, RR.
52425-KZ4-L11
|
$743.60 | ||
|
Unavailable |
|||
|
#12
ROD
52426-KZ4-J31
|
$343.57 | ||
|
Unavailable |
|||
|
#13
RUBBER, BUMPER
52427-KZ4-J31
|
$10.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP, CASE
52428-KZ4-901
|
$19.39 | ||
|
Unavailable |
|||
|
#15
CASE, ROD GUIDE
52429-KZ4-901
|
$33.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING, PISTON
52431-MAC-681
|
$16.98 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING (37.5X2.0)
52432-KZ4-901
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (21.5X1.5)
52433-MAC-741
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (25.5X2.0)
52435-MAC-741
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, HEX. (12MM)
52438-KA3-731
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#23
ADJUSTER, COMPRESSION DAMPING FORCE
52440-KZ4-A91
|
$65.46 | ||
|
Unavailable |
|||
|
#24
BLADDER
52451-KZ4-901
|
$28.24 | ||
|
Available to order. Add to View Price |
|||
|
#25
RING, SNAP (KAYABA)
52452-KZ4-003
|
$4.45 | ||
|
Unavailable |
|||
|
#26
CAP, BLADDER
52453-KZ4-003
|
$70.71 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR D, CUSHION
52463-KZ4-B00
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR C, CUSHION ARM
52463-KZ4-J20
|
$5.16 | ||
|
Unavailable |
|||
|
#29
COLLAR D, CUSHION SIDE
52464-KZ4-B00
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR B, CUSHION
52464-KZ4-J20
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#31
ARM SUB-ASSY., CUSHION
52465-KZ4-J30
|
$272.02 | ||
|
Unavailable |
|||
|
#32
COLLAR A, CONNECTING ROD
52473-KZ4-J20
|
$18.45 | ||
|
Available to order. Add to View Price |
|||
|
#33
COLLAR, LINK SIDE
52475-KZ4-J20
|
$8.53 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, THRUST
52476-KZ4-J20
|
$6.51 | ||
|
Available to order. Add to View Price |
|||
|
#35
ROD SUB-ASSY., SHOCK CONNECTING
52479-KZ4-J30
|
$176.57 | ||
|
Unavailable |
|||
|
#36
LABEL, RR. DAMPER WARNING
87516-KZ1-600
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, LINK (12X96)
90130-KZ4-J20
|
$11.76 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, LINK (12X132)
90131-KZ4-J20
|
$9.67 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, CUSHION (LOWER) (10X43.5)
90153-KZ4-710
|
$11.36 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE (10X58)
90182-KA3-730
Superseded by 90153-KK0-000
|
$9.13 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, U (10MM)
90304-GE8-003
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
NUT, HEX. (12MM)
90306-KBP-901
Superseded by 90306-GAB-711
|
$11.04 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT, U (10MM)
90306-KZ4-711
|
$4.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
WASHER, PLAIN (12MM)
90504-SF4-000
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#45
BEARING, NEEDLE (20X26X14)
91053-KZ4-J21
|
$11.44 | ||
|
Available to order. Add to View Price |
|||
|
#46
BEARING, NEEDLE (19X26X15)
91074-KZ4-B01
|
$26.27 | ||
|
Available to order. Add to View Price |
|||
|
#47
BEARING, SPHERICAL (10)
91074-MAC-741
|
$42.44 | ||
|
Available to order. Add to View Price |
|||
|
#48
DUST SEAL (25X32X4)
91262-KZ3-731
|
$9.42 | ||
|
Available to order. Add to View Price |
|||
|
#49
DUST SEAL, RR. CUSHION PIVOT
91351-KZ3-731
|
$6.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
DUST SEAL (17X26X3)
91351-KZ4-B01
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#51
DUST SEAL (16X26X3)
91351-MAC-671
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
