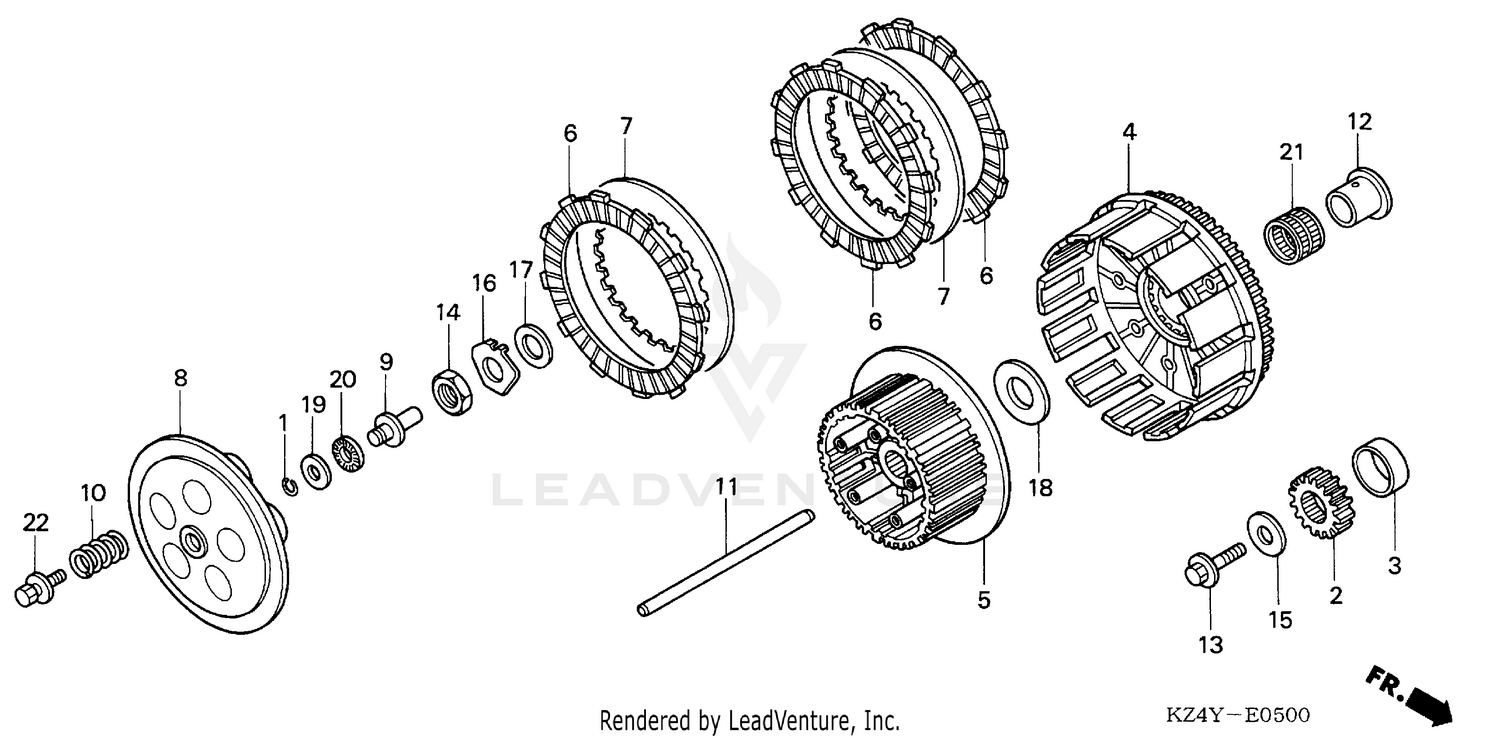

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, PISTON PIN (10MM)
13115-147-000
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, PRIMARY DRIVE
13615-KS6-700
|
$74.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, DRIVE GEAR
13617-KS6-700
|
$37.21 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLUTCH (OUTER)
22100-KZ4-A90
Superseded by 22100-KZ4-L30
|
$330.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
CENTER, CLUTCH
22120-KZ4-A90
Superseded by 22120-KRN-A00
|
$135.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
DISK, CLUTCH FRICTION
22201-KS6-700
|
$21.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH
22321-KA3-710
|
$23.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, CLUTCH PRESSURE
22351-KZ4-A90
Superseded by 22351-KRN-A10
|
$66.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, CLUTCH LIFTER
22352-KZ4-A90
|
$38.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, CLUTCH
22401-KZ4-A90
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#11
ROD, CLUTCH LIFTER
22850-KZ4-A90
|
$19.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, CLUTCH (OUTER)
28237-KZ4-A10
|
$40.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SPECIAL (10X25)
90013-430-000
|
$8.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT (18MM)
90235-KA4-000
|
$13.44 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN (10MM)
90401-ML3-790
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, LOCK (18MM)
90441-HA2-670
Superseded by 90445-KAE-000
|
$6.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, THRUST (18X32)
90456-KA4-000
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, THRUST (20MM)
90456-KS6-000
|
$13.13 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (12MM)
90608-072-000
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, NEEDLE (12MM) (NTN)
91001-147-003
|
$15.25 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, NEEDLE (25X29X22) (TOYO)
91011-KS6-003
|
$38.13 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT-WASHER (6X20)
93404-06020-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
