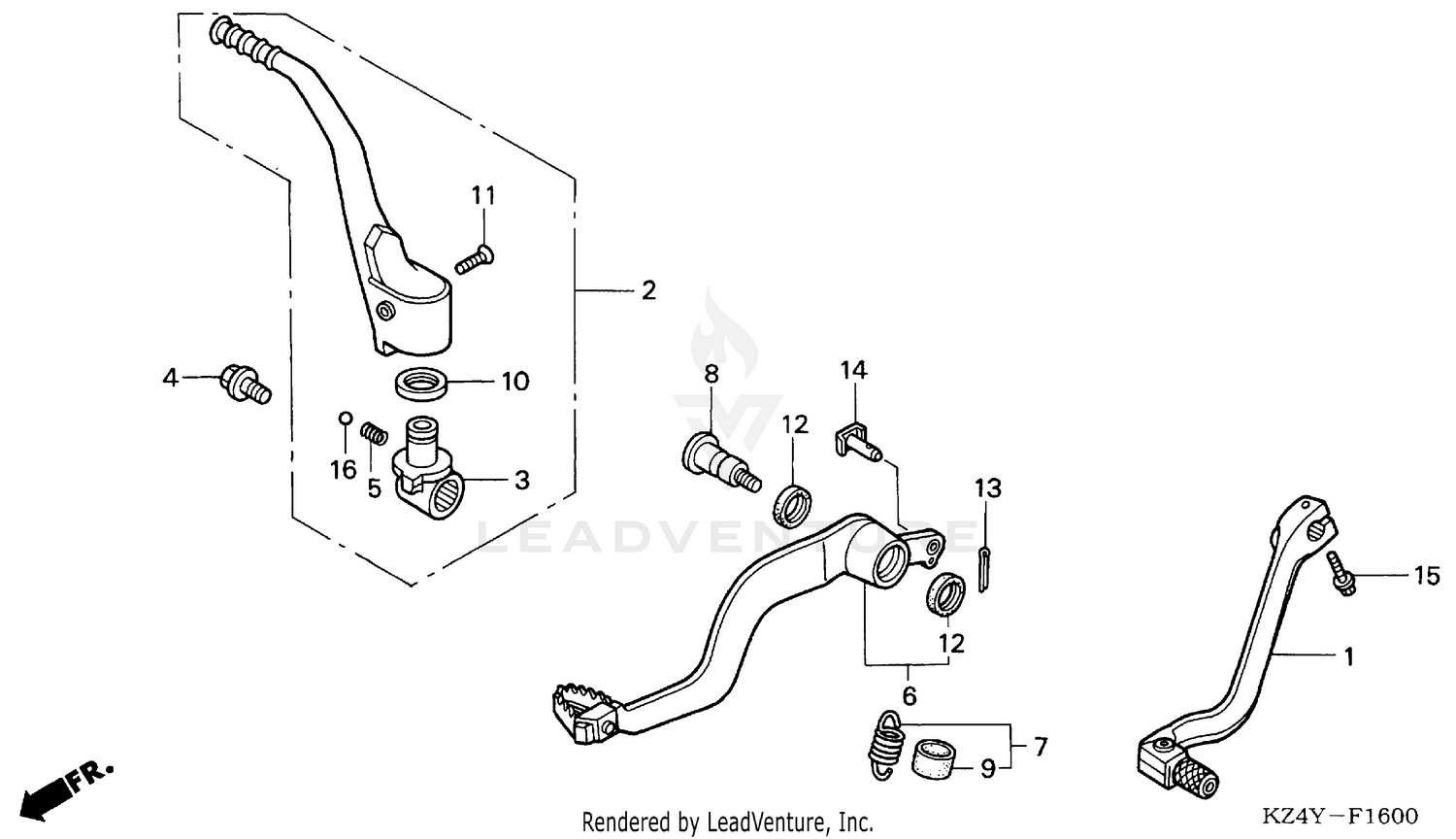

Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, CHANGE
24700-KZ4-J10
|
$63.53 | ||
|
Unavailable |
|||
|
#2
ARM ASSY., KICK STARTER
28300-KZ4-J20
|
$148.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
JOINT, KICK ARM
28302-KZ4-J20
|
$77.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, KICK JOINT
28306-KAE-000
|
$14.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, KICK STARTER
28333-KK0-000
|
$2.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PEDAL, RR. BRAKE
46510-KZ4-J20
|
$90.02 | ||
|
Unavailable |
|||
|
#7
SPRING ASSY., RR. BRAKE RETURN
46511-KZ4-J00
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT, BRAKE PIVOT
46513-KZ4-J20
|
$19.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
TUBE, BRAKE PEDAL SPRING
46515-MN1-670
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
DUST SEAL (17X20X2.5)
46525-KK0-003
|
$6.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, KICK ARM
90101-MAC-680
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#12
DUST SEAL (15X20X2.5)
91251-444-000
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, SPLIT (2.0X12)
94201-20120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PIN D, JOINT
95015-54000
|
$5.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BALL, STEEL (#8) (1/4)
96211-08000
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
