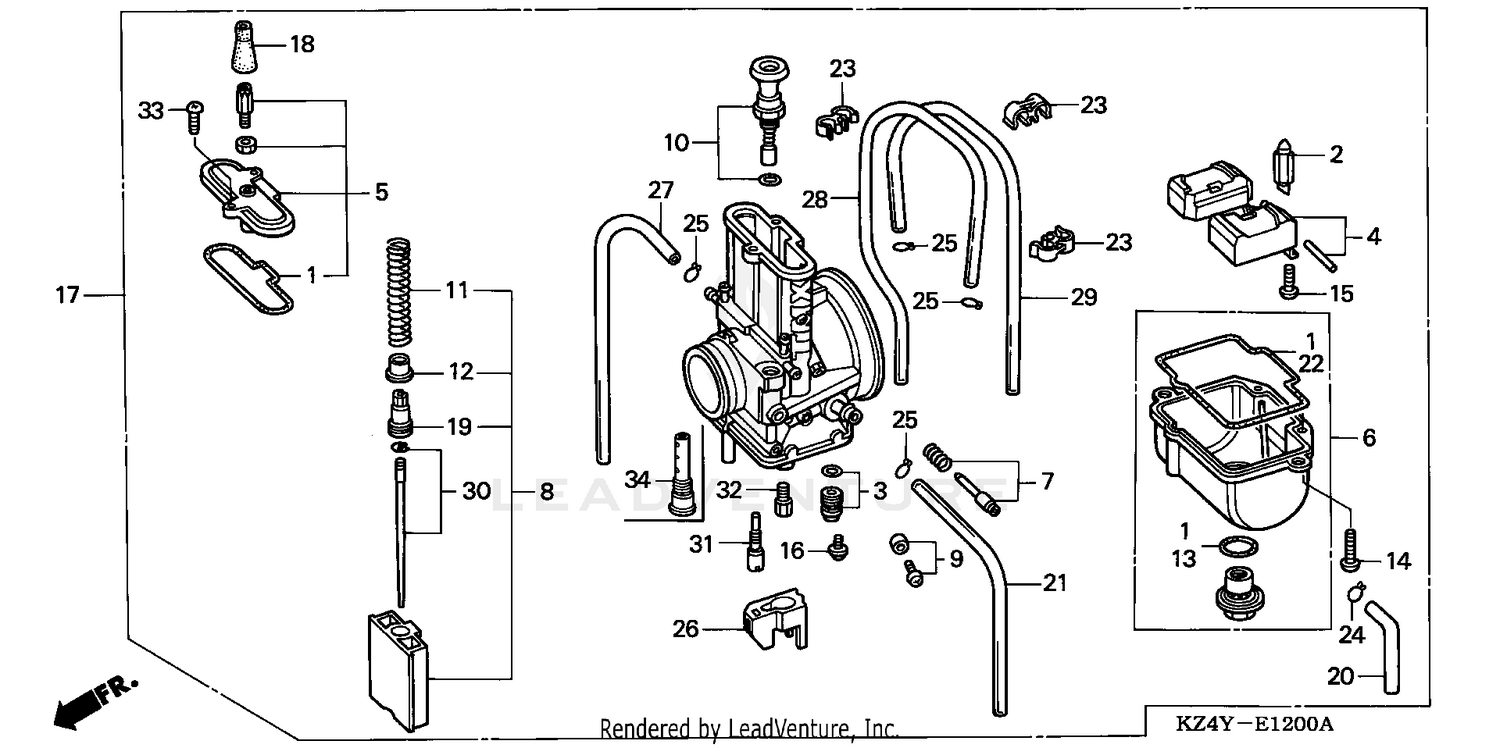

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-KZ4-A92
|
$25.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE, FLOAT
16011-KZ4-A92
|
$51.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE SET, SEAT
16012-KZ4-A92
|
$9.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLOAT SET
16013-KZ4-A92
|
$39.53 | ||
|
Unavailable |
|||
|
#5
TOP SET
16014-KZ4-A92
|
$36.67 | ||
|
Unavailable |
|||
|
#6
CHAMBER SET, FLOAT
16015-KZ4-A92
|
$96.21 | ||
|
Unavailable |
|||
|
#7
SCREW SET A
16016-KZ4-A92
|
$21.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE SET, THROTTLE
16022-KZ4-L12
|
$78.23 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW SET B
16028-KZ4-A92
|
$8.44 | ||
|
Available to order. Add to View Price |
|||
|
#10
VALVE SET, STARTER
16046-KZ4-A92
|
$48.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, COMPRESSION COIL
16050-KZ4-A92
|
$9.12 | ||
|
Unavailable |
|||
|
#12
COLLAR, SPRING SETTING
16066-KZ4-A92
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
16075-KZ4-A92
|
$3.07 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN
16080-KZ4-A92
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN
16081-KZ4-A92
|
$1.17 | ||
|
Unavailable |
|||
|
#16
SCREW
16082-KZ4-A92
|
$1.34 | ||
|
Available to order. Add to View Price |
|||
|
#17
CARBURETOR ASSY. (TMX01B A)
16100-KZ4-L12
|
$289.14 | ||
|
Unavailable |
|||
|
#18
CAP, CABLE SEALING
16118-KZ4-A92
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER, CABLE
16137-KZ4-A92
|
$6.38 | ||
|
Unavailable |
|||
|
#20
TUBE, OVERFLOW
16143-KZ4-A92
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#21
TUBE, AIR VENT
16144-KZ4-A92
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET, FLOAT CHAMBER
16163-KZ4-A92
|
$15.65 | ||
|
Unavailable |
|||
|
#23
BINDER
16179-KZ4-A92
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP, TUBE
16181-KZ4-A92
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, TUBE
16182-KZ4-A92
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE, BUFFER
16185-KZ4-A92
|
$6.75 | ||
|
Unavailable |
|||
|
#27
TUBE, AIR VENT
16197-KZ4-A92
|
$2.15 | ||
|
Unavailable |
|||
|
#28
TUBE, AIR VENT
16198-KZ4-A92
|
$2.23 | ||
|
Unavailable |
|||
|
#29
TUBE, AIR VENT
16199-KZ4-A92
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#30
NEEDLE SET, JET (6BEG20-68)
16204-KZ4-A92
|
$16.07 | ||
|
Unavailable |
|||
|
#31
JET, SLOW (#40) JET, SLOW (#50)
99133-KZ4-0400
|
$14.64 | ||
|
Available to order. Add to View Price |
|||
|
#31
JET, SLOW (#50) JET, SLOW (#55)
99133-KZ4-0500
|
$13.80 | ||
|
Available to order. Add to View Price |
|||
|
#31
JET, SLOW (#45)
99133-KZ4-0450
|
$13.80 | ||
|
Available to order. Add to View Price |
|||
|
#31
JET, SLOW (#30)
99133-KZ3-0300
|
$12.66 | ||
|
Available to order. Add to View Price |
|||
|
#31
JET, SLOW (#35)
99133-KZ3-0350
|
$14.67 | ||
|
Available to order. Add to View Price |
|||
|
#32
JET, MAIN (#380)
99143-KZ4-3800
|
$14.95 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW-WASHER
16083-KZ3-L12
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#34
NOZZLE, MAIN
16165-KZ4-L12
|
$15.47 | ||
|
Unavailable |
|||
