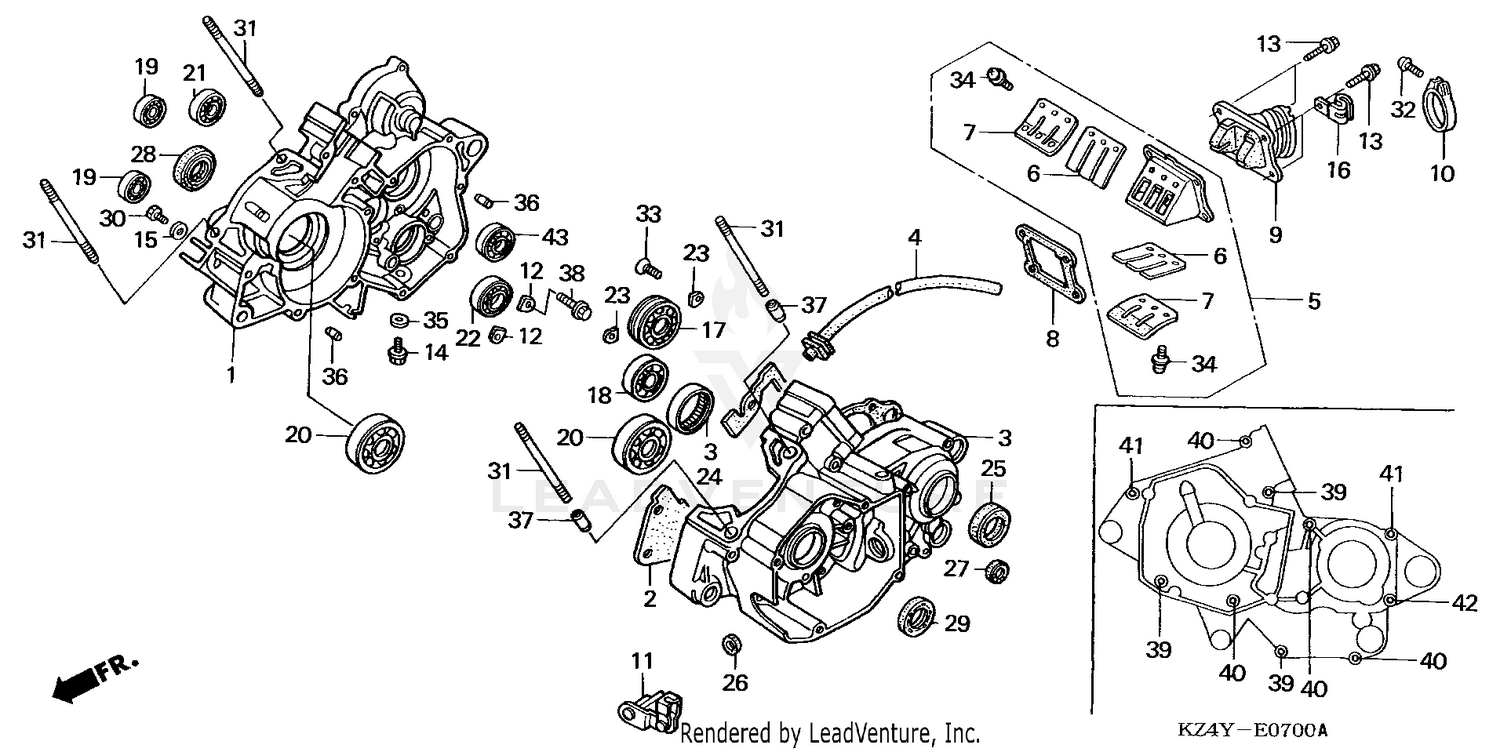

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE, R.
11100-KZ4-L10
|
$313.27 | ||
|
Unavailable |
|||
|
#2
GASKET, CRANKCASE
11191-KZ4-L10
|
$22.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANKCASE, L.
11200-KZ4-L10
|
$343.75 | ||
|
Unavailable |
|||
|
#4
TUBE, BREATHER
11211-ML3-910
|
$10.91 | ||
|
Available to order. Add to View Price |
|||
|
#5
VALVE ASSY., REED
14100-KZ4-L10
Superseded by 14100-KZ4-L11
|
$127.61 | ||
|
Unavailable |
|||
|
#5
VALVE ASSY., REED
14100-KZ4-L11
|
$127.61 | ||
|
Unavailable |
|||
|
#6
REED VALVE ONLY
14111-KZ4-L10
Superseded by 14111-KZ4-L11
|
$45.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
REED VALVE ONLY
14111-KZ4-L11
|
$45.98 | ||
|
Unavailable |
|||
|
#7
STOPPER, REED VALVE
14121-KZ4-L10
Superseded by 14121-KZ4-L11
|
$11.71 | ||
|
Unavailable |
|||
|
#7
STOPPER, REED VALVE
14121-KZ4-L11
|
$11.71 | ||
|
Unavailable |
|||
|
#8
GASKET, REED VALVE
14132-KZ4-620
|
$8.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
INSULATOR, CARBURETOR
16221-KZ4-L10
|
$51.49 | ||
|
Unavailable |
|||
|
#10
BAND, INSULATOR
16223-KA4-740
|
$12.86 | ||
|
Unavailable |
|||
|
#11
LIFTER, CLUTCH
22810-KS6-700
|
$80.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE A, BEARING SETTING
23521-KW3-000
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X22) (NSHF)
90004-GHB-660
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SPECIAL (12MM)
90015-KA3-711
|
$8.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CLIP (4X50)
90601-KJ9-000
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING, BALL (6204)
91001-KA3-711
|
$36.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BEARING, RADIAL BALL (17X35X10)
91001-KZ4-J11
|
$19.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, RADIAL BALL (7X19X6) (TOYO)
91002-KA4-005
Superseded by 91002-KA4-003
|
$26.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (63/22)
91002-KE1-014
Superseded by 91002-KY4-901
|
$29.53 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (63/22)
91002-KY4-901
|
$29.53 | ||
|
Unavailable |
|||
|
#20
BEARING, RADIAL BALL (63/22)
91002-466-008
Superseded by 91002-KY4-901
|
$29.53 | ||
|
Unavailable |
|||
|
#21
BEARING, RADIAL BALL (20X42X11) (KOYO)
91004-KZ4-A11
|
$28.64 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (25X42X9) (TOYO)
91004-GC4-731
|
$33.36 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (25X42X9) (TOYO)
91004-430-003
Superseded by 91004-GC4-731
|
$33.36 | ||
|
Unavailable |
|||
|
#23
PLATE, COUNTERSHAFT BEARING
91012-KA3-710
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, SHELL (33X38X8) (NTN)
91022-KA4-740
|
$21.65 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL (26X37X7) (ARAI)
91201-KS6-004
|
$13.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
OIL SEAL (10X17X4)
91201-VB3-802
Superseded by 91206-VA3-J02
|
$2.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
OIL SEAL (10X17X4)
91202-KA3-711
Superseded by 91206-VA3-J02
|
$2.56 | ||
|
Unavailable |
|||
|
#26
OIL SEAL (10X17X4)
91202-KA3-712
Superseded by 91206-VA3-J02
|
$2.56 | ||
|
Unavailable |
|||
|
#27
OIL SEAL (14X22X5) (NOK)
91203-KA4-771
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
OIL SEAL (14X22X5)
91203-KA4-772
Superseded by 91203-KK3-830
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
OIL SEAL (14X22X5)
91203-KK3-830
|
$4.80 | ||
|
Unavailable |
|||
|
#28
OIL SEAL (30X45X8) (ARAI)
91203-KS6-004
|
$18.51 | ||
|
Available to order. Add to View Price |
|||
|
#29
OIL SEAL (20X32X7) (NOK)
91205-166-004
|
$21.07 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, RECESSED (6X10)
92301-06010-0A
|
$0.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BOLT, STUD (8X35)
92900-08035-3E
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, PAN (5X25)
93500-05025-0A
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, FLAT (6X12)
93600-06012-0A
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW-WASHER (3X8)
93892-03008-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
PIN, DOWEL (10X16)
94301-10160
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, FLANGE (6X45)
96001-06045-00
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE (6X50)
96001-06050-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, FLANGE (6X75)
96001-06075-00
|
$2.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
BOLT, FLANGE (6X85)
96001-06085-00
|
$3.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
BEARING, RADIAL BALL (6003)
96100-60030-00
|
$11.33 | ||
|
Available to order. Add to View Price |
|||
