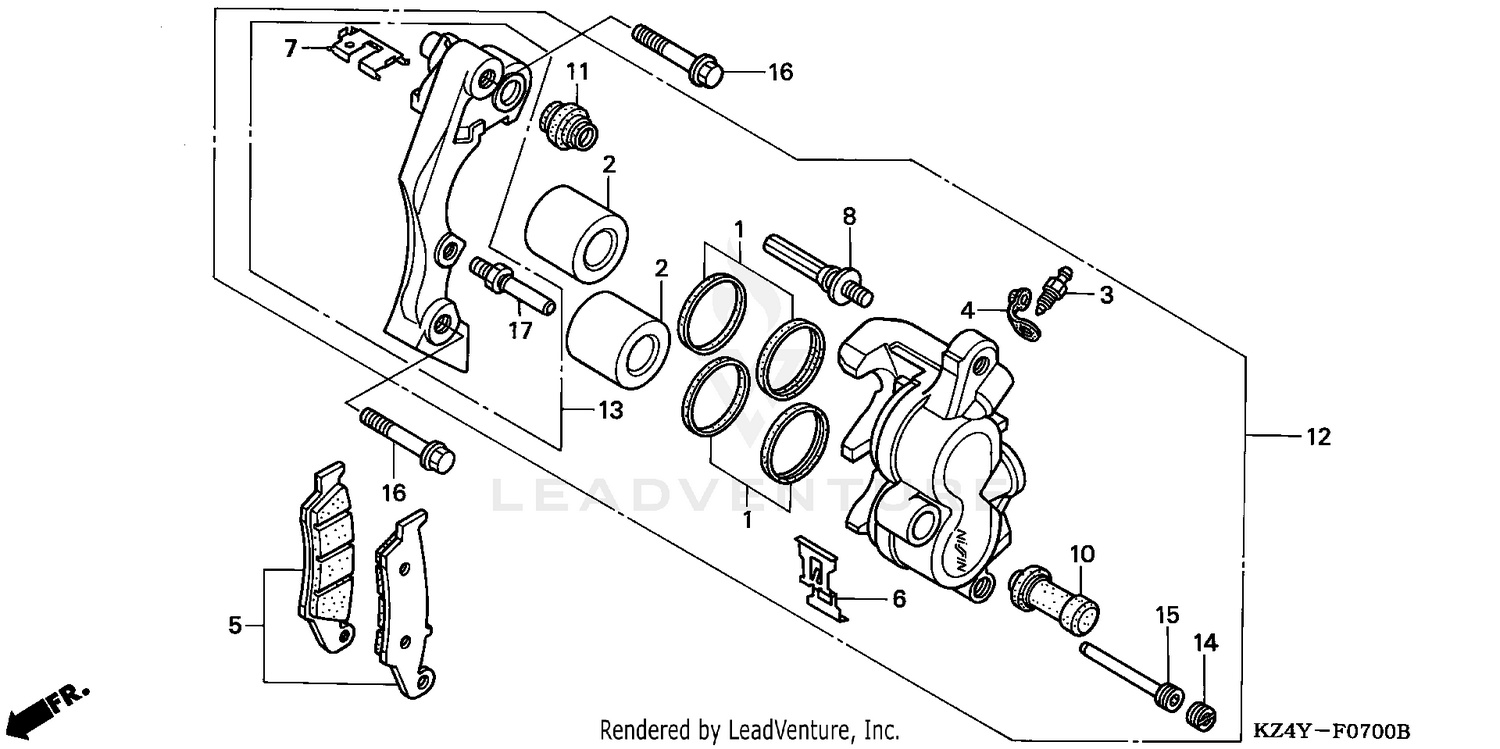

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL SET, PISTON
06431-MA3-405
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON
45107-KZ4-J31
|
$42.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
PAD SET, FR.
45105-MY6-405
Superseded by 45105-MY6-415
|
$55.37 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, PAD
45108-MY1-006
|
$13.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINER
45112-KS6-701
|
$7.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT A, PIN
45131-HA5-672
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOOT, PIN BUSH (NISSIN)
45132-166-016
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOOT B
45133-MA3-006
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)
45150-KZ4-J31
|
$201.13 | ||
|
Unavailable |
|||
|
#13
BRACKET SUB-ASSY., L. FR. CALIPER
45190-KZ4-J21
|
$96.98 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, PIN
45203-MG3-016
|
$6.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PIN, HANGER
45215-HA5-672
|
$12.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (8X40)
90131-MS6-900
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, PIN
45131-MAC-681
|
$16.04 | ||
|
Available to order. Add to View Price |
|||
