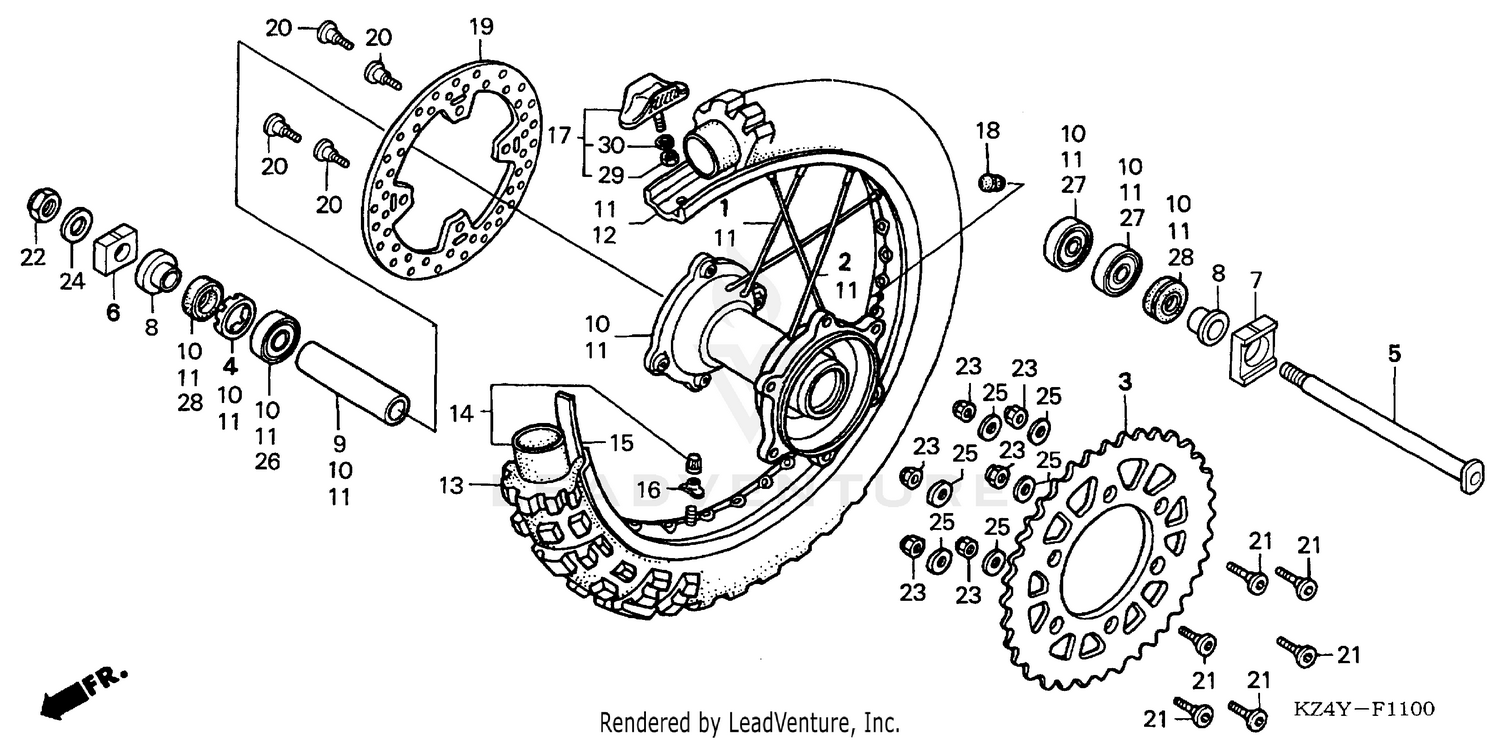

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPOKE SET A, RR. (210.00MM)
06420-KZ4-B00
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPOKE SET B, RR. (207.0MM)
06421-KZ4-B00
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPROCKET, FINAL DRIVEN (51T)
41202-KZ4-J20
Superseded by 41201-MEY-000
|
$132.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPROCKET, FINAL DRIVEN (52T)
41203-KZ4-J30
|
$136.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPROCKET, FINAL DRIVEN (53T)
41204-KZ4-J30
|
$159.51 | ||
|
Available to order. Add to View Price |
|||
|
#4
RETAINER, RR. WHEEL BEARING
41231-KZ4-J20
|
$23.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
AXLE, RR. WHEEL
42301-KZ4-J20
Superseded by 42301-KZ4-J40
|
$63.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
AXLE, RR. WHEEL
42301-KZ4-J40
|
$63.15 | ||
|
Unavailable |
|||
|
#6
COLLAR, R. RR. AXLE
42306-KZ4-J20
|
$23.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
COLLAR, L. RR. AXLE
42305-KZ4-J20
|
$17.82 | ||
|
Unavailable |
|||
|
#8
COLLAR, RR. WHEEL SIDE
42311-KZ4-J20
|
$30.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, RR. WHEEL DISTANCE
42620-KZ4-J20
|
$33.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
HUB SUB-ASSY., RR.
42635-KZ4-J20
|
$350.29 | ||
|
Unavailable |
|||
|
#11
WHEEL SUB-ASSY., RR.
42650-KZ4-J20
|
$679.58 | ||
|
Unavailable |
|||
|
#12
RIM, RR. WHEEL
42701-KZ4-J01
|
$251.79 | ||
|
Unavailable |
|||
|
#13
TIRE, RR. (100/90-19) (57M K695) (DUNLOP)
42711-KZ4-611
|
$105.75 | ||
|
Unavailable |
|||
|
#14
TUBE, TIRE (DUNLOP) (NOT AVAILABLE)
42712-KZ4-611
Superseded by 44712-300-004
|
$74.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE, TIRE (DUNLOP)
44712-300-004
|
$74.75 | ||
|
Unavailable |
|||
|
#15
FLAP, TIRE (DUNLOP)
42713-KZ4-611
Superseded by 42713-KZ3-611
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
FLAP, TIRE (DUNLOP)
44713-300-004
Superseded by 42713-KZ3-611
|
$7.42 | ||
|
Unavailable |
|||
|
#16
CAP, VALVE
42714-KA3-710
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#17
STOPPER, BEAD (1.85)
42715-KA2-680
|
$39.11 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP, RIM HOLE
42717-329-000
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#19
DISK, RR. BRAKE
43351-KZ3-B00
|
$204.37 | ||
|
Unavailable |
|||
|
#20
BOLT, DISK (8X22)
90105-MK5-010
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, FLAT (8X31)
90125-KA4-000
|
$3.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
NUT, U (22MM)
90305-KZ4-J20
|
$10.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, U (8MM)
90309-ML3-791
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER (22X35X2)
90401-KZ4-J20
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER (8MM)
90465-MC4-000
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING, RADIAL BALL (69052RS)
91051-KZ4-J21
|
$22.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BEARING, RADIAL BALL (6905RS)
91052-KZ4-J21
|
$21.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
DUST SEAL (32X43X7)
91251-KZ4-J21
|
$6.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
