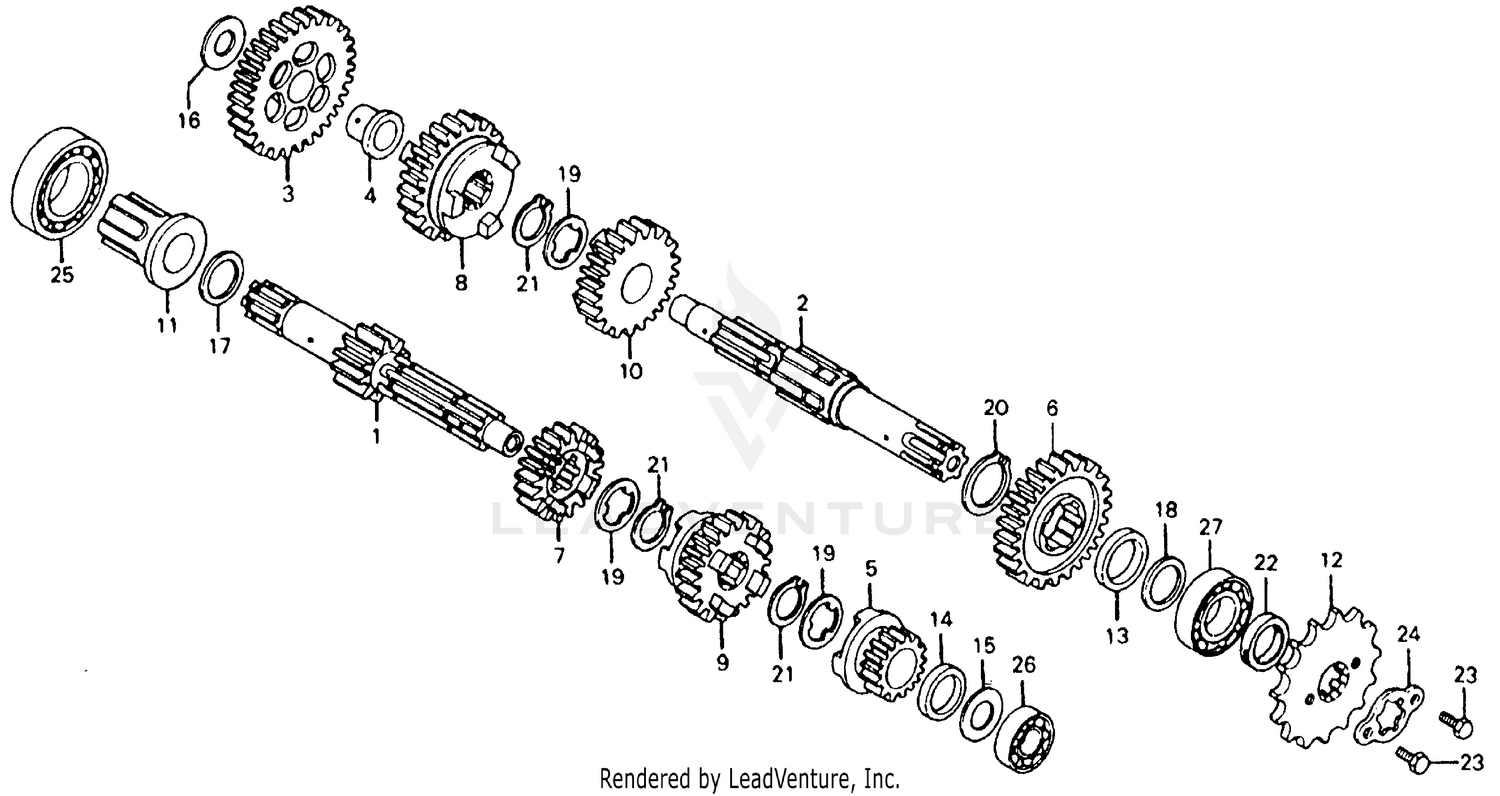

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT, TRANSMISSION (13T) (NOT AVAILABLE)
23211-402-000
|
$58.60 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)
23221-402-010
|
$75.81 | ||
|
Unavailable |
|||
|
#3
GEAR, COUNTERSHAFT LOW (36T) (NOT AVAILABLE)
23426-402-010
|
$78.25 | ||
|
Unavailable |
|||
|
#4
BUSH (16.5MM)
23427-402-010
|
$14.82 | ||
|
Unavailable |
|||
|
#5
GEAR, MAINSHAFT SECOND (18T)
23441-397-000
|
$46.62 | ||
|
Unavailable |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (31T) (NOT AVAILABLE)
23451-397-000
|
$47.22 | ||
|
Unavailable |
|||
|
#7
GEAR, MAINSHAFT THIRD (22T)
23461-KCS-650
|
$51.83 | ||
|
Unavailable |
|||
|
#7
GEAR, MAINSHAFT THIRD (22T)
23461-397-000
Superseded by 23461-KCS-650
|
$51.83 | ||
|
Unavailable |
|||
|
#7
GEAR, MAINSHAFT THIRD (22T)
23461-397-010
Superseded by 23461-KCS-650
|
$51.83 | ||
|
Unavailable |
|||
|
#8
GEAR, COUNTERSHAFT THIRD (28T)
23471-KCS-650
|
$70.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, COUNTERSHAFT THIRD (28T)
23471-397-000
Superseded by 23471-KCS-650
|
$70.53 | ||
|
Unavailable |
|||
|
#8
GEAR, COUNTERSHAFT THIRD (28T)
23471-397-010
Superseded by 23471-KCS-650
|
$70.53 | ||
|
Unavailable |
|||
|
#9
GEAR, MAINSHAFT FOURTH (25T)
23481-402-000
|
$69.17 | ||
|
Unavailable |
|||
|
#10
GEAR, COUNTERSHAFT FOURTH (25T)
23491-KCS-650
|
$51.69 | ||
|
Unavailable |
|||
|
#10
GEAR, COUNTERSHAFT FOURTH (25T)
23491-397-000
Superseded by 23491-KCS-650
|
$51.69 | ||
|
Unavailable |
|||
|
#10
GEAR, COUNTERSHAFT FOURTH (25T)
23491-419-000
Superseded by 23491-KCS-650
|
$51.69 | ||
|
Unavailable |
|||
|
#11
COLLAR, MAINSHAFT LOW GEAR SIDE (NOT AVAILABLE)
23520-402-000
|
$87.81 | ||
|
Unavailable |
|||
|
#12
SPROCKET, DRIVE (15T)
23801-KC6-000
|
$29.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPROCKET, DRIVE (15T)
23801-324-000
Superseded by 23801-KC6-000
|
$29.47 | ||
|
Unavailable |
|||
|
#12
SPROCKET, DRIVE (15T)
23801-330-000
Superseded by 23801-KC6-000
|
$29.47 | ||
|
Unavailable |
|||
|
#13
COLLAR A, GEAR (NOT AVAILABLE)
23911-397-000
|
$4.73 | ||
|
Unavailable |
|||
|
#14
COLLAR B, GEAR (NOT AVAILABLE)
23912-397-000
|
$4.73 | ||
|
Unavailable |
|||
|
#15
WASHER, THRUST (15MM)
90451-107-000
|
$1.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER, THRUST (15MM)
90451-365-000
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER A, THRUST (20MM)
90453-107-000
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, THRUST (20MM)
90454-107-000
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER A, SPLINE (20MM)
90455-107-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP (25MM)
90601-107-000
|
$4.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SET-RING (20MM)
90605-200-000
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL (20X34X7) (ARAI)
91201-030-003
Superseded by 91201-030-033
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL (20X34X7) (ARAI)
91201-030-013
Superseded by 91201-030-033
|
$6.95 | ||
|
Unavailable |
|||
|
#22
OIL SEAL (20X34X7)
91201-030-015
|
|||
|
Unavailable |
|||
|
#22
OIL SEAL (20X34X7) (ARAI)
91201-030-023
Superseded by 91201-030-033
|
$6.95 | ||
|
Unavailable |
|||
|
#22
OIL SEAL (20X34X7) (ARAI)
91201-030-025
Superseded by 91201-030-033
|
$6.95 | ||
|
Unavailable |
|||
|
#22
OIL SEAL (20X34X7) (ARAI)
91201-030-033
|
$6.95 | ||
|
Unavailable |
|||
|
#23
BOLT, HEX. (6X10)
92000-06010
Superseded by 92101-06010-0A
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEX. (6X10)
92101-06010-0A
|
$1.47 | ||
|
Unavailable |
|||
|
#24
PLATE B, FIXING
95014-92100
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, RADIAL BALL (6006)
96100-60060
Superseded by 96100-60060-00
|
$15.91 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BEARING, RADIAL BALL (6006)
96100-60060-00
|
$15.91 | ||
|
Unavailable |
|||
|
#26
BEARING, RADIAL BALL (6202Z) (SOURCE: VINTAGE PARTS INC.)
96120-62020
Superseded by 96120-62020-10
|
$10.92 | ||
|
Unavailable |
|||
|
#26
BEARING, RADIAL BALL (6202Z) (SOURCE: VINTAGE PARTS INC.)
96120-62020-10
|
$10.92 | ||
|
Unavailable |
|||
|
#27
BEARING, RADIAL BALL (6204U)
96140-62040-10
|
$26.45 | ||
|
Available to order. Add to View Price |
|||
