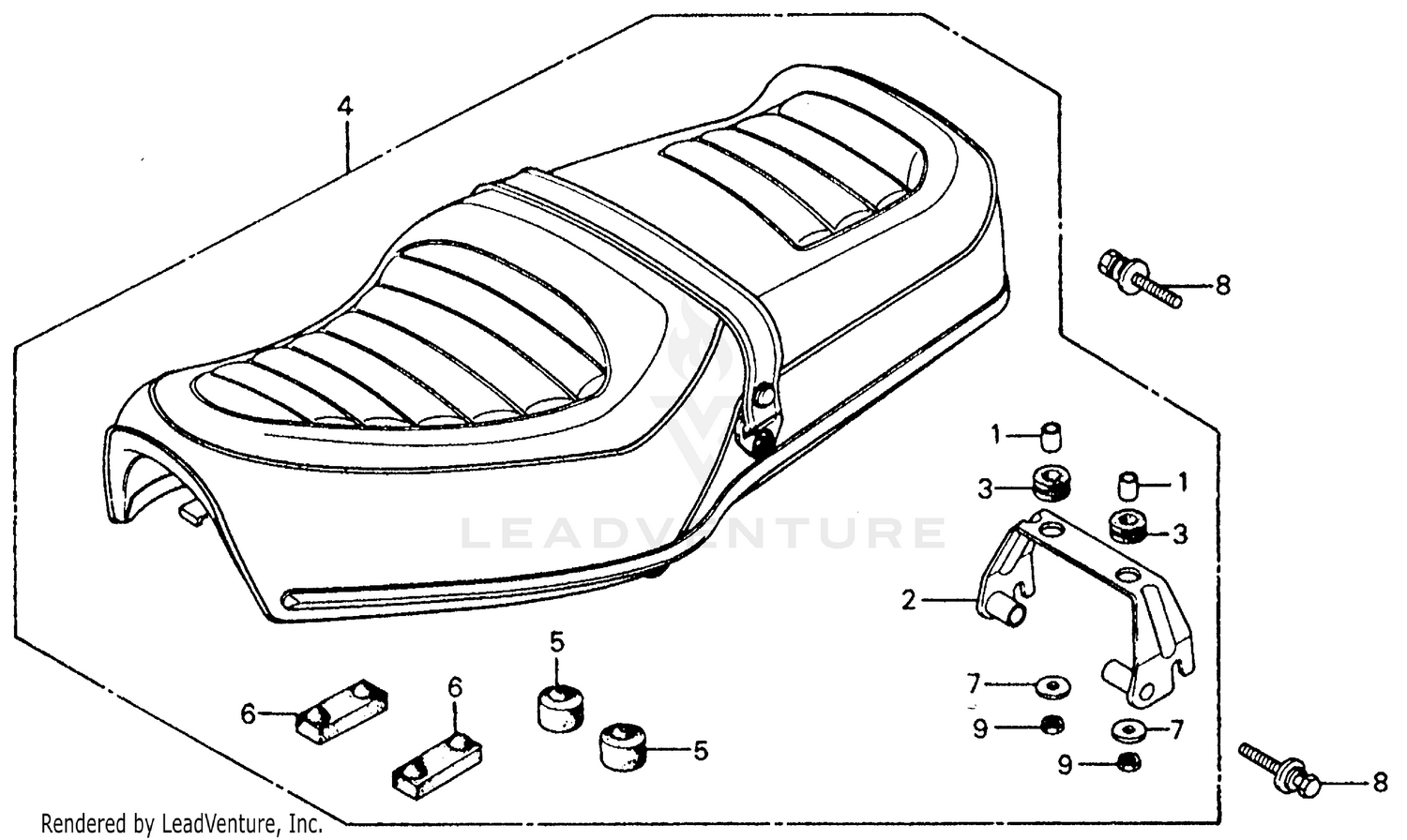

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, RR. TURN SIGNAL STAY
33603-053-650
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, RR. CROSS
50127-419-000
|
$30.28 | ||
|
Unavailable |
|||
|
#3
RUBBER, FR. FENDER SETTING
61103-357-000
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAT (NOT AVAILABLE)
77200-419-000
|
$426.46 | ||
|
Unavailable |
|||
|
#5
RUBBER, SEAT CUSHION
77201-074-000
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER B, SEAT SETTING
77205-286-000
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER B, SEAT SETTING
77205-292-010
Superseded by 77205-286-000
|
$6.64 | ||
|
Unavailable |
|||
|
#7
WASHER, WHEEL (6MM)
90563-355-000
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT-WASHER (8X40) (NOT AVAILABLE)
93483-08040-00
|
$0.92 | ||
|
Unavailable |
|||
|
#9
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#9
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#9
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#9
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#9
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#9
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
