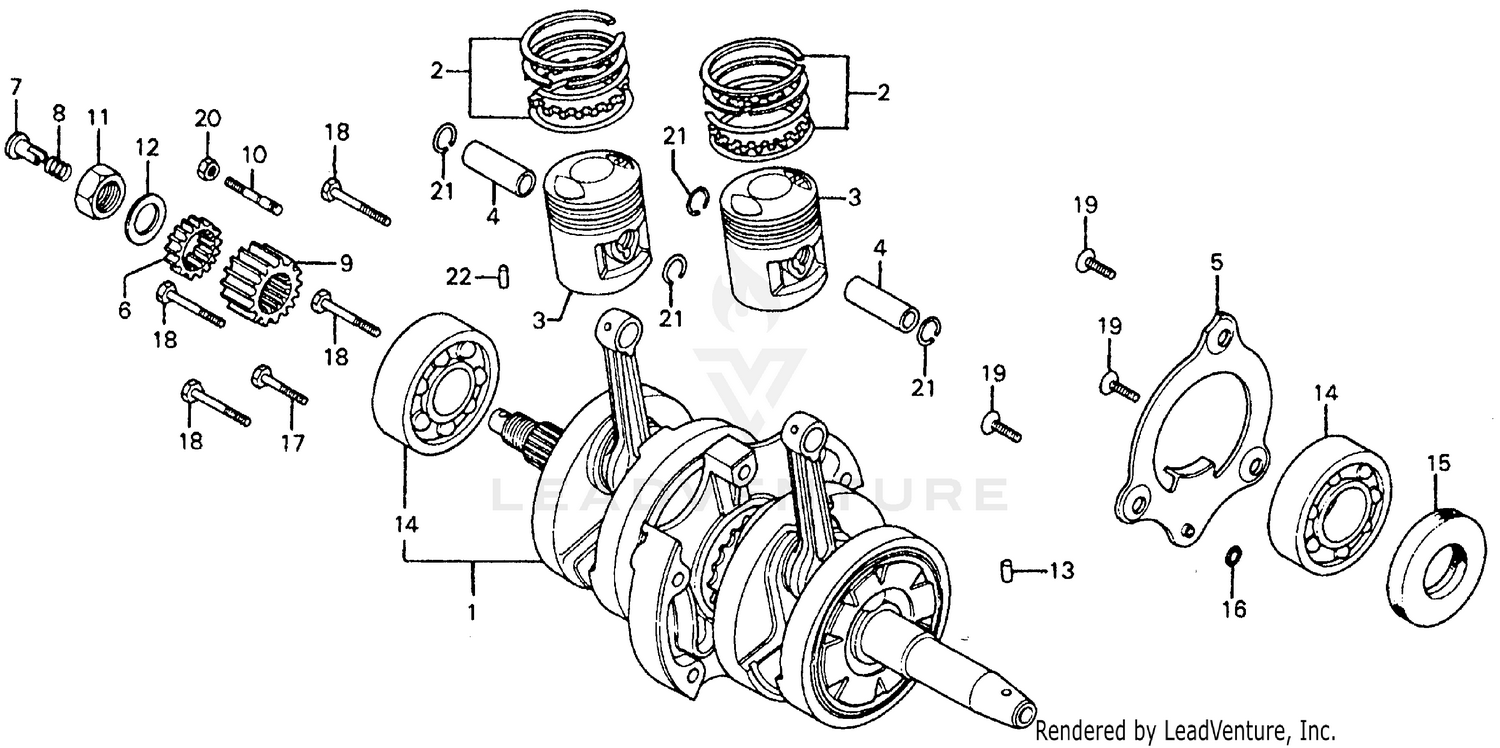

Crankshaft + Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT (NOT AVAILABLE)
13000-418-000
|
$926.61 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON
13011-KB4-305
|
$49.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, PISTON
13011-418-003
Superseded by 13011-KB4-305
|
$49.33 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON
13011-436-000
Superseded by 13011-KB4-305
|
$49.33 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (OS 0.25)
13012-KB4-305
|
$38.70 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (OS 0.25)
13012-418-003
Superseded by 13012-KB4-305
|
$38.70 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (OS 0.25)
13012-418-005
Superseded by 13012-KB4-305
|
$38.70 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (OS 0.50)
13013-KB4-305
|
$41.47 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (OS 0.50)
13013-418-003
Superseded by 13013-KB4-305
|
$41.47 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (0.75)
13014-KB4-305
|
$36.33 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (OS 0.75)
13014-418-003
Superseded by 13014-KB4-305
|
$36.33 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (1.00)
13015-KB4-305
|
$37.57 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (1.00)
13015-418-003
Superseded by 13015-KB4-305
|
$37.57 | ||
|
Unavailable |
|||
|
#3
PISTON (STD) (NOT AVAILABLE)
13101-418-000
|
$37.40 | ||
|
Unavailable |
|||
|
#3
PISTON (OS 0.25) (NOT AVAILABLE)
13102-418-000
|
$83.06 | ||
|
Unavailable |
|||
|
#3
PISTON (OS 0.50) (NOT AVAILABLE)
13103-418-000
|
$83.06 | ||
|
Unavailable |
|||
|
#3
PISTON (0.75) (NOT AVAILABLE)
13104-418-000
|
$40.83 | ||
|
Unavailable |
|||
|
#3
PISTON (1.00) (NOT AVAILABLE)
13105-418-000
|
$83.08 | ||
|
Unavailable |
|||
|
#4
PIN, PISTON
13111-028-000
|
$13.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, OIL THROUGH (NOT AVAILABLE)
13385-399-000
|
$18.54 | ||
|
Unavailable |
|||
|
#6
GEAR B, OIL PUMP DRIVE (19T) (NOT AVAILABLE)
15335-399-000
|
$32.36 | ||
|
Unavailable |
|||
|
#7
THROUGH, OIL
15441-149-000
|
$12.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, OIL THROUGH
15447-149-000
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, PRIMARY DRIVE (18T) (NOT AVAILABLE)
23121-399-000
|
$35.37 | ||
|
Unavailable |
|||
|
#10
BOLT, STUD (7X32)
90035-399-000
|
$3.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
NUT, HUB (16MM)
90202-567-000
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, LOCK
90401-399-000
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, DOWEL (4X4.4)
90703-399-000
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING, RADIAL BALL (6305) (NACHI) (NOT AVAILABLE)
91001-399-003
|
$37.71 | ||
|
Unavailable |
|||
|
#15
OIL SEAL (35X52X7) (NOK)
91201-402-005
Superseded by 91201-402-015
|
$16.71 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL (35X52X7)
91201-402-015
|
$16.71 | ||
|
Unavailable |
|||
|
#16
O-RING (6X3)
91319-323-000
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEX. (6X28)
92000-06028
Superseded by 92101-06028-0A
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEX. (6X28)
92100-06028
Superseded by 92101-06028-0A
|
$1.33 | ||
|
Unavailable |
|||
|
#17
BOLT, HEX. (6X28)
92101-06028-0A
|
$1.33 | ||
|
Unavailable |
|||
|
#18
BOLT, HEX. (6X32)
92000-06032
Superseded by 92101-06032-0A
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEX. (6X32)
92000-06032-0A
Superseded by 92101-06032-0A
|
$1.80 | ||
|
Unavailable |
|||
|
#18
BOLT, HEX. (6X32)
92100-06032
Superseded by 92101-06032-0A
|
$1.80 | ||
|
Unavailable |
|||
|
#18
BOLT, HEX. (6X32)
92101-06032-0A
|
$1.80 | ||
|
Unavailable |
|||
|
#19
SCREW, FLAT (6X16)
93600-06016
Superseded by 93600-06016-0A
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, FLAT (6X16)
93600-06016-0A
|
$1.03 | ||
|
Unavailable |
|||
|
#20
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#20
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#20
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#20
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#20
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#20
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#21
CLIP, PISTON PIN (14MM)
94601-14000
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#22
ROLLER (2X13.8)
96220-20138
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
