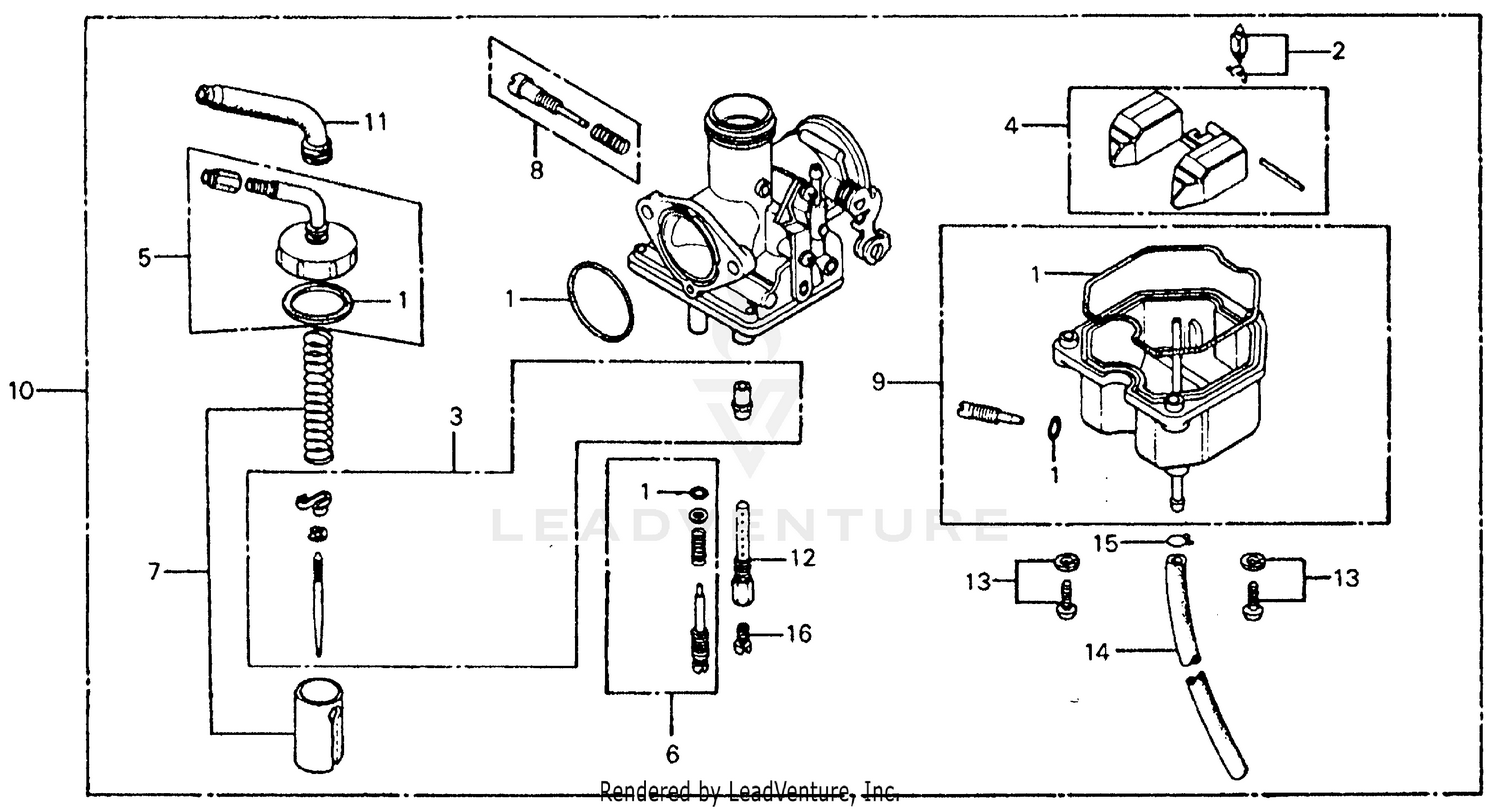

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-364-770
Superseded by 16010-439-305
|
$25.51 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET SET
16010-439-305
|
$25.51 | ||
|
Unavailable |
|||
|
#2
VALVE SET, FLOAT
16011-KG0-004
Superseded by 16011-KCK-910
|
$40.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
VALVE SET, FLOAT
16011-382-004
Superseded by 16011-KCK-910
|
$40.98 | ||
|
Unavailable |
|||
|
#2
VALVE SET, FLOAT
16011-393-004
Superseded by 16011-KCK-910
|
$40.98 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (NOT AVAILABLE)
16012-419-004
|
$16.77 | ||
|
Unavailable |
|||
|
#4
FLOAT SET
16013-KCY-670
|
$73.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLOAT SET
16013-393-004
Superseded by 16013-KCY-670
|
$73.45 | ||
|
Unavailable |
|||
|
#5
TOP SET
16014-418-004
Superseded by 16014-943-801
|
$26.61 | ||
|
Unavailable |
|||
|
#5
TOP SET
16014-943-801
|
$26.61 | ||
|
Unavailable |
|||
|
#6
SCREW SET A
16016-410-601
|
$19.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
VALVE SET, THROTTLE
16022-418-004
Superseded by 16022-437-722
|
$57.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
VALVE SET, THROTTLE
16022-437-722
|
$57.42 | ||
|
Unavailable |
|||
|
#8
SCREW SET B
16028-402-004
Superseded by 16028-KB1-D11
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
CHAMBER SET, FLOAT
16015-KFC-910
|
$127.78 | ||
|
Unavailable |
|||
|
#9
CHAMBER SET, FLOAT
16015-384-601
Superseded by 16015-KFC-910
|
$127.78 | ||
|
Unavailable |
|||
|
#9
CHAMBER SET, FLOAT
16045-393-004
Superseded by 16015-KFC-910
|
$127.78 | ||
|
Unavailable |
|||
|
#10
CARBURETOR ASSY. (NOT AVAILABLE)
16100-419-014
Superseded by 16100-419-024
|
$291.44 | ||
|
Unavailable |
|||
|
#10
CARBURETOR ASSY. (NOT AVAILABLE)
16100-419-024
|
$291.44 | ||
|
Unavailable |
|||
|
#11
CAP, CABLE SEALING
16118-121-004
Superseded by 16118-121-014
|
$7.32 | ||
|
Unavailable |
|||
|
#11
CAP, CABLE SEALING
16118-121-014
|
$7.32 | ||
|
Unavailable |
|||
|
#12
HOLDER, NEEDLE JET (NOT AVAILABLE)
16165-419-004
|
$11.69 | ||
|
Unavailable |
|||
|
#13
SCREW-WASHER (4X16)
93892-04016-08
|
$0.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BULK HOSE, FUEL (3.5X3000) (3.5X330)
95001-35003-60M
|
$25.27 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP, TUBE (B7)
95002-02070
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
JET, MAIN (#105)
99101-GHB-1050
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#16
JET, MAIN (#105)
99101-393-1050
Superseded by 99101-GHB-1050
|
$8.04 | ||
|
Unavailable |
|||
