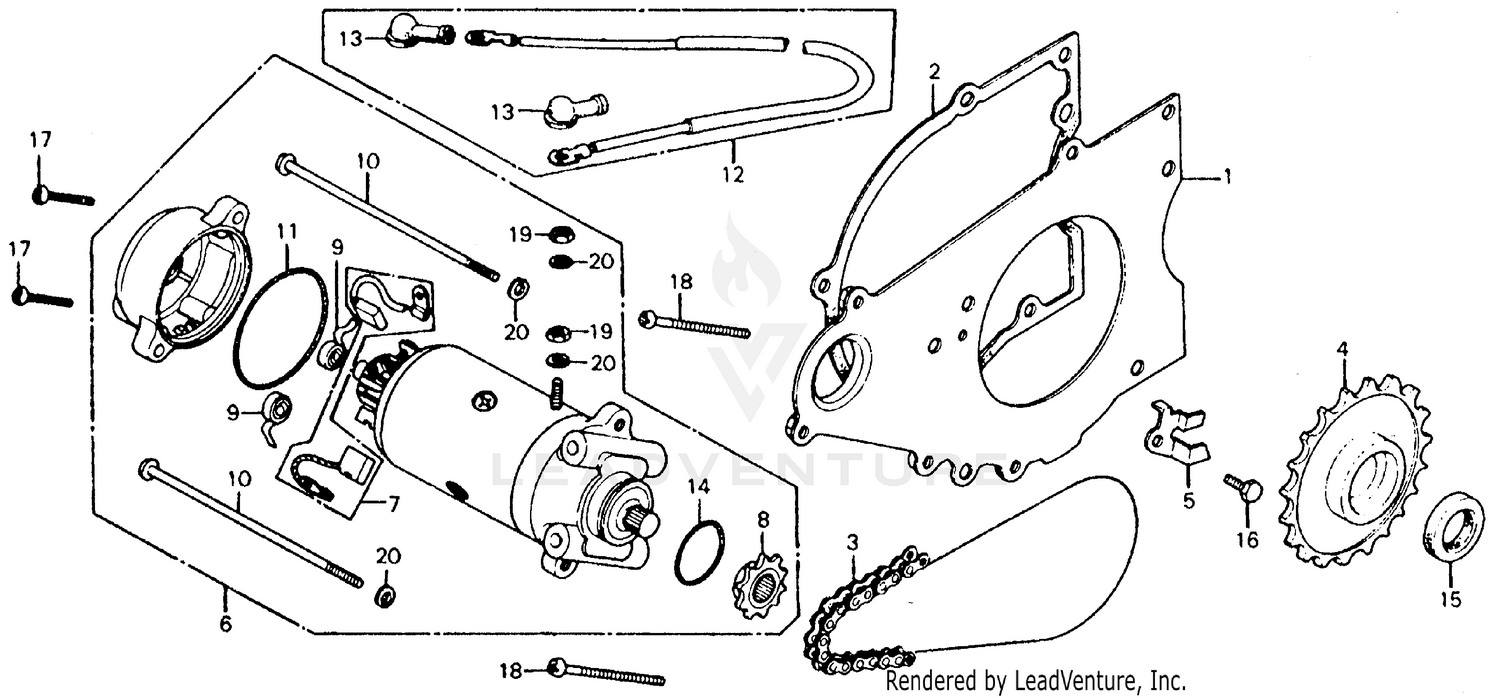

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPACER, L. SIDE (NOT AVAILABLE)
11371-402-000
|
$53.48 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, L.
11394-KBG-771
Superseded by 11394-KBG-773
|
$16.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, L.
11394-399-000
Superseded by 11394-KBG-773
|
$16.11 | ||
|
Unavailable |
|||
|
#2
GASKET, L.
11394-399-306
Superseded by 11394-KBG-773
|
$16.11 | ||
|
Unavailable |
|||
|
#3
CHAIN, STARTER (DID219-54L) (DAIDO)
28101-402-003
|
$38.83 | ||
|
Unavailable |
|||
|
#4
SPROCKET, STARTING (35T)
28110-402-000
|
$84.40 | ||
|
Unavailable |
|||
|
#5
PLATE, STARTING SPROCKET SETTING
28117-402-000
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
MOTOR ASSY,START
31200-402-008
Superseded by 31200-402-405
|
$360.28 | ||
|
Unavailable |
|||
|
#7
BRUSH, STARTER MOTOR
31201-225-154
|
$12.56 | ||
|
Unavailable |
|||
|
#8
SPROCKET, STARTER MOTOR
31202-216-154
|
$57.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, BRUSH
31204-230-174
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, STARTER COVER (NOT AVAILABLE)
31205-402-008
|
$2.13 | ||
|
Unavailable |
|||
|
#11
O-RING (60X1.4)
31206-402-008
|
$5.78 | ||
|
Unavailable |
|||
|
#12
CABLE, STARTER MOTOR (NOT AVAILABLE)
32402-304-000
|
$29.57 | ||
|
Unavailable |
|||
|
#13
COVER, STARTER MOTOR TERMINAL
32411-230-000
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING, PINION CAP
53438-611-000
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL (22X31X5) (ARAI)
91202-402-003
Superseded by 91205-965-003
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL (22X31X5) (ARAI)
91202-402-005
Superseded by 91205-965-003
|
$7.29 | ||
|
Unavailable |
|||
|
#15
OIL SEAL (22X31X5) (ARAI)
91205-965-003
|
$7.29 | ||
|
Unavailable |
|||
|
#16
BOLT, HEX. (6X10)
92000-06010
Superseded by 92101-06010-0A
|
$1.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, HEX. (6X10)
92000-06010-0A
Superseded by 92101-06010-0A
|
$1.47 | ||
|
Unavailable |
|||
|
#16
BOLT, HEX. (6X10)
92000-06010-1W
Superseded by 92101-06010-0A
|
$1.47 | ||
|
Unavailable |
|||
|
#16
BOLT, HEX. (6X10)
92100-06010
Superseded by 92101-06010-0A
|
$1.47 | ||
|
Unavailable |
|||
|
#16
BOLT, HEX. (6X10)
92101-06010-0A
|
$1.47 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN (6X25)
93500-06025
Superseded by 93500-06025-0A
|
$1.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCREW, PAN (6X65)
93500-06065
Superseded by 93500-06065-0A
|
$1.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCREW, PAN (6X65)
93500-06065-0A
|
$1.68 | ||
|
Unavailable |
|||
|
#19
NUT, HEX. (6MM)
94002-06000
Superseded by 94002-06000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, HEX. (6MM)
94002-06000-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#20
WASHER, SPRING (6MM)
94111-06000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
