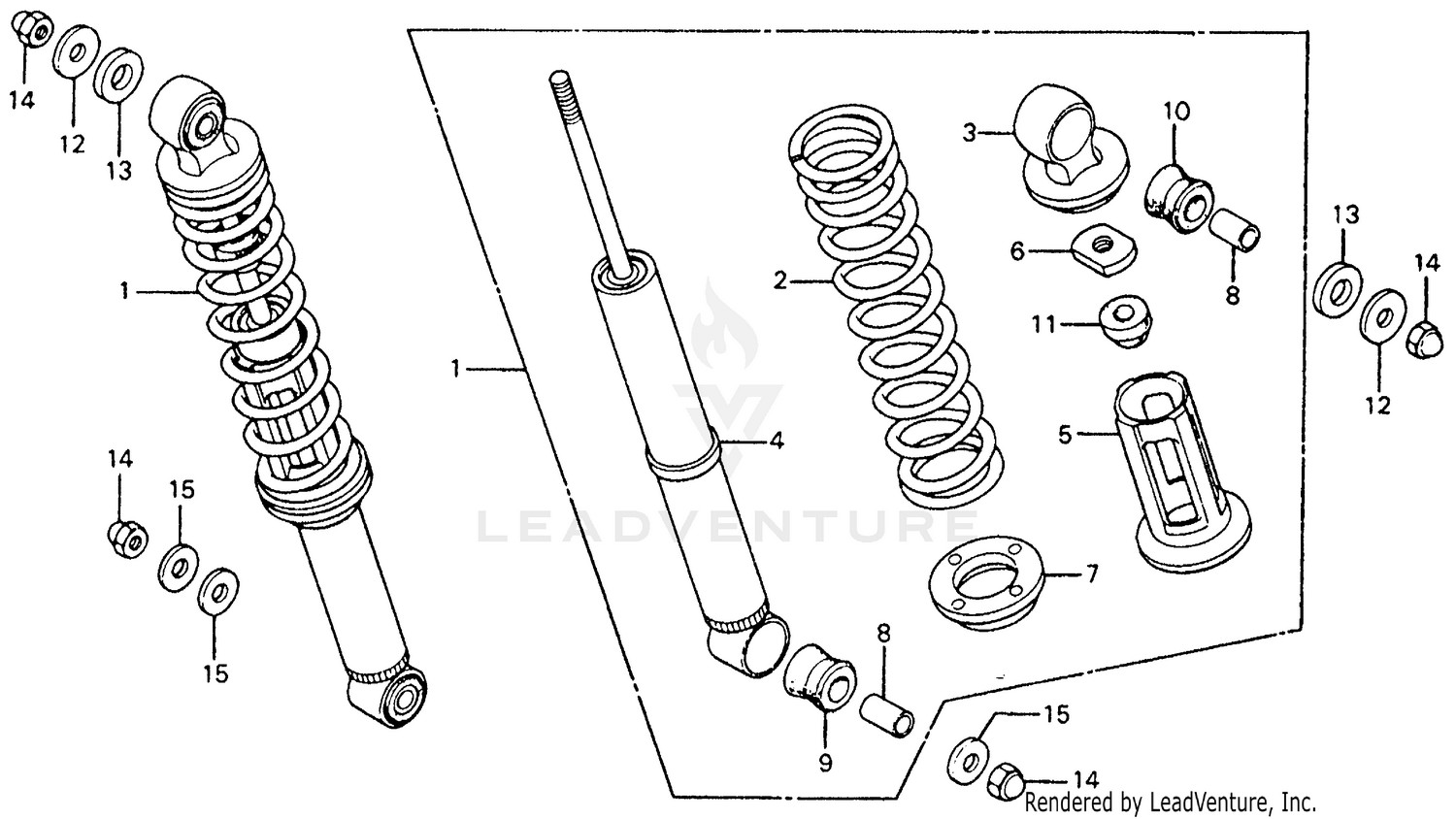

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION ASSY., RR. (NOT AVAILABLE)
52400-419-013
Superseded by 52400-465-013
|
$155.02 | ||
|
Unavailable |
|||
|
#2
SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)
52401-419-000
|
$37.65 | ||
|
Unavailable |
|||
|
#3
JOINT (UPPER) (NOT AVAILABLE)
52403-153-003
|
$13.07 | ||
|
Unavailable |
|||
|
#4
DAMPER, RR. (SHOWA) (NOT AVAILABLE)
52410-419-013
Superseded by 52410-419-023
|
$113.79 | ||
|
Unavailable |
|||
|
#4
DAMPER, RR. (SHOWA) (NOT AVAILABLE)
52410-419-023
|
$113.79 | ||
|
Unavailable |
|||
|
#5
GUIDE, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE)
52458-369-000
|
$6.79 | ||
|
Unavailable |
|||
|
#6
NUT, LOCK (9MM) (SHOWA) (NOT AVAILABLE)
52482-153-003
|
$3.21 | ||
|
Unavailable |
|||
|
#7
SEAT, RR. SHOCK ABSORBER SPRING (NOT AVAILABLE)
52485-418-003
|
$13.39 | ||
|
Unavailable |
|||
|
#8
COLLAR, RR. SHOCK ABSORBER RUBBER BUSH
52486-056-000
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER B, JOINT
52488-331-003
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH, RUBBER (UPPER) (SHOWA)
52489-399-601
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, STOPPER
52517-153-003
|
$4.23 | ||
|
Unavailable |
|||
|
#12
WASHER (10.3MM)
90521-292-000
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPECIAL (12MM) (NOT AVAILABLE)
90555-001-000
|
$1.82 | ||
|
Unavailable |
|||
|
#13
WASHER, PLAIN (12MM)
94101-12000
|
$1.28 | ||
|
Unavailable |
|||
|
#14
NUT, CAP (10MM)
94021-10000-0S
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN (10MM)
94101-10000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
