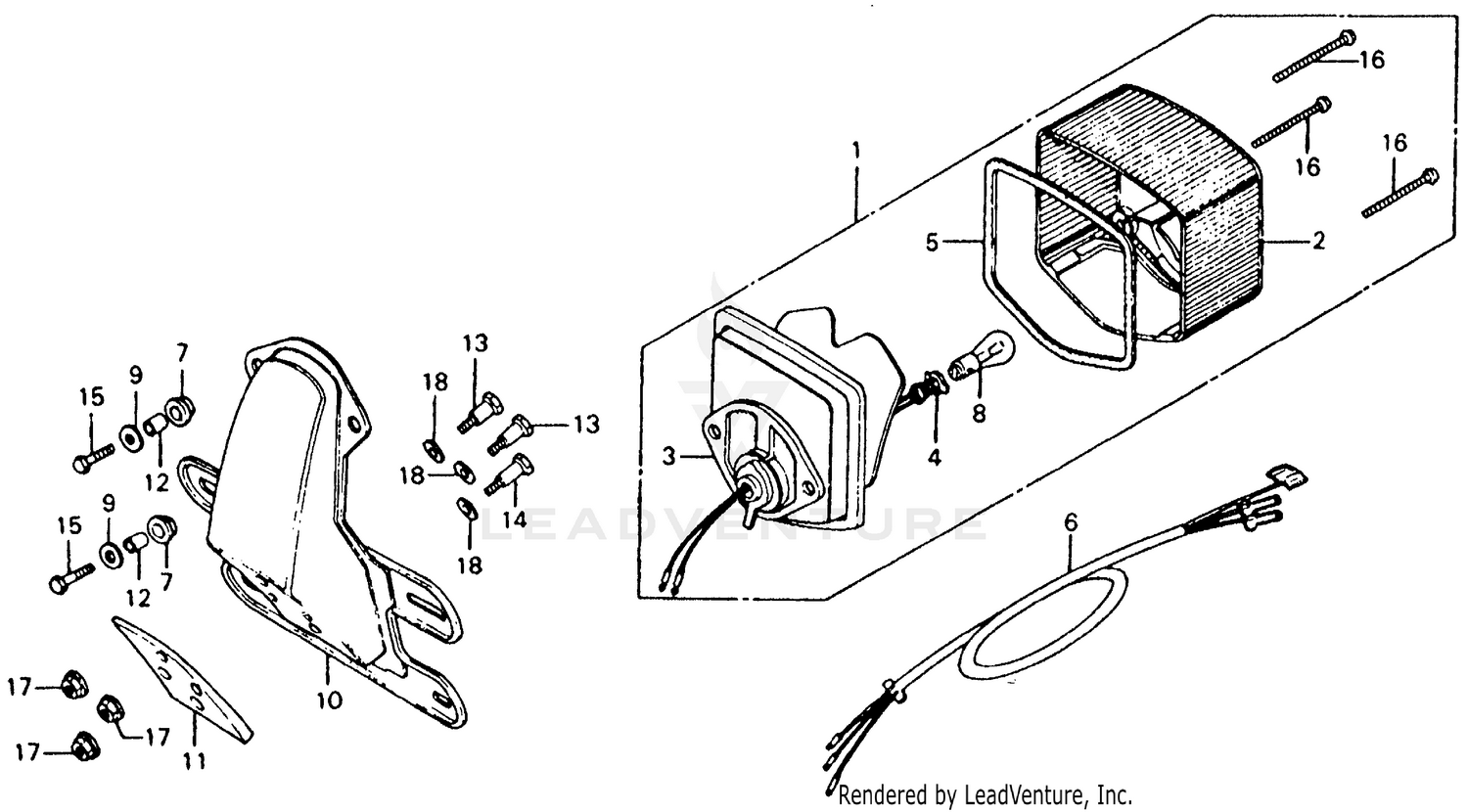

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT (NOT AVAILABLE)
33701-329-671
|
$62.32 | ||
|
Unavailable |
|||
|
#2
LENS, TAILLIGHT
33702-329-671
|
$21.99 | ||
|
Unavailable |
|||
|
#3
BASE, TAILLIGHT (NOT AVAILABLE)
33703-329-670
|
$29.68 | ||
|
Unavailable |
|||
|
#4
WIRE, TAILLIGHT
33708-098-000
|
$8.06 | ||
|
Unavailable |
|||
|
#4
WIRE, TAILLIGHT
33708-341-671
Superseded by 33708-098-000
|
$8.06 | ||
|
Unavailable |
|||
|
#5
GASKET, TAILLIGHT LENS
33709-092-671
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
SUB-WIRE HARNESS, TAILLIGHT (NOT AVAILABLE)
33711-419-670
|
$18.06 | ||
|
Unavailable |
|||
|
#7
GASKET B, TAILLIGHT BASE
33719-077-671
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
BULB, STOP & TAILLIGHT (6V32/3CP) (STANLEY)
34906-329-671
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLAIN (5.5MM)
37314-061-810
|
$3.71 | ||
|
Unavailable |
|||
|
#10
BRACKET, NUMBER PLATE *NH1* (BLACK)
84701-419-670ZA
|
$68.91 | ||
|
Unavailable |
|||
|
#11
SEAT, NUMBER PLATE BRACKET (NOT AVAILABLE)
84705-303-303
|
$7.12 | ||
|
Unavailable |
|||
|
#12
COLLAR, TAILLIGHT UNIT
84706-342-000
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT B, NUMBER PLATE MOUNT (NOT AVAILABLE)
90163-303-000
|
$2.39 | ||
|
Unavailable |
|||
|
#14
BOLT A, NUMBER PLATE MOUNT (NOT AVAILABLE)
90164-303-000
|
$2.39 | ||
|
Unavailable |
|||
|
#15
BOLT, HEX. (5X20)
92000-05020-0A
Superseded by 92101-05020-0A
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEX. (5X20)
92101-05020-0A
|
$1.22 | ||
|
Unavailable |
|||
|
#15
BOLT, HEX. (5X20)
92301-05020-0A
Superseded by 92101-05020-0A
|
$1.22 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN (4X55)
93500-04055-4A
Superseded by 93500-04055-4J
|
$1.51 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN (4X55)
93500-04055-4J
|
$1.51 | ||
|
Unavailable |
|||
|
#17
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
