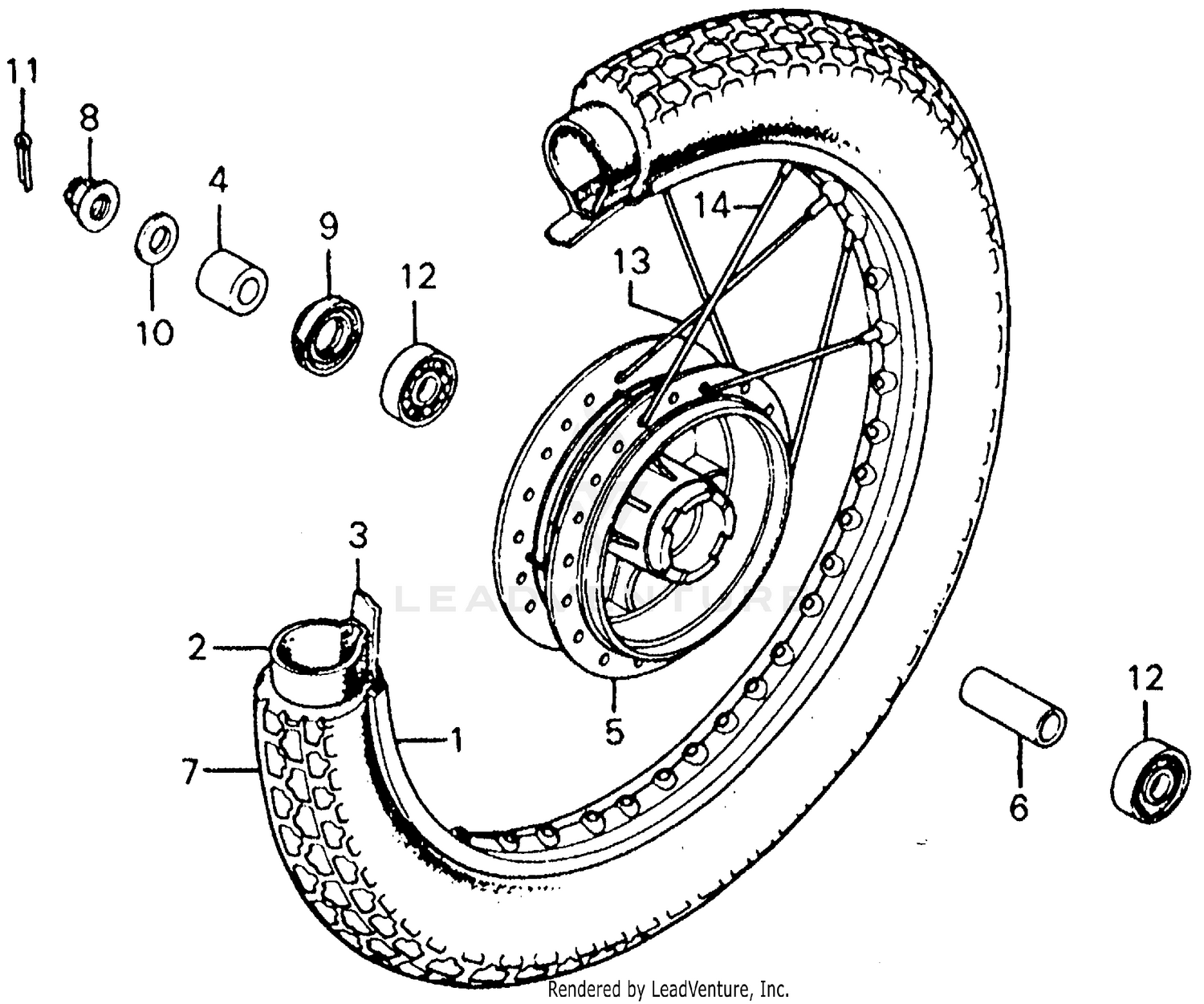

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RIM, FR. WHEEL
42701-402-003
Superseded by 44701-419-672
|
$85.49 | ||
|
Unavailable |
|||
|
#1
RIM, FR. WHEEL
44701-419-671
Superseded by 44701-419-672
|
$85.49 | ||
|
Unavailable |
|||
|
#2
TUBE, TIRE (2.75-17) (INOUE)
0Y400-03310
Superseded by 42712-102-761
|
$11.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, TIRE (2.75-17) (INOUE)
08400-03310
Superseded by 42712-102-761
|
$11.82 | ||
|
Unavailable |
|||
|
#2
TUBE, TIRE (2.75-17) (INOUE)
42712-102-761
|
$11.82 | ||
|
Unavailable |
|||
|
#2
TUBE, TIRE (2.75-17) (INOUE)
42712-303-003
Superseded by 42712-102-761
|
$11.82 | ||
|
Unavailable |
|||
|
#2
TUBE, TIRE (2.75-17) (INOUE)
44712-303-003
Superseded by 42712-102-761
|
$11.82 | ||
|
Unavailable |
|||
|
#3
FLAP, TIRE (17) (INOUE)
42713-102-005
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLAP, TIRE (17) (BS)
44713-200-003
|
$5.71 | ||
|
Unavailable |
|||
|
#4
COLLAR, FR. WHEEL SIDE
44312-402-000
|
$14.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
HUB, FR. WHEEL
44601-402-000
|
$247.36 | ||
|
Unavailable |
|||
|
#6
COLLAR, FR. AXLE DISTANCE
44620-230-000
|
$11.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
TIRE, FR. (3.00-17) (BS)
44711-419-671
|
$36.99 | ||
|
Unavailable |
|||
|
#7
TIRE, FR. (3.00-17) (BS)
44711-419-672
Superseded by 44711-419-671
|
$36.99 | ||
|
Unavailable |
|||
|
#8
NUT, AXLE (14MM)
90305-401-680
|
$14.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL (26X42X7)
91252-230-003
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, FLAT (14MM)
94102-14000
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#11
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#11
PIN, COTTER (3.0X45)
94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#12
BEARING, RADIAL BALL (6302UU)
96140-63020-10
Superseded by 96150-63020-10
|
$18.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, RADIAL BALL (6302UU)
96150-63020-10
|
$18.62 | ||
|
Unavailable |
|||
|
#13
SPOKE A (10X149)
97230-41138-10
|
$1.91 | ||
|
Unavailable |
|||
|
#14
SPOKE A (10X148.5) (NOT AVAILABLE)
97716-41137-10
|
$1.86 | ||
|
Unavailable |
|||
