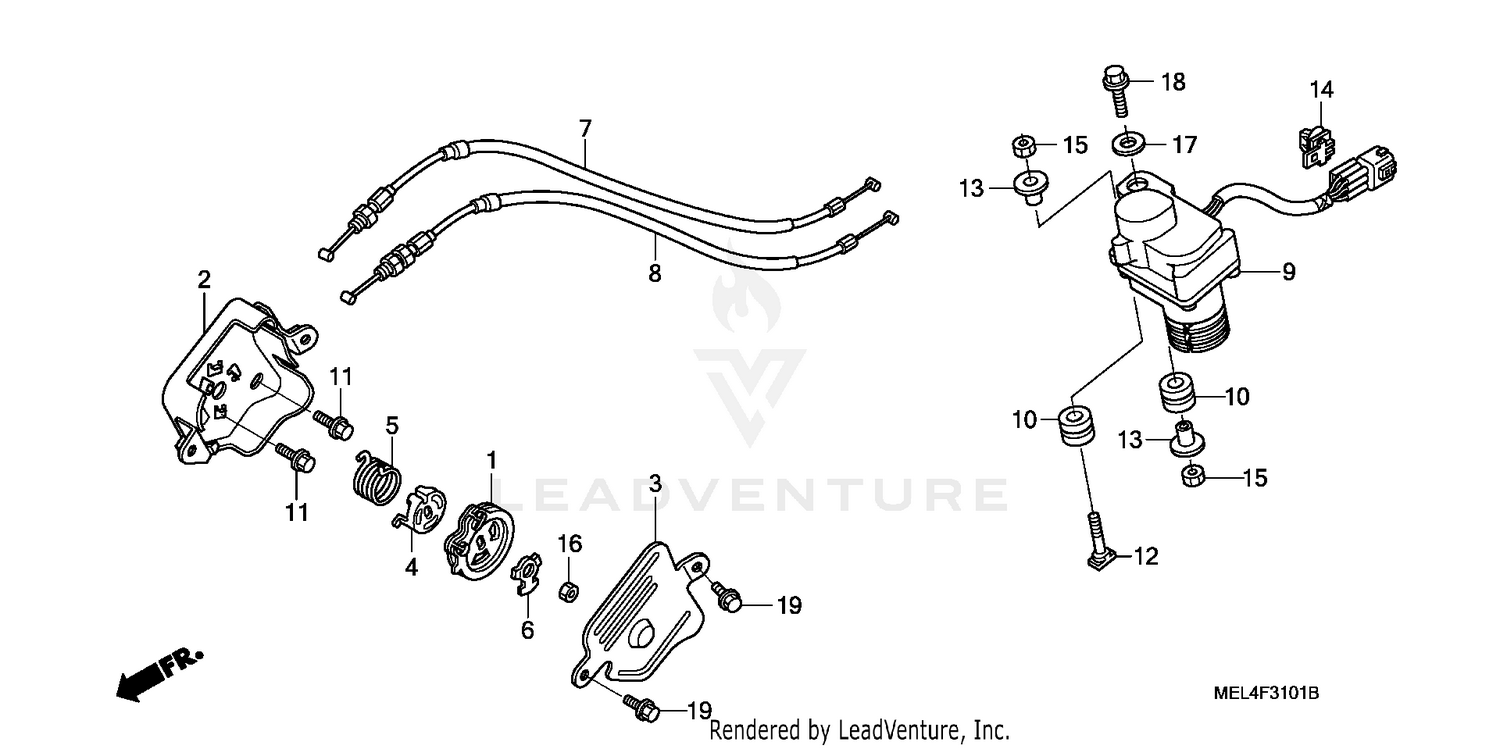

Servo Motor (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUIDE, VALVE CABLE
18180-MEL-D20
|
$13.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
BODY, VALVE GUIDE
18183-MEL-D20
|
$35.82 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, VALVE GUIDE
18184-MEL-D20
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
STOPPER, EX. VALVE
18185-MEL-D20
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, RETURN
18186-MEL-D20
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER B, LOCK
18195-MEL-D20
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE A, EX. VALVE
18910-MEL-D20
|
$26.01 | ||
|
Unavailable |
|||
|
#8
CABLE B, EX. VALVE
18920-MEL-D20
|
$31.79 | ||
|
Available to order. Add to View Price |
|||
|
#9
MOTOR ASSY., SERVO
31420-MEL-D21
|
$476.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET, SEAT SETTING
77205-KM4-000
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (5X8)
90002-ZG3-000
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, SERVO MOTOR CASE (6X28)
90015-MEL-D20
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR (6.3X14.5)
90503-KAE-000
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP, CONNECTOR (BLACK)
91565-SEL-003
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#16
NUT, HEX. (6MM)
94001-06020-0S
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#17
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW-WASHER (5X12)
16546-HW4-680
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
