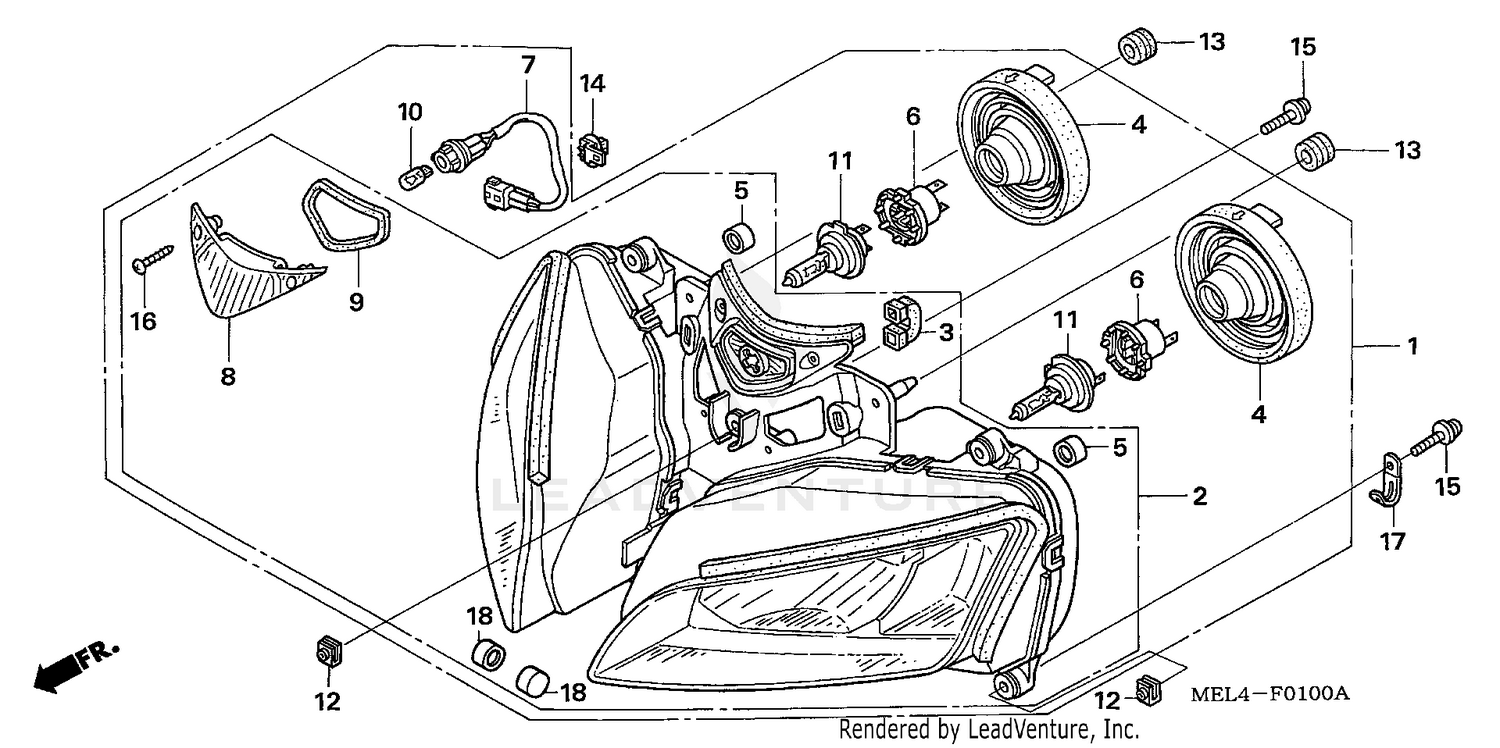

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT ASSY. (12V 55W)
33100-MEL-A21
|
$628.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
HEADLIGHT UNIT
33102-MEL-A21
|
$471.89 | ||
|
Unavailable |
|||
|
#3
PIPE, CP
33103-MEL-000
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, RUBBER
33112-KPB-003
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE, CP
33113-MEE-D01
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
SOCKET, HEADLIGHT
33130-MAT-611
|
$20.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
SOCKET
33140-MEL-640
|
$32.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
LENS, POSITION LIGHT
33181-MEL-000
|
$26.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, SEAL
33184-MEL-000
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
BULB (12V 5W) (STANLEY)
33301-SA0-741
|
$4.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BULB, HEADLIGHT (12V 55W) (H7) (STANLEY)
34901-MAT-611
|
$33.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
NUT, CLIP (5MM)
90312-MT3-000
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER, CONTROL BOX
90852-898-000
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP, CONNECTOR (BLACK)
91565-SEL-003
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW-WASHER (5X22)
93894-05022-07
|
$1.24 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, TAPPING (4X16)
93901-344J0
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIPE, CP
33113-MBW-D21
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
