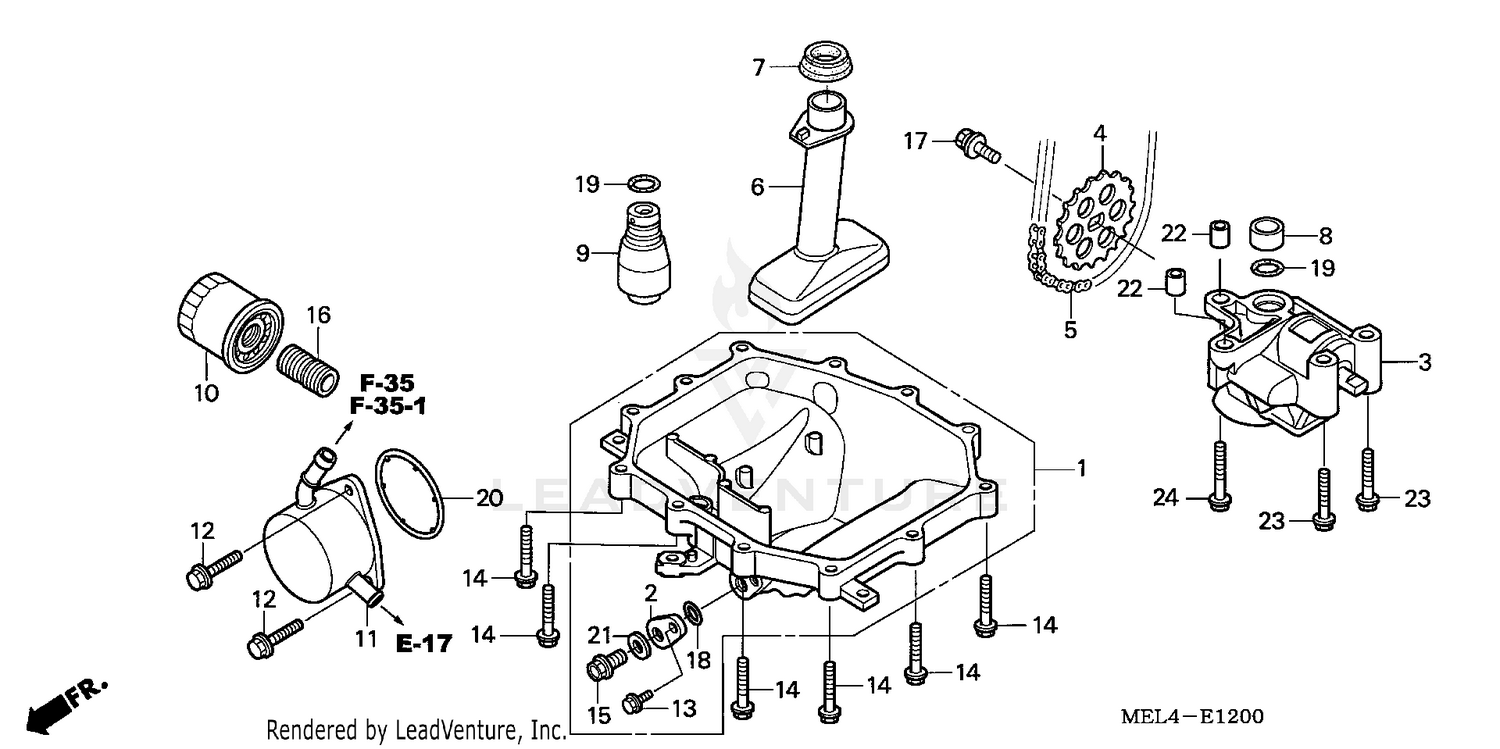

Oil Pan + Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PAN, OIL
11210-MEL-000
|
$419.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
BASE, OIL PAN DRAIN
11212-MEL-300
|
$26.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
PUMP ASSY., OIL
15100-MEL-000
|
$232.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPROCKET, OIL PUMP DRIVEN (25T)
15134-MEL-000
|
$52.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAIN, OIL PUMP (68L) (BORG WARNER)
15141-MEL-003
|
$22.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
STRAINER, OIL
15150-MEL-000
|
$32.98 | ||
|
Unavailable |
|||
|
#7
GASKET, OIL STRAINER
15154-MAT-000
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, O-RING
15155-MEL-000
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
VALVE ASSY., RELIEF
15220-MEL-D20
|
$23.47 | ||
|
Unavailable |
|||
|
#10
FILTER, OIL (WAKO FILTER)
15410-MCJ-003
Superseded by 15410-MFJ-D02
|
$18.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
FILTER, OIL (WAKO FILTER)
15410-MFJ-D01
Superseded by 15410-MFJ-D02
|
$18.63 | ||
|
Unavailable |
|||
|
#11
COOLER, OIL
15700-MEL-000
|
$248.89 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE (6X18) (NSHF)
90006-GHB-640
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X16) (NSHF)
90006-GHB-630
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X35) (NSHF)
90006-GHB-700
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, DRAIN PLUG (12MM)
90012-MEL-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOSS, OIL FILTER
90019-MB0-000
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT-WASHER (6X12)
90021-MM5-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (21.9X1.8)
91306-MEL-003
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (14.8X2.2)
91313-MB0-003
Superseded by 91313-MG7-004
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (14.8X2.2)
91313-MG7-004
|
$4.62 | ||
|
Unavailable |
|||
|
#20
O-RING, OIL COOLER
91354-MCT-003
|
$9.96 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X40)
95701-06040-00
|
$1.97 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X50)
95701-06050-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
