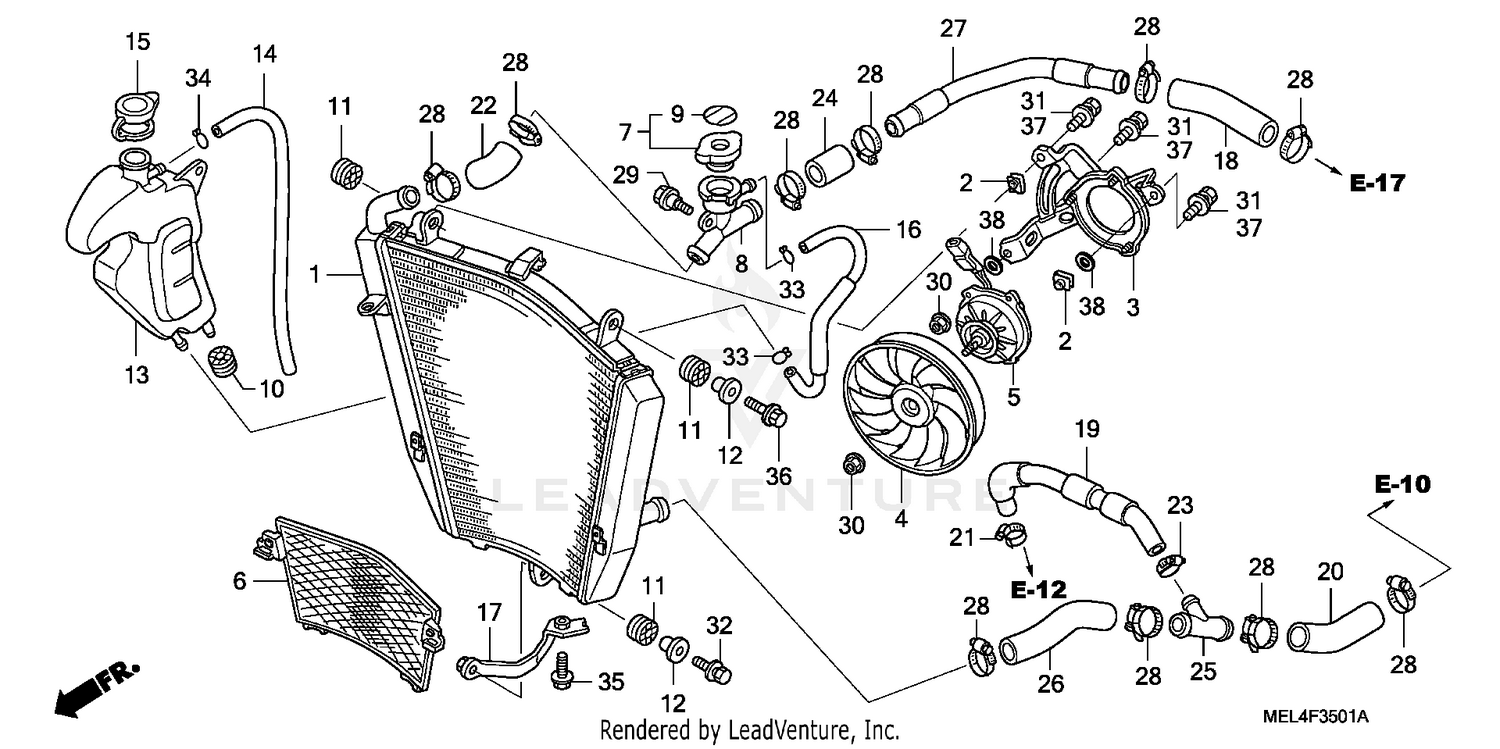

Radiator (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR
19010-MEL-D21
|
$923.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT, SETTING
19014-KEA-003
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHROUD
19015-MEL-D21
|
$65.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
FAN, COOLING
19020-MFA-D01
|
$46.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
MOTOR ASSY., FAN
19030-MEL-D21
|
$232.13 | ||
|
Unavailable |
|||
|
#6
GRILLE, RADIATOR
19032-MEL-D20
|
$11.03 | ||
|
Unavailable |
|||
|
#7
CAP, RADIATOR
19037-GEE-710
|
$36.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
NECK, FILLER
19039-MEL-003
|
$33.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
LABEL, RADIATOR CAP
19046-PAA-A00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, RADIATOR MOUNTING
19051-KA3-710
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, RADIATOR MOUNTING
19052-MAC-680
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
TANK, RADIATOR RESERVE
19101-MEL-D20
|
$46.38 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE, OVERFLOW
19103-MEL-D20
|
$11.96 | ||
|
Unavailable |
|||
|
#15
CAP, RESERVE TANK
19104-MB0-700
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
TUBE, RESERVE TANK FILLER
19104-MEL-D20
|
$12.39 | ||
|
Unavailable |
|||
|
#17
STAY, RADIATOR (LOWER)
19113-MEL-D20
|
$17.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE A, R. RADIATOR
19501-MEL-D20
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE, OIL COOLER
19502-MEL-D20
|
$17.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE A, L. RADIATOR
19503-MEL-D20
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP, HOSE (25MM)
19504-KT7-751
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE, FILLER NECK
19504-MEL-D20
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP A, WATER HOSE
19505-KS6-700
|
$13.25 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE C, WATER
19506-MEL-D20
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#25
JOINT, HOSE (THREE-WAY)
19507-MEE-000
|
$14.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE B, L. RADIATOR
19508-MEL-D20
|
$15.00 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIPE, WATER
19509-MEL-D20
|
$48.85 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP, HOSE (30-37MM)
19516-GAG-003
|
$17.45 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6MM)
90111-187-000
|
$7.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
NUT, SERRATE (5MM)
90315-MK3-003
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT-WASHER (6X12)
93401-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT-WASHER (6X12)
93401-06012-08
|
$1.70 | ||
|
Unavailable |
|||
|
#32
BOLT-WASHER (6X25)
93404-06025-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLIP, TUBE (B10)
95002-02100
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
CLIP, TUBE (C9)
95002-50000
|
$1.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
BOLT-WASHER (6X14)
90104-MEL-305
Superseded by 93401-06014-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT-WASHER (6X14)
93401-06014-07
|
$1.70 | ||
|
Unavailable |
|||
|
#38
WASHER (6MM)
90502-MEL-305
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
