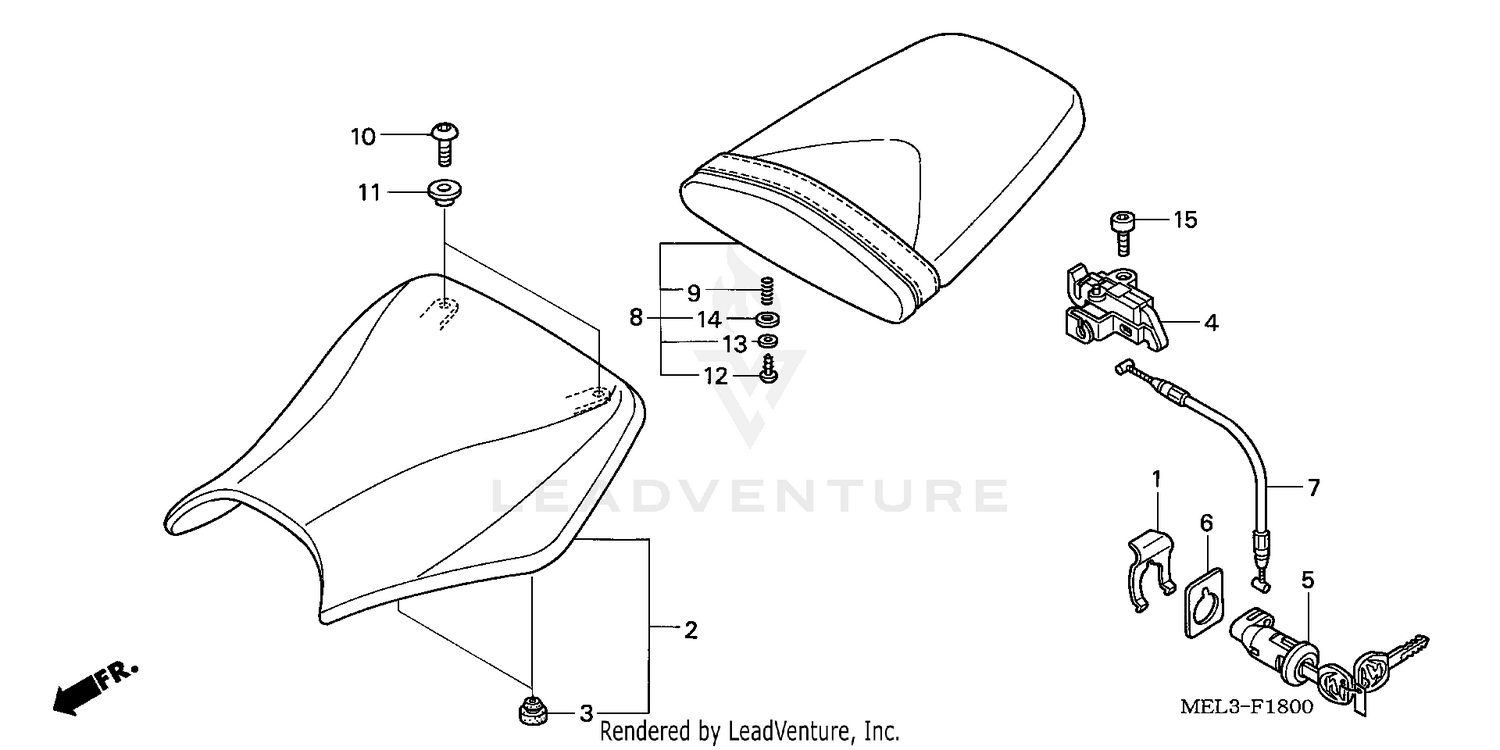

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPRING, LOCK KEY SETTING
75581-GN8-920
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAT ASSY., SINGLE
77100-MEL-D20
|
$224.82 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, SEAT CUSHION
77207-MEL-000
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOOK, SEAT CATCH
77220-MEL-D20
|
$28.82 | ||
|
Unavailable |
|||
|
#5
KEY, SEAT LOCK
77234-MBL-611
|
$39.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE, SEAT LOCK
77240-MEL-000
|
$7.56 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAT ASSY., PILLION
77300-MEL-D20
Superseded by 77300-MEL-D30
|
$264.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAT ASSY., PILLION
77300-MEL-D30
|
$264.44 | ||
|
Unavailable |
|||
|
#9
SPRING, SEAT LOCK
77302-MEE-000
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN (6X14)
90118-MR1-000
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
COLLAR, GEARSHIFT LEVER SETTING
90522-170-700
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, TAPPING (4X12)
93903-24320
|
$0.95 | ||
|
Unavailable |
|||
|
#13
WASHER, PLAIN (4MM)
94101-04800
|
$1.03 | ||
|
Unavailable |
|||
|
#14
WASHER, PLAIN (8MM)
94102-08800
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, SOCKET (6X12)
96600-06012-00
|
$1.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
