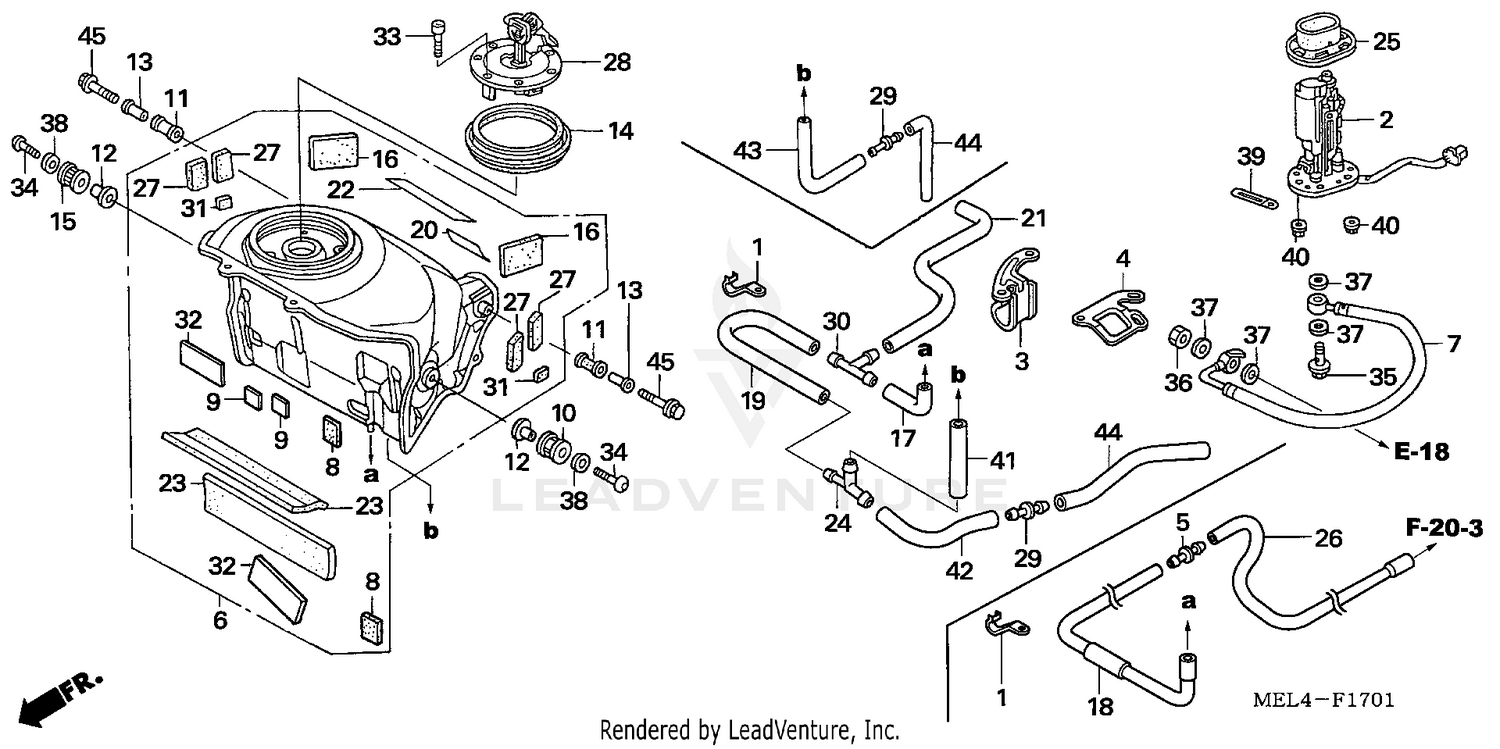

Fuel Tank + Fuel Pump (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP B, TUBE
16106-KW7-900
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#2
PUMP UNIT, FUEL
16700-MEL-D20
Superseded by 16700-MEL-D21
|
$713.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
PUMP UNIT, FUEL
16700-MEL-D21
|
$713.47 | ||
|
Unavailable |
|||
|
#3
GUIDE, FUEL BREATHER TUBE
16723-MEL-D20
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, FUEL BREATHER TUBE (B)
16724-MEL-D20
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#6
TANK SET, FUEL
17520-MEL-D20
Superseded by 17520-MEL-D21
|
$1,286.16 | ||
|
Available to order. Add to View Price |
|||
|
#6
TANK SET, FUEL
17520-MEL-D21
|
$1,286.16 | ||
|
Unavailable |
|||
|
#7
HOSE A, FUEL FEED
17526-MEL-D20
|
$126.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
TAPE B, TANK GUARD
17528-KCZ-930
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
TAPE, TANK GUARD
17528-MR4-900
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, L. FR. TANK MOUNTING
17533-MEL-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, RR. TANK MOUNTING
17534-MEE-000
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, FR. TANK SETTING
17535-MEL-D20
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, RR. TANK SETTING
17538-MEE-D00
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL, FUEL TANK
17543-MEE-000
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER, R. FR. TANK MOUNTING
17545-MEL-000
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION, FUEL TANK
17554-MEL-300
|
$9.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
TUBE A, FUEL TANK BREATHER
17555-MEL-D20
|
$3.44 | ||
|
Available to order. Add to View Price |
|||
|
#19
TUBE B, FUEL TANK BREATHER
17556-MEL-D20
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#20
FILM A, PROTECTOR
17556-MEL-300
|
$18.84 | ||
|
Available to order. Add to View Price |
|||
|
#21
TUBE C, FUEL TANK BREATHER
17557-MEL-D20
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#22
FILM B, PROTECTOR
17557-MEL-300
|
$35.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
MAT, FUEL TANK
17559-MEL-D00
|
$4.25 | ||
|
Unavailable |
|||
|
#24
JOINT, THREE WAY
17559-MEL-D20
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET, BASE
17574-MEE-000
|
$16.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
CUSHION B, FUEL TANK
17601-MEL-300
|
$2.50 | ||
|
Unavailable |
|||
|
#28
CAP, FUEL FILLER
17620-MCJ-751
Superseded by 17620-MCJ-753
|
$222.96 | ||
|
Unavailable |
|||
|
#29
JOINT, TUBE
19102-KT8-000
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#30
JOINT, AIR FILTER
36191-KV3-700
|
$16.38 | ||
|
Available to order. Add to View Price |
|||
|
#31
RUBBER, PROTECTOR
81214-MT3-300
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#32
TAPE, PROTECTOR
81229-MR5-000
|
$9.55 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, SOCKET (4X21)
90074-MT4-000
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, SPROCKET FIXING
90128-KL4-000
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, BANJO (12MM)
90136-MEL-000
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT A, SEALING (12MM)
90201-PD1-000
|
$6.12 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, SEALING (12MM)
90428-PD6-003
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER A, HANDLE HOLDER SETTING
90524-030-000
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLIP (2X60)
91410-679-000
|
$12.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#41
BULK HOSE, VACUUM (8X1000) (8X40)
95005-80001-50M
|
$19.70 | ||
|
Available to order. Add to View Price |
|||
|
#42
BULK HOSE, VACUUM (8X1000) (8X110)
95005-80001-50M
|
$19.70 | ||
|
Unavailable |
|||
|
#44
BULK HOSE, VACUUM (8X1000) (8X340)
95005-80001-20M
|
$28.98 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, FLANGE (6X35)
95801-06035-00
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
