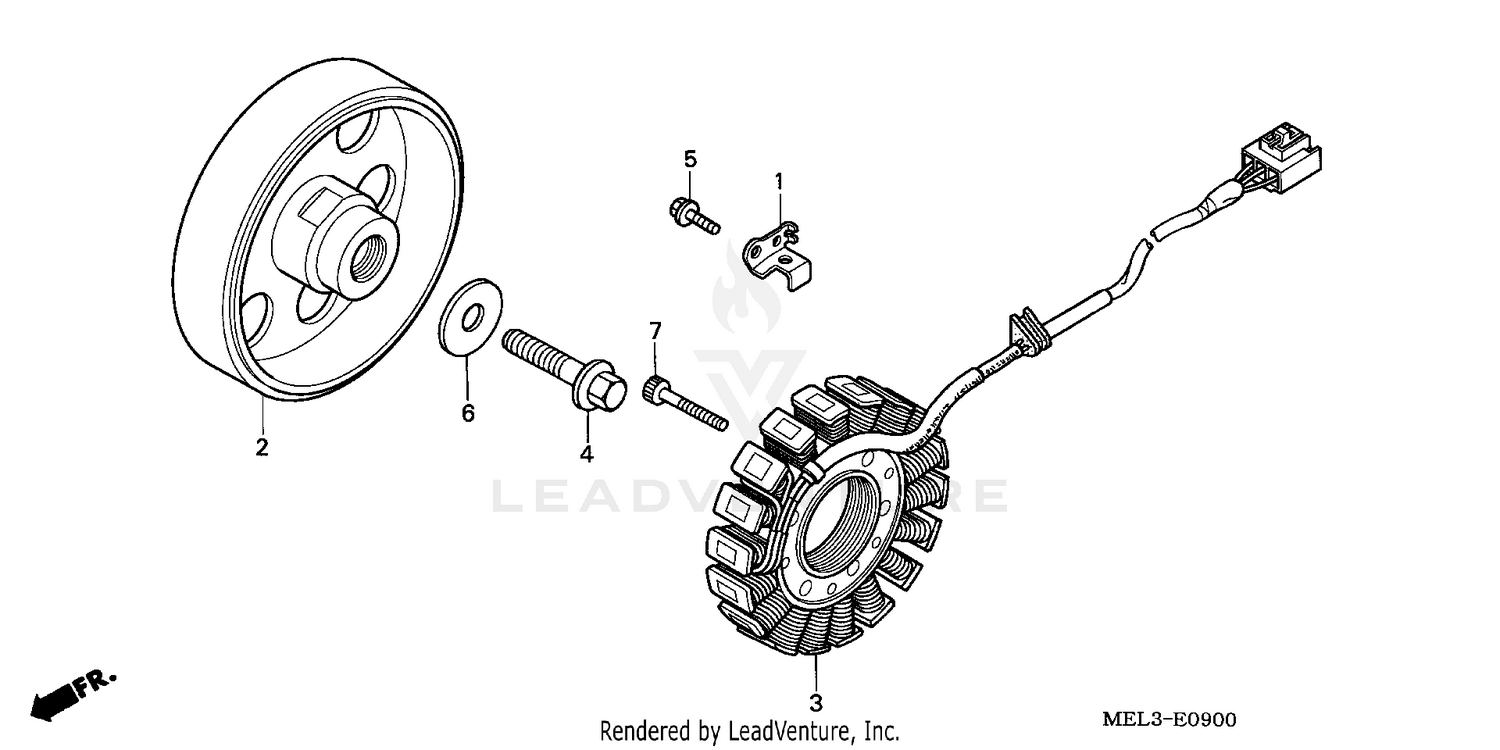

Alternator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, ALTERNATOR CORD
11333-MEL-000
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
FLYWHEEL
31110-MEL-D21
|
$424.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
STATOR
31120-MEL-D21
Superseded by 31120-MEL-D22
|
$392.51 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE (10X35)
90003-MN4-000
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
WASHER (10.5X27)
90405-MCA-780
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, SOCKET (6X28)
96600-06028-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
