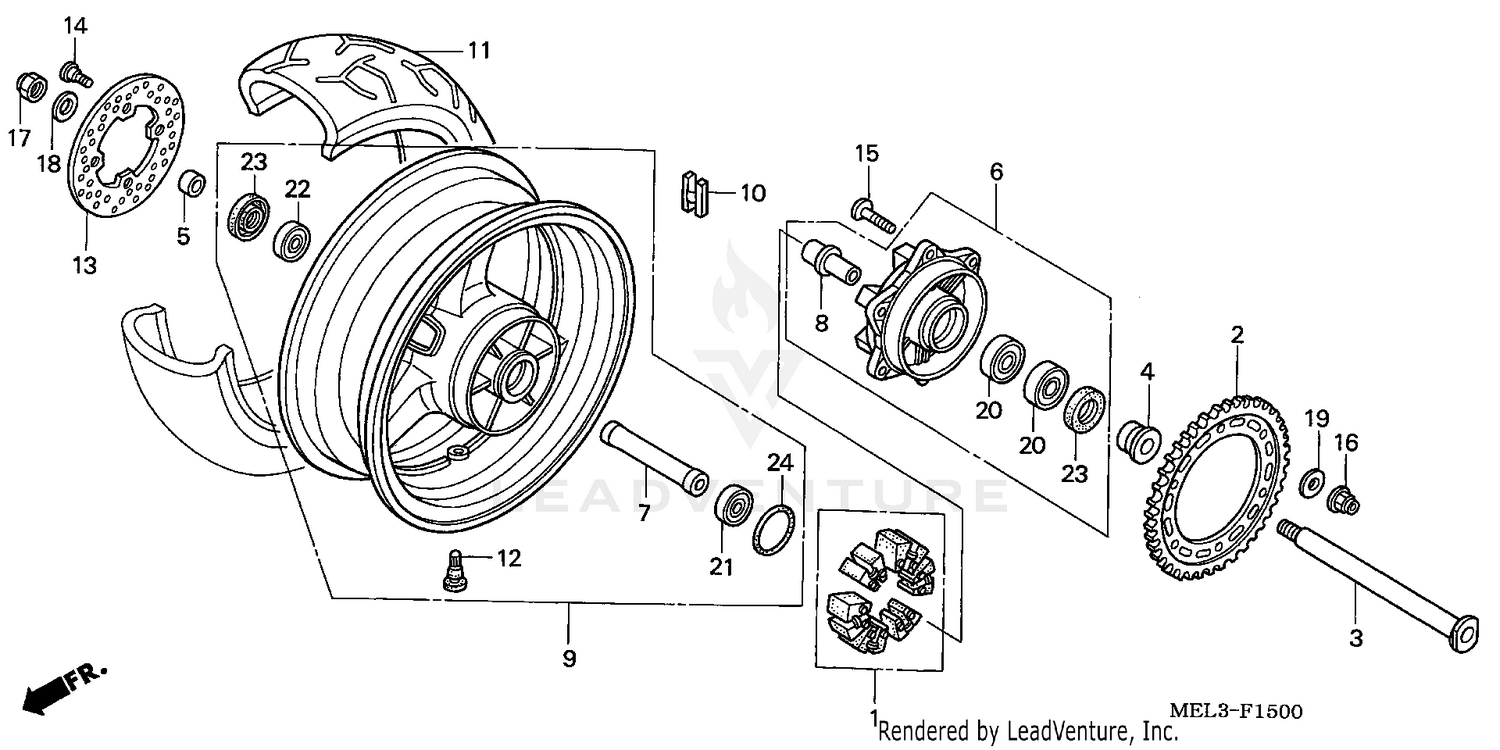

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER SET, WHEEL
06410-MEL-D20
|
$66.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPROCKET, FINAL DRIVEN (42T)
41201-MEL-D20
|
$126.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
AXLE, RR. WHEEL
42301-MEL-000
|
$81.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, RR. WHEEL SIDE
42311-MCJ-750
|
$20.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, RR. BRAKE SIDE
42312-MEL-000
|
$16.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLANGE SUB-ASSY., RR. DRIVEN
42615-MEL-000
|
$262.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, RR. AXLE DISTANCE
42620-MEL-000
|
$44.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR B, RR. WHEEL DISTANCE
42625-MEL-000
|
$35.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
WHEEL SUB-ASSY., RR. (TYPE1)
42650-MEL-D20ZB
|
$820.51 | ||
|
Unavailable |
|||
|
#10
WEIGHT, BALANCE (10G)
42704-MER-D00
|
$11.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
WEIGHT, BALANCE (20G)
42705-MER-D00
|
$19.89 | ||
|
Available to order. Add to View Price |
|||
|
#10
WEIGHT, BALANCE (30G)
42706-MER-D00
|
$19.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
TIRE, RR. (190/50ZR17) (M/C 73W) (PIRELLI)
42711-MEL-008
|
$232.17 | ||
|
Unavailable |
|||
|
#11
TIRE, RR. (190/50ZR17) (M/C 73W) (BS)
42711-MEL-D21
|
$240.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
VALVE, RIM (PIRELLI)
42753-MCF-008
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
VALVE, RIM (BS)
42753-ML7-003
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#13
DISK, RR. BRAKE
43251-MEE-000
|
$278.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, DISK (8X24) (TSUKIBOSHI)
90105-MBB-000
Superseded by 90105-MV9-003
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, DISK (8X24) (TSUKIBOSHI)
90105-MV9-003
|
$7.80 | ||
|
Unavailable |
|||
|
#15
BOLT (10X30)
90121-MCF-D30
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, U (10MM)
90304-KAE-871
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U (22MM)
90305-MCF-D00
Superseded by 90305-MCF-D01
|
$9.67 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (23X37X2.5)
90401-MCJ-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (10MM)
90502-MCF-000
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (28X52X12)
91051-HA7-671
|
$41.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, RADIAL BALL (6005)
91052-MCF-003
|
$18.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (6205X2)
91053-MAZ-003
|
$21.69 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUST SEAL (35X52X7.5)
91254-MEE-003
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING (51X2)
91352-MCF-003
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
