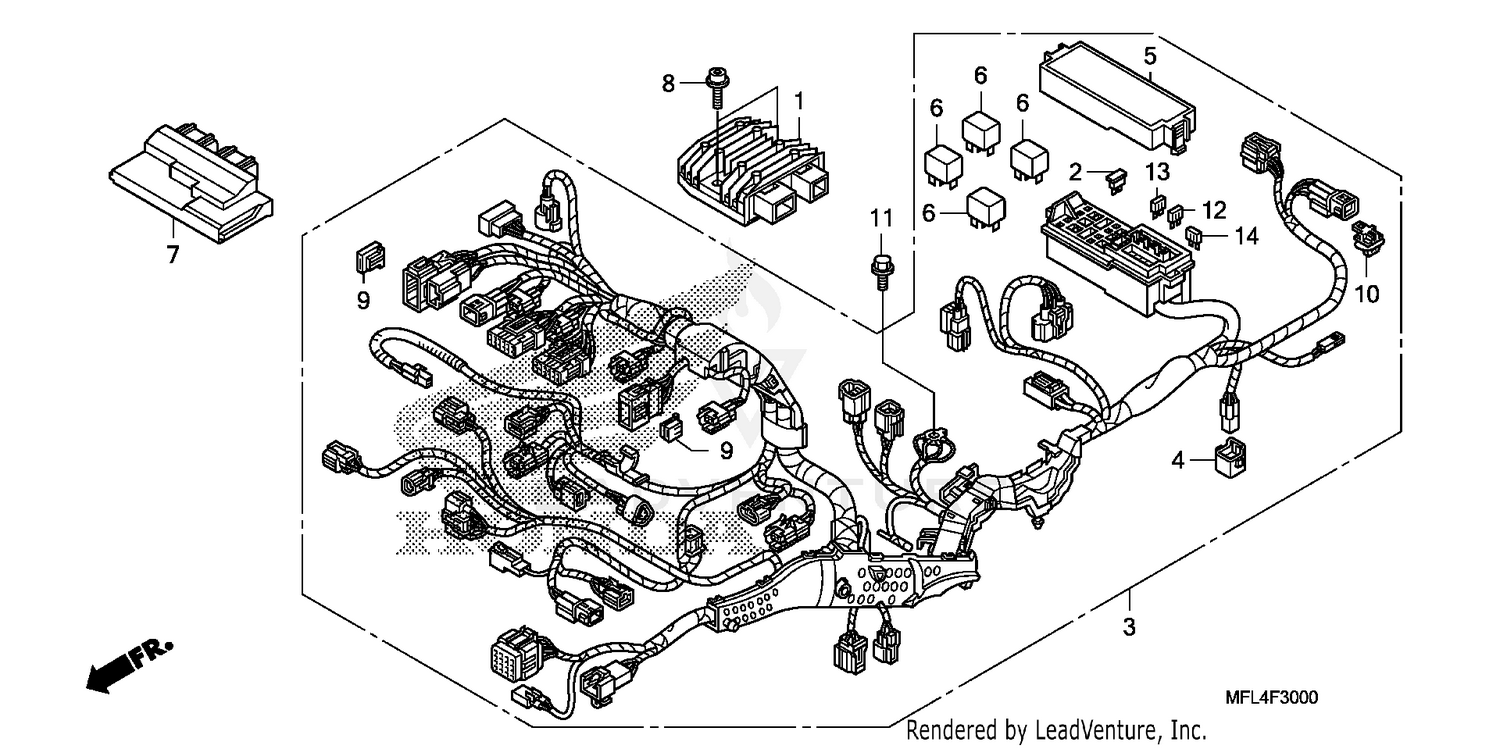

Wire Harness (cbr1000rr) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECTIFIER, REGULATOR
31600-KVZ-631
|
$430.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
DIODE ASSY., THREE WAY (SUMITOMO)
31730-MAS-601
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
WIRE HARNESS
32100-MFL-690
|
$1,417.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, DUMMY (4P) (RED) (Honda Code 7679160)
32606-GEV-761
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER (UPPER)
38252-MFJ-D01
|
$13.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
RELAY (MICRO ISO 4P)
38501-MEL-003
Superseded by 38501-MKP-DN1
|
$5.85 | ||
|
Unavailable |
|||
|
#7
PGM-FI UNIT
38770-MFL-A21
|
$1,246.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE SOCKET (6X22)
90091-MM5-640
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER, BRACKET (RED)
91554-SM4-003
|
$8.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP, CONNECTOR (DARK GREEN)
91565-S0X-003
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X12)
96300-06012-00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#12
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
FUSE, MINI (20A)
98200-42000
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
FUSE, MINI (30A) (Honda Code 5359666)
98200-43000
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
