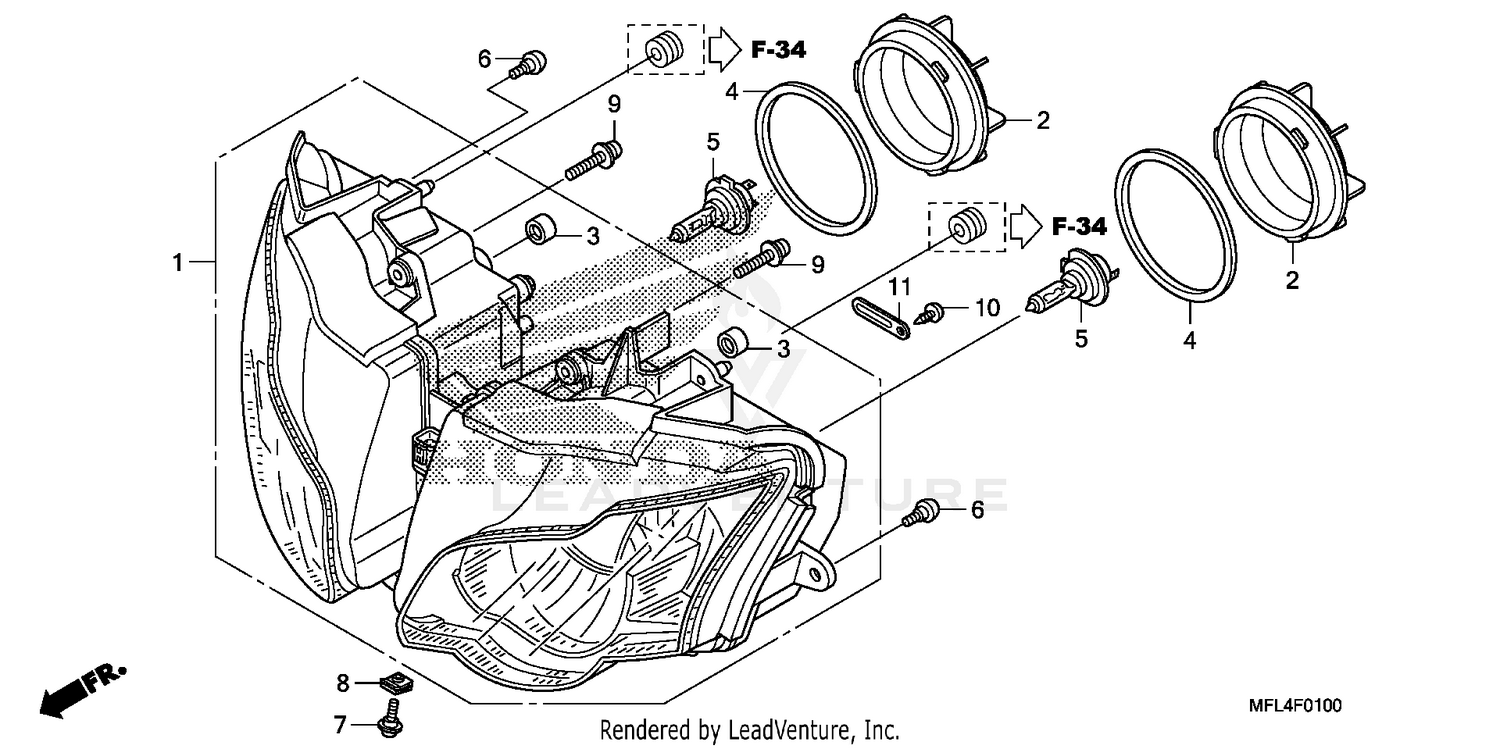

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT UNIT (COO)
33102-MFL-305
|
$907.40 | ||
|
Available to order. Add to View Price |
|||
|
#1
HEADLIGHT UNIT (COO)
33102-MFL-641
Superseded by 33102-MFL-305
|
$907.40 | ||
|
Unavailable |
|||
|
#2
COVER, SOCKET
33112-MFJ-D01
|
$11.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE, CP
33113-MBW-D21
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, SOCKET COVER
33114-MFJ-D01
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
BULB, HEADLIGHT (12V 55W) (H7) (STANLEY)
34901-MAT-611
|
$33.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SCREW (5X13.5) (NOT AVAILABLE)
90106-961-000
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN (5X13)
90117-KSV-K10
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, CLIP (5MM)
90312-MT3-000
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW-WASHER (5X22)
93894-05022-07
|
$1.24 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, TAPPING (4X12)
93903-24380
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CLIP (2X90)
94591-29000
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
