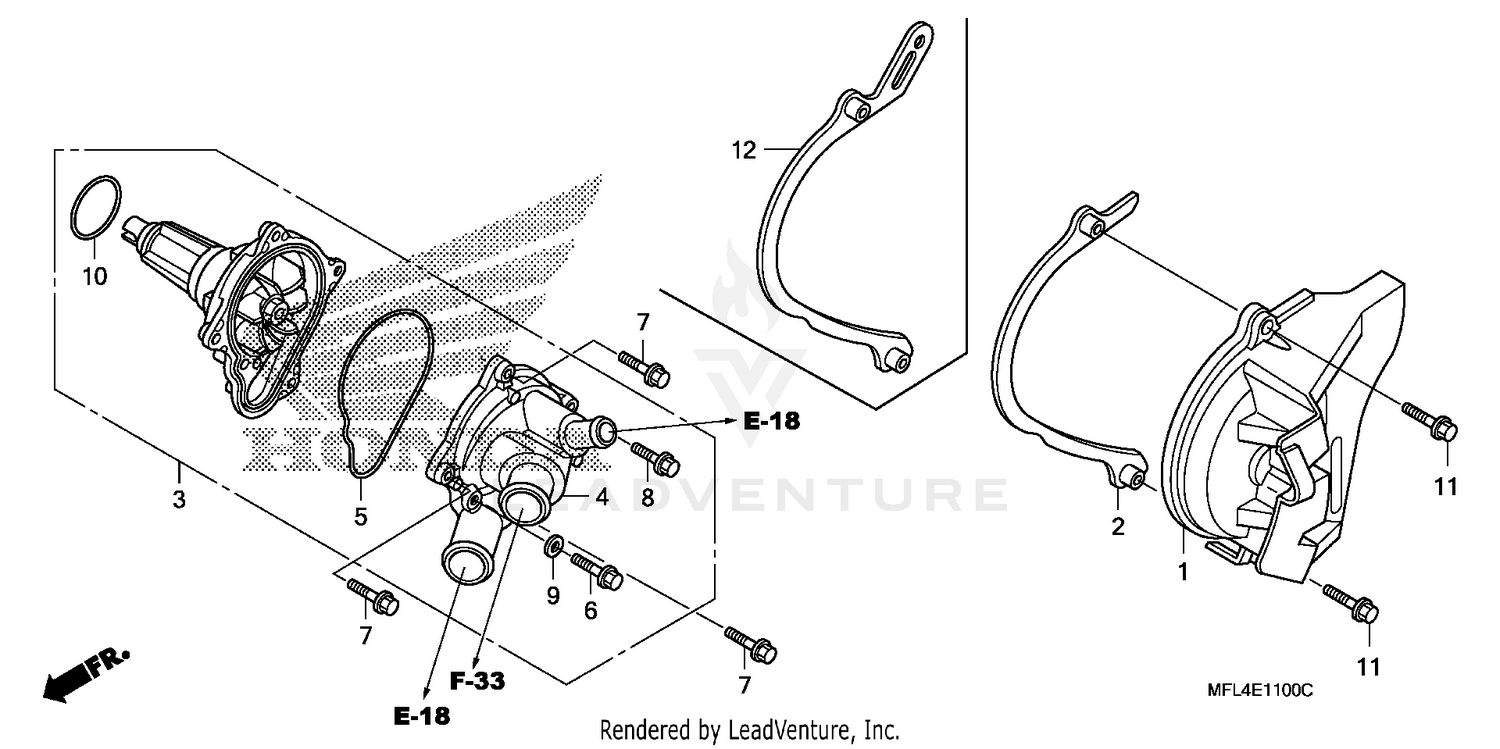

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L. RR.
11350-MFL-000
|
$21.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, DRIVE CHAIN GUIDE
11355-MFL-000
|
$9.42 | ||
|
Available to order. Add to View Price |
|||
|
#3
WATER PUMP ASSY.
19200-MFL-305
Superseded by 19200-MFL-315
|
$214.96 | ||
|
Unavailable |
|||
|
#3
WATER PUMP ASSY.
19200-MFL-315
|
$214.96 | ||
|
Unavailable |
|||
|
#4
COVER COMP
19220-MFL-000
Superseded by 19220-MFL-010
|
$111.15 | ||
|
Unavailable |
|||
|
#5
GASKET, WATER PUMP COVER
19226-MFL-000
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (6X30) (CT200)
90003-HN2-000
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (6X32) (NSHF)
90006-GHB-690
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X25)
90121-MV9-670
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
O-RING (32.95X2.62) (ARAI)
91302-MB0-013
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)
96001-06025-07
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
