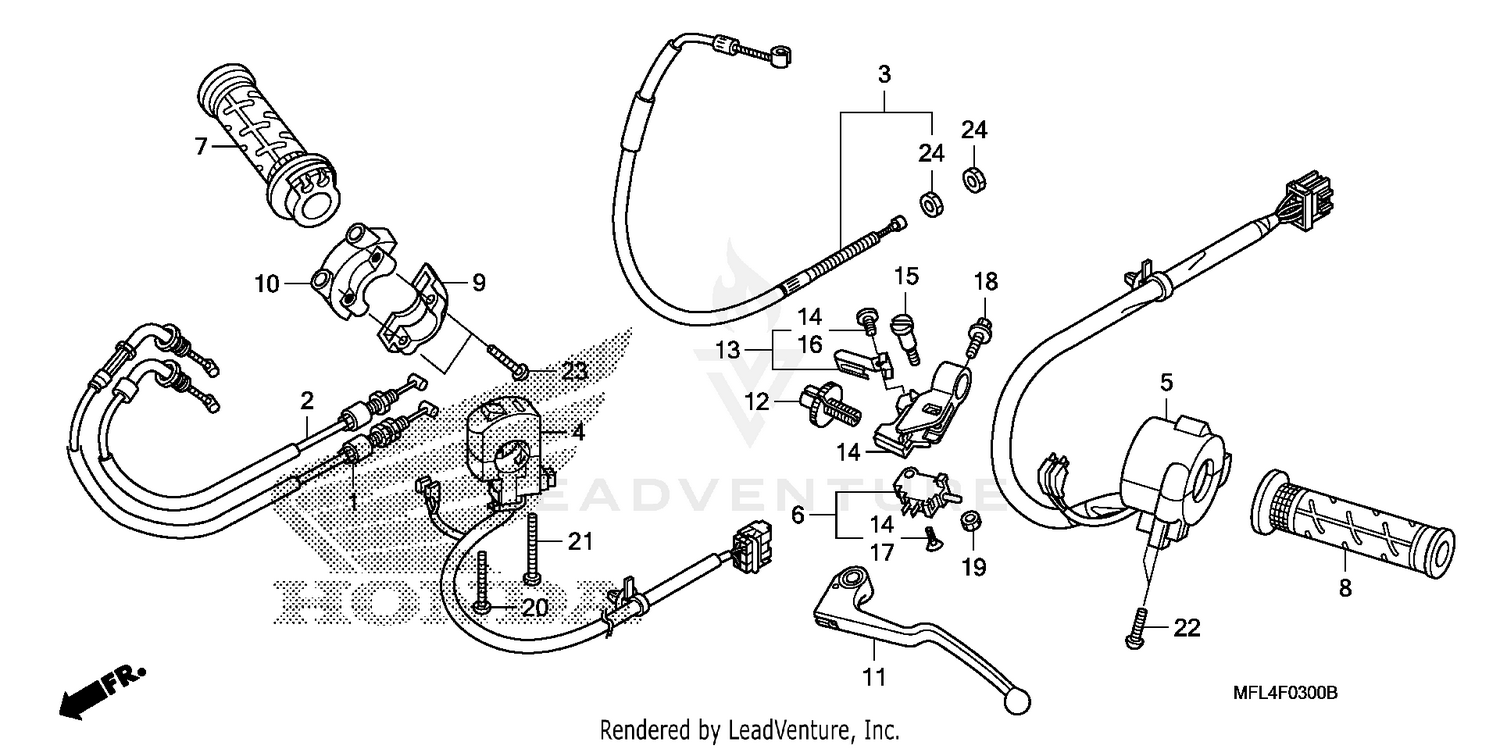

Handle Lever@switch@cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE A, THROTTLE
17910-MFL-000
|
$31.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
CABLE B, THROTTLE
17920-MFL-000
|
$31.38 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE, CLUTCH
22870-MFL-000
|
$27.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
SWITCH ASSY., ENGINE STOP
35130-MFL-000
|
$69.24 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWITCH ASSY., TURN SIGNAL
35200-MFL-670
Superseded by 35200-MFL-671
|
$144.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWITCH ASSY., TURN SIGNAL
35200-MFL-671
|
$144.96 | ||
|
Unavailable |
|||
|
#6
SWITCH SET, CLUTCH
35335-MCJ-750
Superseded by 35335-MCJ-751
|
$17.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
SWITCH SET, CLUTCH
35335-MCJ-751
|
$17.29 | ||
|
Unavailable |
|||
|
#7
GRIP ASSY., THROTTLE
53140-MCF-000
|
$41.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
GRIP ASSY., THROTTLE
53140-MCF-305
Superseded by 53140-MCF-000
|
$41.91 | ||
|
Unavailable |
|||
|
#8
GRIP, L. HANDLE
53166-MY9-890
|
$22.04 | ||
|
Available to order. Add to View Price |
|||
|
#8
GRIP, L. HANDLE
53166-MGF-305
Superseded by 53166-MY9-890
|
$22.04 | ||
|
Unavailable |
|||
|
#8
GRIP, L. HANDLE
53166-MY9-305
Superseded by 53166-MY9-890
|
$22.04 | ||
|
Unavailable |
|||
|
#9
HOUSING, THROTTLE (UPPER) (UNDER)
53167-MV4-000
|
$45.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOUSING, THROTTLE (LOWER) (UPPER)
53168-MV4-000
|
$49.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER, L. HANDLE
53182-MCJ-750
|
$29.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER, L. HANDLE
53182-MCJ-305
Superseded by 53182-MCJ-750
|
$29.04 | ||
|
Unavailable |
|||
|
#12
BOLT, CABLE ADJUSTING
53183-MCJ-750
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING SET, CLUTCH LEVER
53190-MCJ-750
Superseded by 53190-MCJ-751
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING SET, CLUTCH LEVER
53190-MCJ-751
|
$4.75 | ||
|
Unavailable |
|||
|
#14
BRACKET SET, CLUTCH LEVER
53195-MCJ-750
Superseded by 53195-MCJ-751
|
$30.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET SET, CLUTCH LEVER
53195-MCJ-751
|
$30.91 | ||
|
Unavailable |
|||
|
#15
BOLT, LEVER PIVOT
90122-MCJ-750
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN (4X10)
90123-MCJ-750
Superseded by 90123-MCJ-751
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN (4X10)
90123-MCJ-751
|
$1.05 | ||
|
Unavailable |
|||
|
#17
SCREW, FLAT (3X16)
90124-MCJ-751
Superseded by 90124-MCJ-752
|
$0.71 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, FLAT (3X16)
90124-MCJ-752
|
$0.71 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE (6X20)
90126-MCJ-750
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, U (6MM)
90301-MCJ-750
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN (4X32)
93500-04032-0G
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN (4X45)
93500-04045-0G
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN (5X20)
93500-05020-0G
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN (5X22)
93500-05022-0G
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT,HEX 8MM
94002-080000S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
