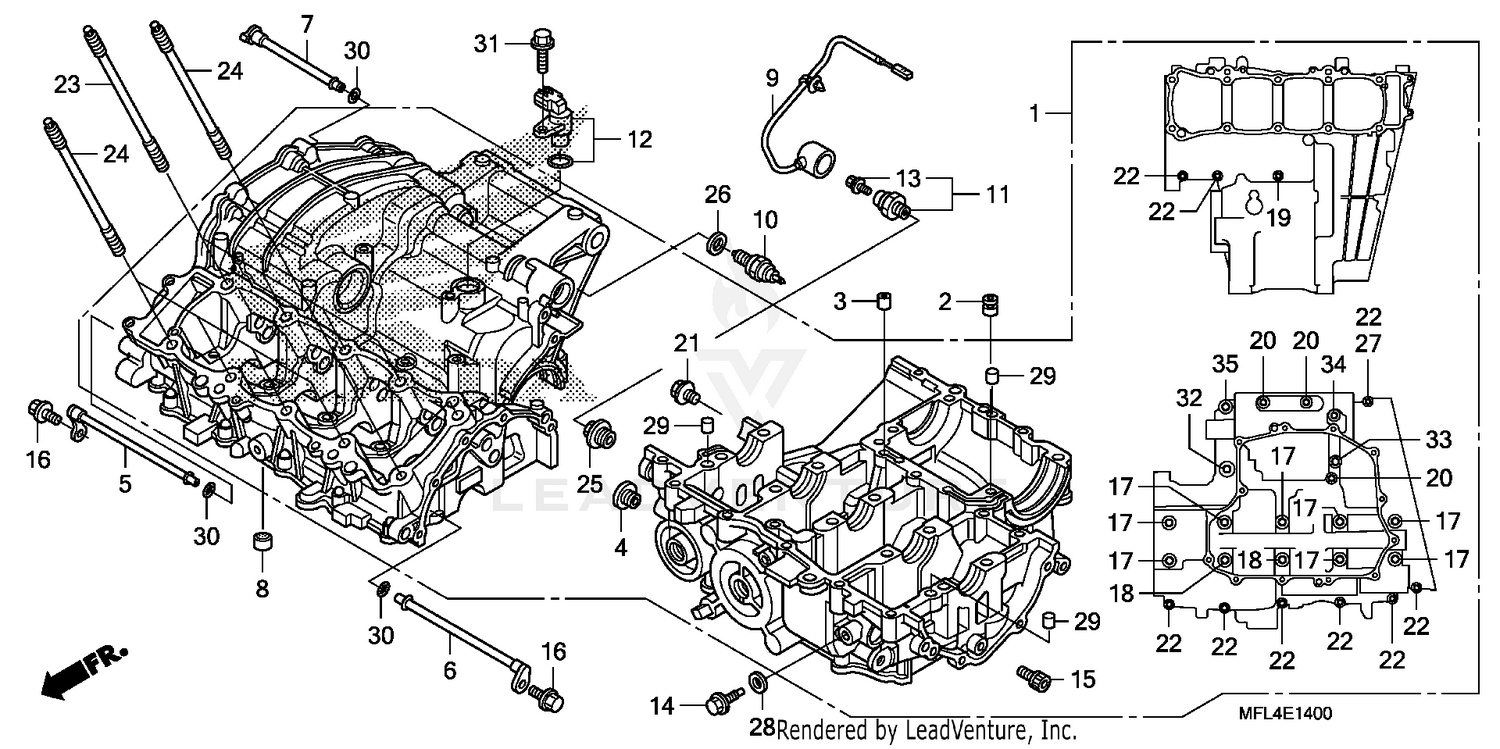

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11000-MFL-000
|
$2,747.16 | ||
|
Available to order. Add to View Price |
|||
|
#2
ORIFICE
11206-MFL-000
|
$6.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
ORIFICE (1.1MM)
11207-MFL-000
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, SEALING (20MM)
12208-PR3-000
|
$9.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE, R. OIL JET
15330-MFL-000
|
$79.04 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE, L. OIL JET
15340-MFL-000
|
$79.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE, TRANSMISSION OIL JET
15350-MFL-000
|
$54.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
ORIFICE (1MM)
15351-MFJ-D00
|
$8.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
SUB-HARNESS, ENGINE
32101-MFL-760
|
$11.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH ASSY., NEUTRAL
35600-MFJ-D01
|
$25.64 | ||
|
Available to order. Add to View Price |
|||
|
#11
SWITCH ASSY., OIL PRESSURE (DENSO)
35500-MJ4-024
|
$51.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
SENSOR ASSY., SPEED
37700-MFL-761
|
$84.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SPECIAL (6X18)
90004-MM5-000
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, SOCKET (8X12)
90010-MEL-000
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, KNOCK (6MM)
90011-MFJ-D00
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (9X105)
90015-MFL-003
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (9X126)
90016-MFL-003
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (7X60)
90017-MEL-000
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (7X50)
90017-MFL-000
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, SEALING (8MM)
90019-MAT-000
|
$7.71 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (7X40)
90019-MFA-D00
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, STUD (9X145.5)
90032-MFL-000
|
$16.16 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, STUD (9X134)
90033-MFL-000
|
$15.53 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, SEALING (22MM)
90048-MFL-000
|
$10.85 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, NEUTRAL
90443-MJ6-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SEALING (7MM)
90447-KE1-000
|
$3.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
PIN, DOWEL (10X16) (Honda Code 3906971)
90701-MV9-670
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI)
91307-422-000
Superseded by 91313-MA6-005
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI)
91313-MA6-005
|
$2.98 | ||
|
Unavailable |
|||
|
#31
BOLT, FLANGE (6X18) BOLT, HEX. (6X18)
95701-06018-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOLT, FLANGE (8X50)
95701-08050-00
|
$2.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BOLT, FLANGE (8X55)
95701-08055-07
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (8X80)
95701-08080-00
|
$1.96 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
BOLT, FLANGE (10X60)
95701-10060-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
