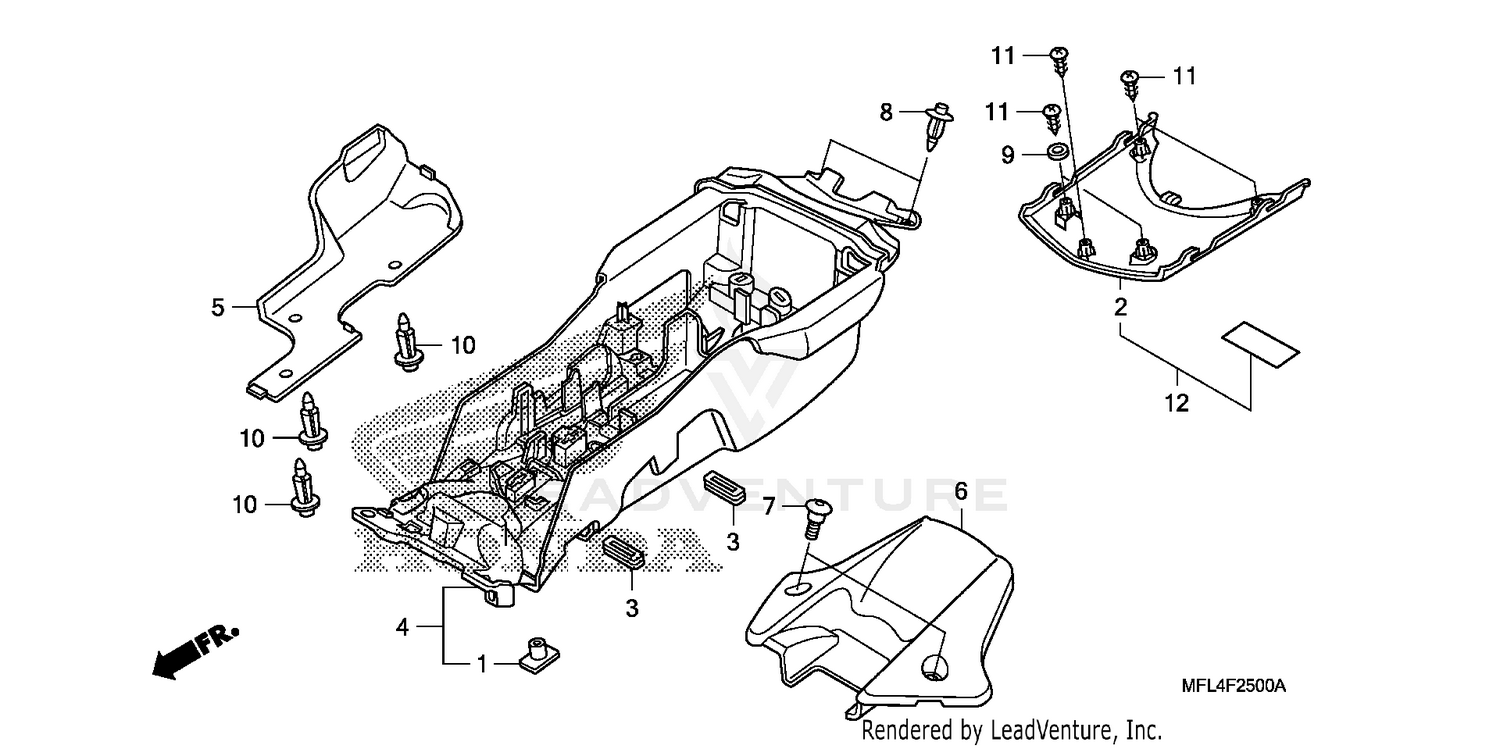

Rear Fender (cbr1000rr) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT, SPECIAL (6MM)
61304-HB3-003
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
COWL, CENTER SEAT *NHB01* (GRAPHITE BLACK)
77230-MFL-000ZB
|
$48.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
COWL, CENTER SEAT *R334* (VICTORY RED)
77230-MFL-000ZL
|
$47.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
COWL, CENTER SEAT *YR263P* (PEARL FIRE ORANGE)
77230-MFL-000ZM
|
$45.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
GROMMET, TOOL TRAY
77309-KK6-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
FENDER B, RR.
80105-MFL-000
|
$134.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, SERVO MOTOR
80106-MFL-000
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
FENDER C, RR.
80120-MFL-000
|
$9.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN (5X19)
90106-KCR-000
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
RIVET, PUSH
90116-MCS-G00
|
$1.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
WASHER, THRUST (5MM)
90504-964-000
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP, BODY COVER
90683-GR1-003
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SCREW, TAPPING (4X10)
93903-24280
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
