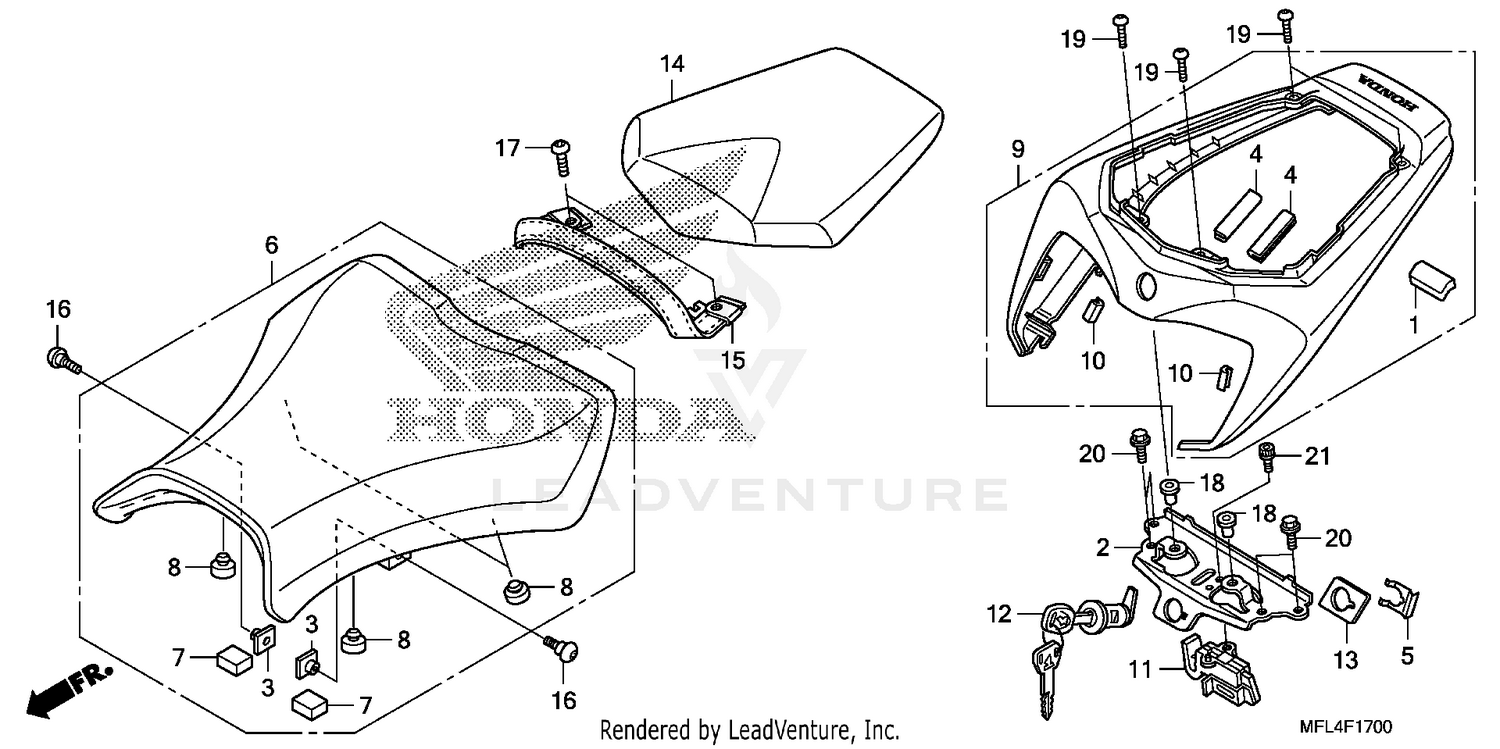

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAT A, L. FR. COVER
11353-KSV-J10
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, CROSS (UPPER)
50217-MFL-000
|
$37.62 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, HEADLIGHT SETTING
61304-162-013
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, PROTECTOR
64122-MBB-300
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, LOCK KEY SETTING
75581-GN8-920
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAT ASSY., SINGLE
77100-MFL-003
Superseded by 77100-MFL-013
|
$212.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAT ASSY., SINGLE
77100-MFL-013
|
$212.24 | ||
|
Unavailable |
|||
|
#7
CUSHION, SINGLE SEAT
77103-MFL-300
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, SEAT CUSHION
77207-MEL-000
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
COWL SET, RR. SEAT (TYPE3) (WL)
77210-MFL-760ZD
|
$243.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
COWL SET, RR. SEAT (TYPE1) (WL)
77210-MFL-D20ZA
|
$306.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
COWL SET, RR. SEAT (TYPE7) (WL)
77210-MFL-000ZN
|
$297.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
PROTECTOR, RUBBER
77212-MFJ-D00
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOOK, SEAT CATCH
77220-MEE-D01
|
$40.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
LOCK ASSY., SEAT
77225-MFJ-D01
|
$46.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SEAT LOCK
77236-GW0-000
Superseded by 77236-GZ5-000
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SEAT LOCK
77236-GZ5-000
|
$3.49 | ||
|
Unavailable |
|||
|
#14
SEAT ASSY., PILLION
77300-MFL-003
|
$193.38 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAT BELT
77310-MFL-000
|
$24.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, SPECIAL (6X8)
90104-MJ0-660
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SPECIAL (6X17)
90106-MFL-000
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, COWL SETTING (5MM)
90111-KW3-003
|
$5.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW, PAN (5X15)
90108-MFL-D20
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, SOCKET (6X12)
96600-06012-00
|
$1.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
