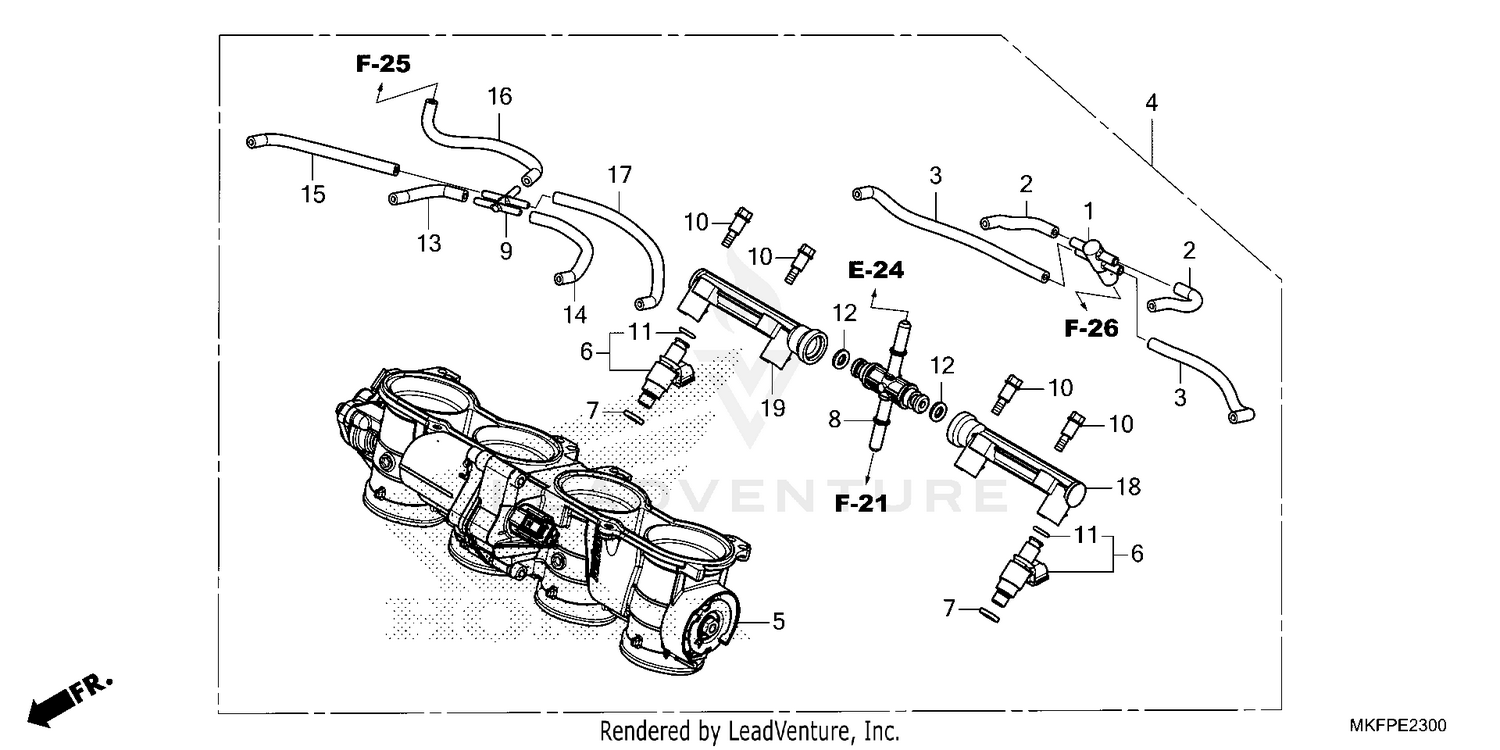

Throttle Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT (T)
16180-ME5-761
|
$36.15 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE
16196-MFL-771
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE
16197-MFL-771
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
THROTTLEBODY ASSY.
16400-MKF-L22
|
$2,482.13 | ||
|
Available to order. Add to View Price |
|||
|
#5
BODY ASSY., THROTTLE
16401-MKF-L21
|
$1,372.16 | ||
|
Available to order. Add to View Price |
|||
|
#6
INJECTOR ASSY., FUEL
16450-MFL-003
|
$153.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL RING, INJECTOR
16472-MCW-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
JOINT, FUEL
16650-MFL-003
|
$34.04 | ||
|
Available to order. Add to View Price |
|||
|
#9
JOINT, FIVE-WAY
17201-MCJ-003
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, SHOULDER
90021-MGZ-D02
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING (7.8X1.9)
91301-P7A-004
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (7.47X3.6)
91301-PLC-000
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)
95005-35001-20M
|
$11.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)
95005-35001-20M
|
$11.73 | ||
|
Unavailable |
|||
|
#15
BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)
95005-35001-20M
|
$11.73 | ||
|
Unavailable |
|||
|
#16
BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)
95005-35001-20M
|
$11.73 | ||
|
Unavailable |
|||
|
#17
BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)
95005-35001-20M
|
$11.73 | ||
|
Unavailable |
|||
|
#18
PIPE, FUEL
16610-MKF-D41
|
$49.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIPE, FUEL
16620-MKF-D41
|
$49.56 | ||
|
Available to order. Add to View Price |
|||
