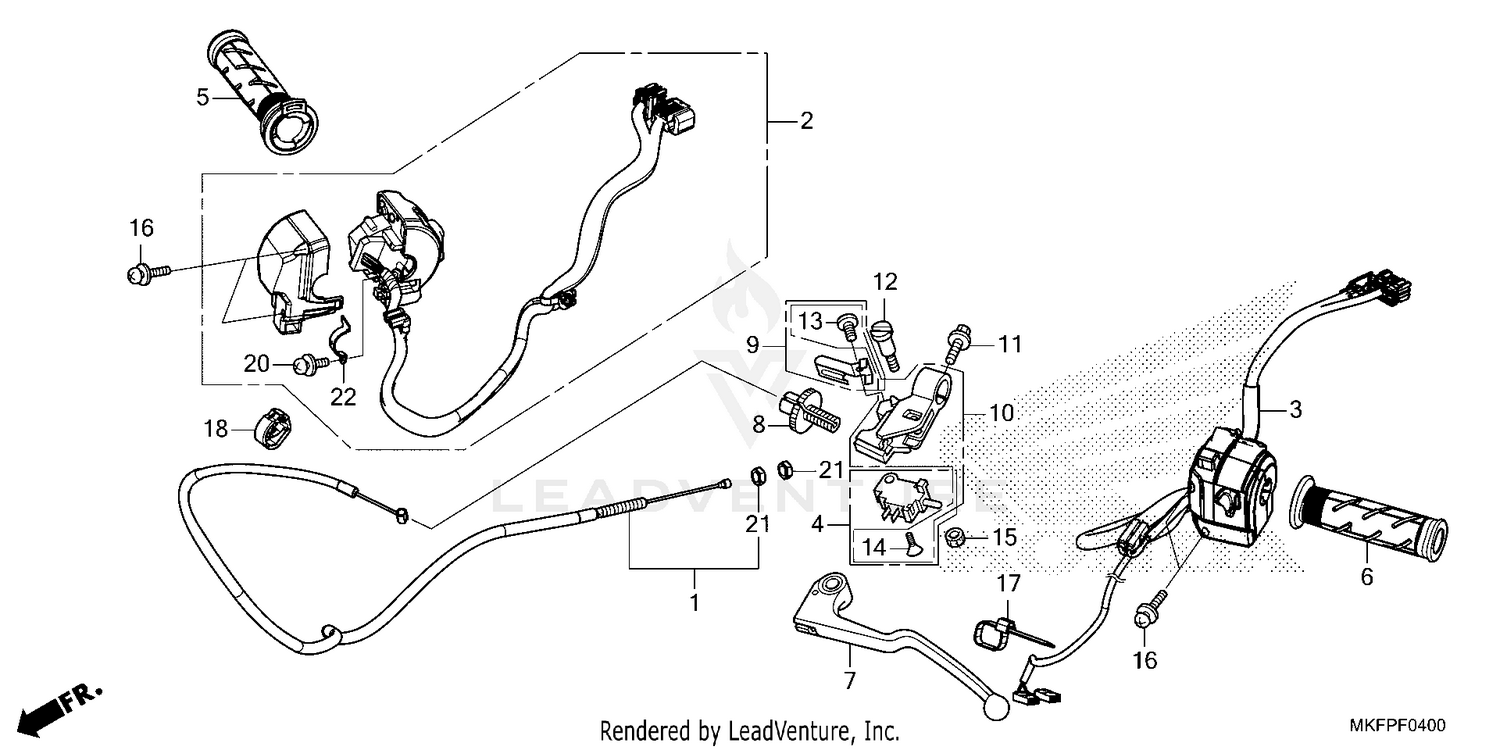

Handle Lever@switch@cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE, CLUTCH
22870-MKF-D40
|
$29.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
SW UNIT, ST ENG STOP
35135-MKF-D43
|
$251.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
SW, TURN SIGNAL
35200-MKF-D44
|
$248.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
SWITCH SET, CLUTCH
35335-MCJ-751
|
$17.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
GRIP ASSY., THROTTLE
53140-MKF-D41
|
$42.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
GRIP, L. HANDLE
53166-MY9-890
|
$22.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER, L. HANDLE
53182-MCJ-750
|
$29.04 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, CABLE ADJUSTING
53183-MCJ-750
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING SET, CLUTCH LEVER
53190-MCJ-751
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET SET, CLUTCH LEVER
53195-MCJ-751
|
$30.91 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X20)
90021-GHB-660
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, LEVER PIVOT
90122-MCJ-750
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN (4X10)
90123-MCJ-751
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, FLAT (3X16)
90124-MCJ-752
|
$0.71 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, U (6MM)
90301-MCJ-750
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW-WASHER (5X25)
90508-MGE-D00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAND, WIRE
90650-KW3-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP, HARNESS
90690-MEF-800
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW-WASHER (5X16)
93892-05016-08
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT,HEX 8MM
94002-080000S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE A, SETTING
37971-MKR-D31
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
