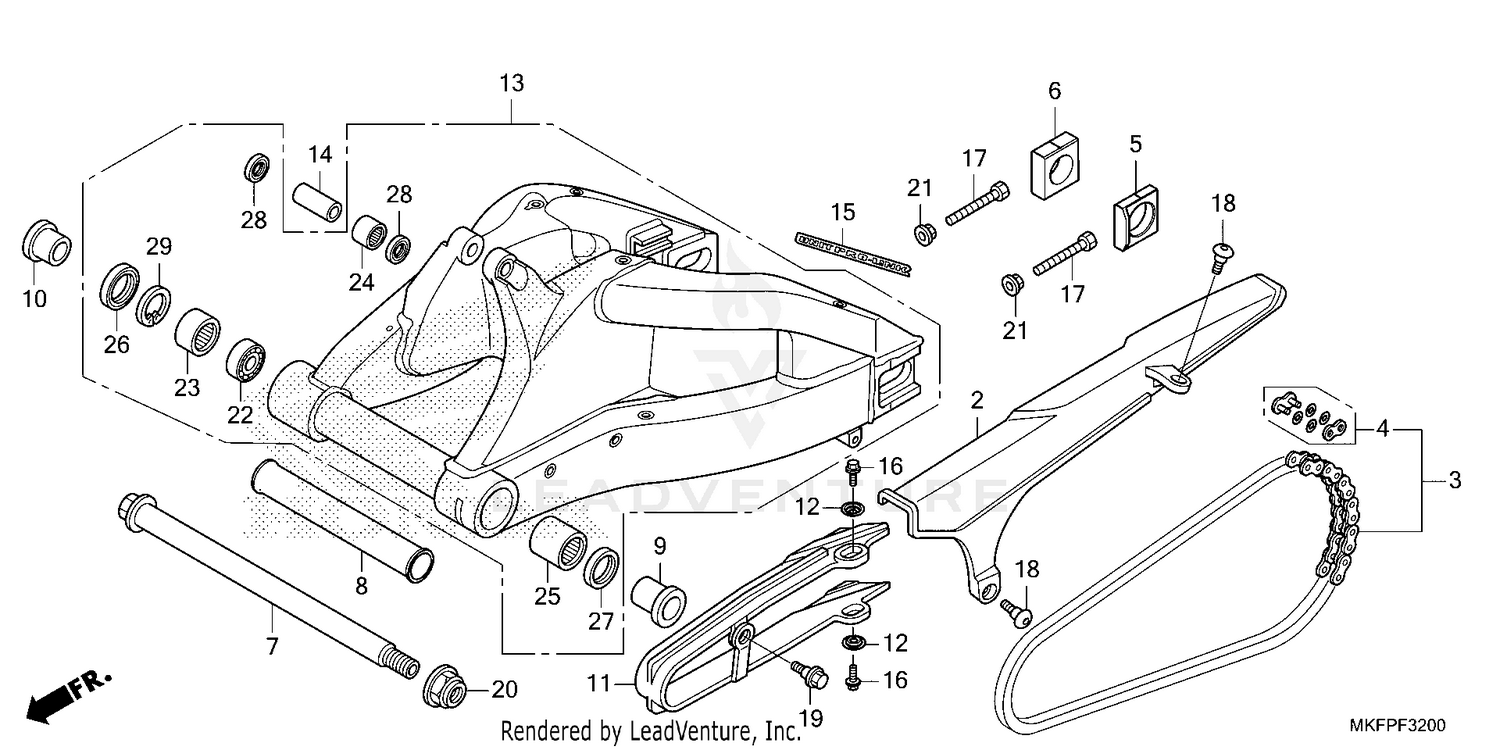

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
CASE, DRIVE CHAIN
40510-MFL-000
|
$59.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
CHAIN, DRIVE (RK525ROZ7-120LJFZ) (RK JAPAN) (STANDARD LINK 116L)
40540-MKF-D42
|
$262.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
MASTER LINK (RK JAPAN)
40535-MKF-D42
|
$13.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, L. RR. AXLE
42305-MKF-D40
|
$39.51 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, R. RR. AXLE
42306-MKF-D40
|
$32.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, SWINGARM PIVOT
52101-MFL-000
|
$71.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, RR. SWINGARM DISTANCE
52102-MKF-D40
|
$38.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, L. PIVOT DISTANCE
52143-MFL-000
|
$35.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, R. PIVOT DISTANCE (L.) (L. SIDE)
52144-MFL-000
|
$27.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
SLIDER, CHAIN
52170-MFL-010
|
$50.82 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, CHAIN SLIDER
52171-MFJ-D00
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
SWINGARM SUB-ASSY.
52200-MKF-D40
|
$2,437.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, CUSHION CONNECTING ROD
52463-MAL-G00
|
$14.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
MARK (UNIT PROLINK)
87121-MEL-D20
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X18)
90105-MY9-000
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEX. (8X50)
90107-MFL-D20
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, SPECIAL (6X16)
90116-MFL-D20
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, CHAIN SLIDER
90130-MCJ-750
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, U (22MM)
90306-MFL-D31
|
$20.13 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, HEX. (10MM)
90309-357-000
|
$4.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (6905)
91053-MCJ-003
|
$20.33 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, NEEDLE (32X42X20)
91053-MCJ-751
|
$38.89 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, NEEDLE (KOYO)
91071-KV3-005
|
$30.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BEARING, NEEDLE (32X42X37)
91071-MCJ-003
|
$25.53 | ||
|
Available to order. Add to View Price |
|||
|
#26
DUST SEAL (32X45X6)
91252-MCF-003
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#27
DUST SEAL (32X42X6)
91253-MCF-003
|
$8.05 | ||
|
Available to order. Add to View Price |
|||
|
#28
DUST SEAL (17X24X5) (ARAI)
91262-KV3-831
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
|
#29
CIRCLIP (INNER) (45MM)
94520-45000
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
