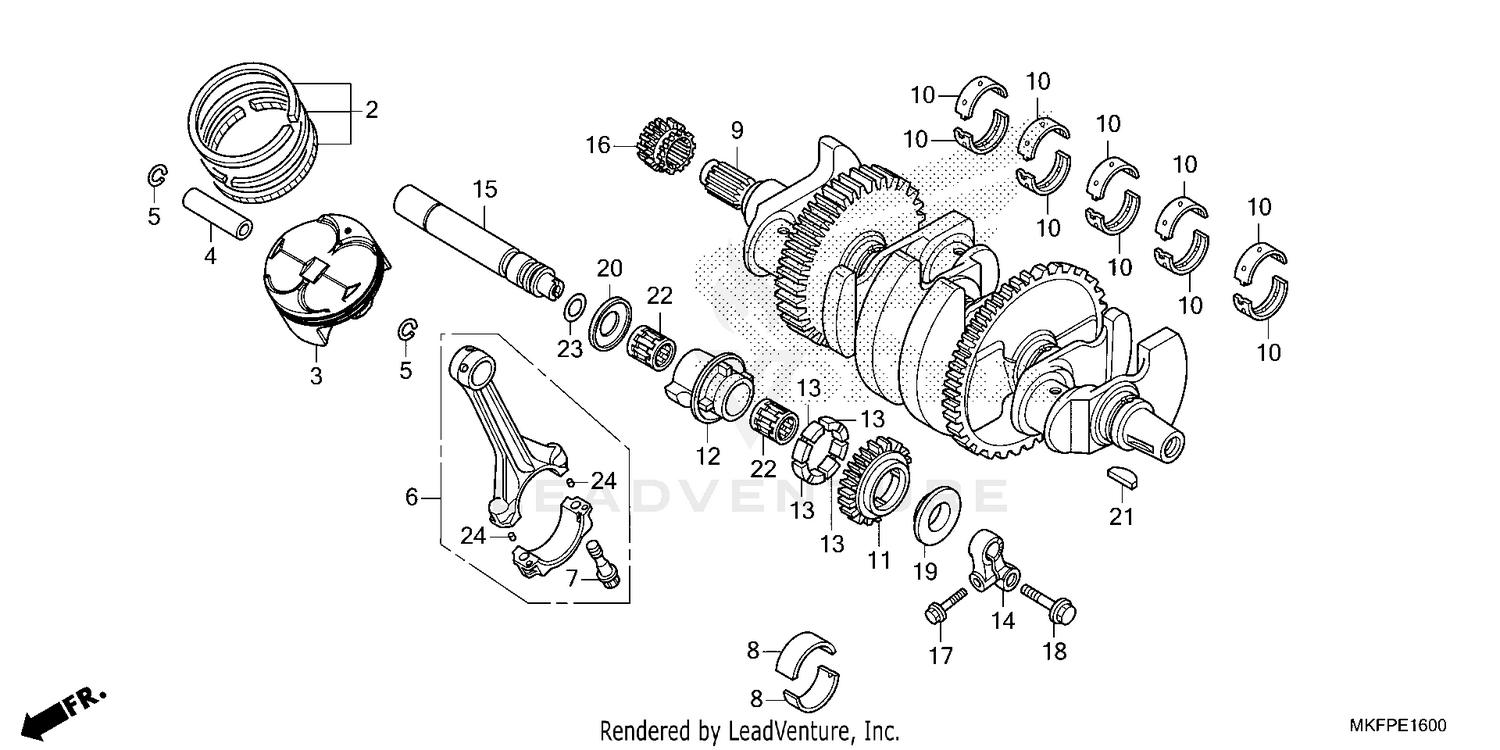

Crankshaft@piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
RING SET, PISTON
13031-MKF-D40
|
$61.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON
13101-MKF-D40
|
$274.18 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, PISTON
13111-MFL-010
|
$83.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP, PISTON PIN (17MM)
13112-MEL-000
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD ASSY., CONNECTING
13210-MKF-D40
|
$253.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, CONNECTING ROD
13213-MFL-003
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING A, CONNECTING ROD (BLUE)
13214-MKF-D41
|
$14.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING B, CONNECTING ROD (BLACK)
13215-MKF-D41
|
$14.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING C, CONNECTING ROD (BROWN)
13216-MKF-D41
|
$14.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING D, CONNECTING ROD (GREEN)
13217-MKF-D41
|
$14.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING E, CONNECTING ROD (YELLOW)
13218-MKF-D41
|
$14.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
CRANKSHAFT
13310-MKF-D40
|
$1,513.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING B, CRANKSHAFT (BROWN)
13314-MFL-003
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING C, CRANKSHAFT (GREEN)
13315-MFL-003
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING D, CRANKSHAFT (YELLOW)
13316-MFL-003
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING E, CRANKSHAFT (PINK)
13317-MFL-003
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING F, CRANKSHAFT (RED)
13318-MFL-003
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, BALANCER (26T)
13421-MFL-000
|
$110.29 | ||
|
Available to order. Add to View Price |
|||
|
#12
WEIGHT, BALANCER
13430-MFL-000
|
$120.71 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER, DAMPER
13435-MFL-000
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER, BALANCER SHAFT
13436-MM5-000
|
$63.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHAFT, BALANCER
13440-MKF-D40
|
$142.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPROCKET, TIMING
14312-MFL-010
|
$35.29 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE (6X18)
90002-MCZ-000
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (8X25)
90022-MFA-D00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER A, BALANCER SIDE
90457-MAT-000
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER B, BALANCER SIDE
90458-MAT-000
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#21
KEY, WOODRUFF (25X14X4)
90701-HB6-010
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING B, NEEDLE (18X27X23.8) (BLUE)
91015-MEL-003
|
$23.91 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING C, NEEDLE (18X27X23.8) (WHITE)
91016-MEL-003
|
$23.91 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING D, NEEDLE (18X27X23.8) (GREEN)
91017-MEL-003
|
$22.87 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (15X2.5) (Honda Code 0386995)
91302-377-000
|
$6.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
PIN C, DOWEL (4X6.5)
94303-04065
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
