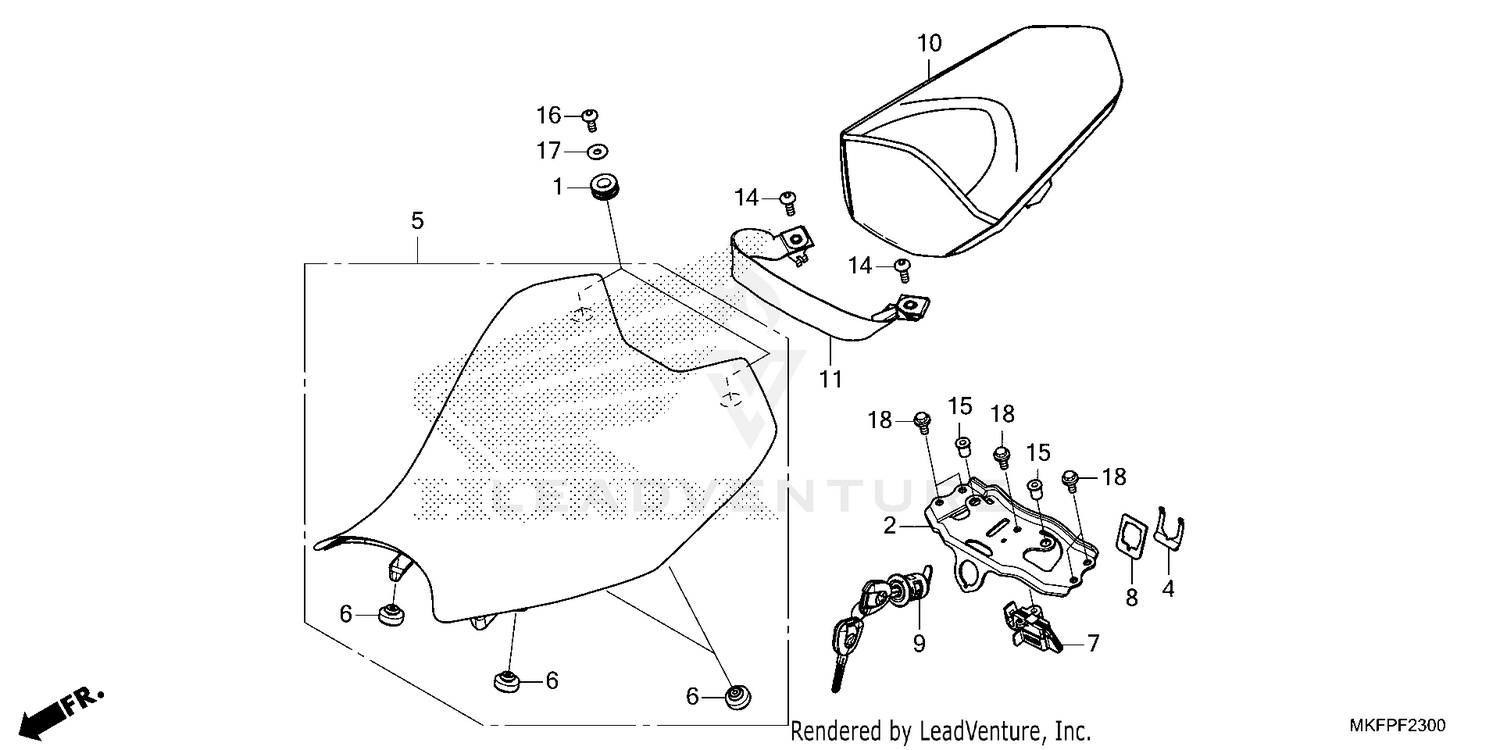

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, CANISTER BRACKET
17416-MEE-770
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, CROSS (UPPER)
50217-MKF-D40
|
$49.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, LOCK KEY SETTING
75581-MGP-D60
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAT ASSY., MAIN
77100-MKF-D41
|
$209.36 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, SEAT CUSHION
77207-MEL-000
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOOK, SEAT CATCH
77220-MEE-D01
|
$40.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SEAT LOCK
77236-MGP-D60
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
KEY, SEAT LOCK
77239-MGP-D65
|
$137.96 | ||
|
Unavailable |
|||
|
#10
SEAT ASSY., PILLION
77300-MKF-D41
|
$192.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAT BELT
77310-MKF-D40
|
$27.98 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SPECIAL (6X17)
90106-MFL-000
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, COWL SETTING (5MM)
90111-KW3-003
|
$5.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SCREW, PAN (6X14)
90118-MR1-000
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, PLAIN (6MM)
90525-428-900
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X12)
90025-GHB-620
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
