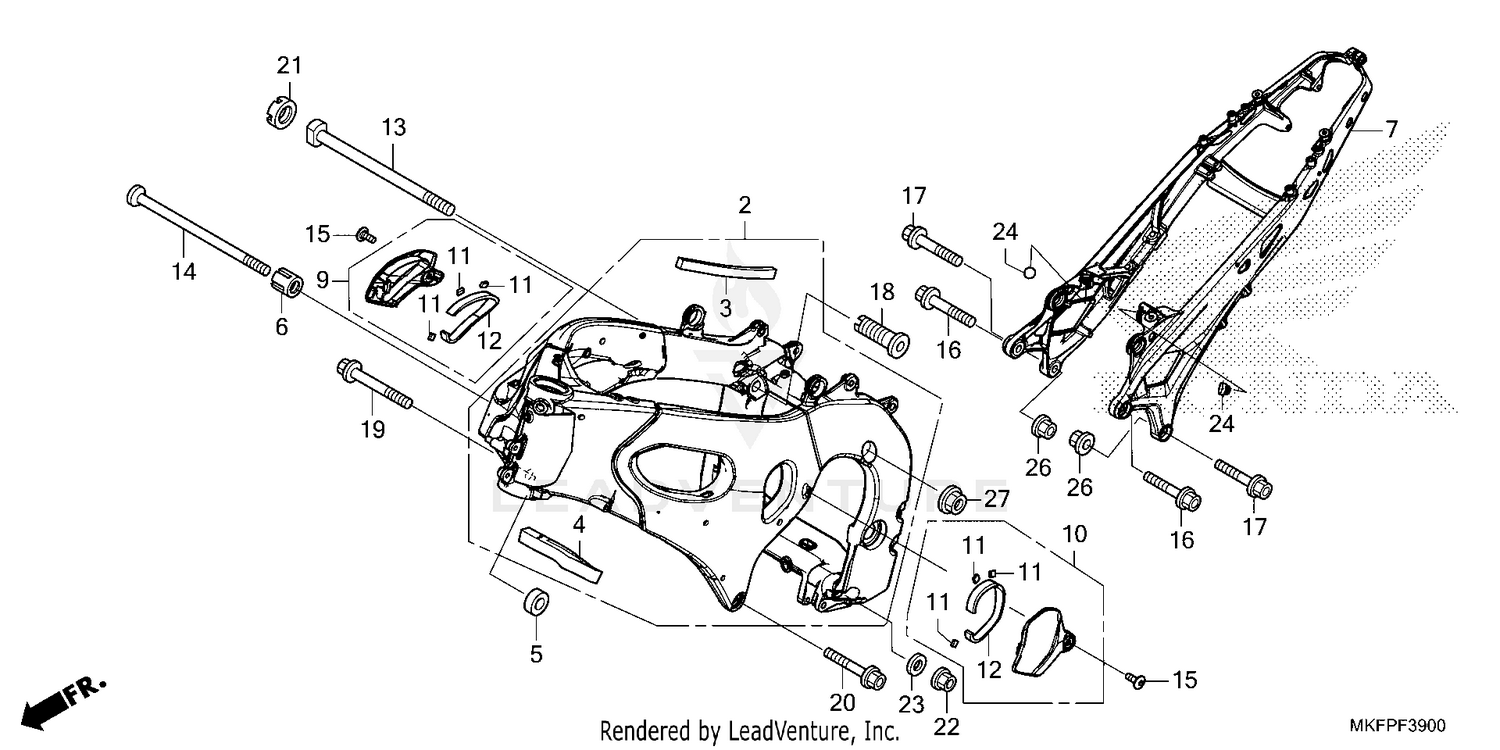

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
FRAME SET *NHA86M*
50010-MKF-A20ZC
|
$1,982.65 | ||
|
Unavailable |
|||
|
#3
MAT A, PIVOT BRACKET
50132-MFJ-J00
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
MAT B, PIVOT BRACKET
50133-MFJ-J00
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR A, ENGINE HANGER
50193-MKF-D40
|
$8.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR C, ENGINE HANGER
50194-MFL-000
|
$23.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
RAIL, SEAT *NHA86M*
50200-MKF-D41ZB
|
$615.29 | ||
|
Unavailable |
|||
|
#9
COVER, R. FRAME SIDE
83215-MKF-D40
|
$25.29 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, L. FRAME SIDE
83265-MKF-D40
|
$25.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, PROTECTOR
83266-MKF-D40
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
URETHANE, R. HEAT GUARD
83640-MGE-700
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SPECIAL (12X261.5)
90101-MFL-000
|
$18.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SPECIAL (12X269.5)
90102-MFL-000
|
$25.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, SPECIAL (6MM)
90108-MKF-D40
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (10X29)
90109-MFL-000
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (10X33.5)
90110-MFL-000
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, ADJUSTING (20X1.0X49.5)
90152-MFL-000
|
$17.24 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (12X50)
90163-MFL-D20
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (12X45)
90164-MFL-D20
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, LOCK (20MM) (P=1.0)
90303-MFJ-D00
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, FLANGE (12MM)
90371-MFL-000
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPECIAL (24X12X2.3)
90439-SB2-010
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
RUBBER, SEPARATOR MOUNTING
90572-KV3-300
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
NUT, FLANGE (12MM)
94050-12000
|
$1.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
