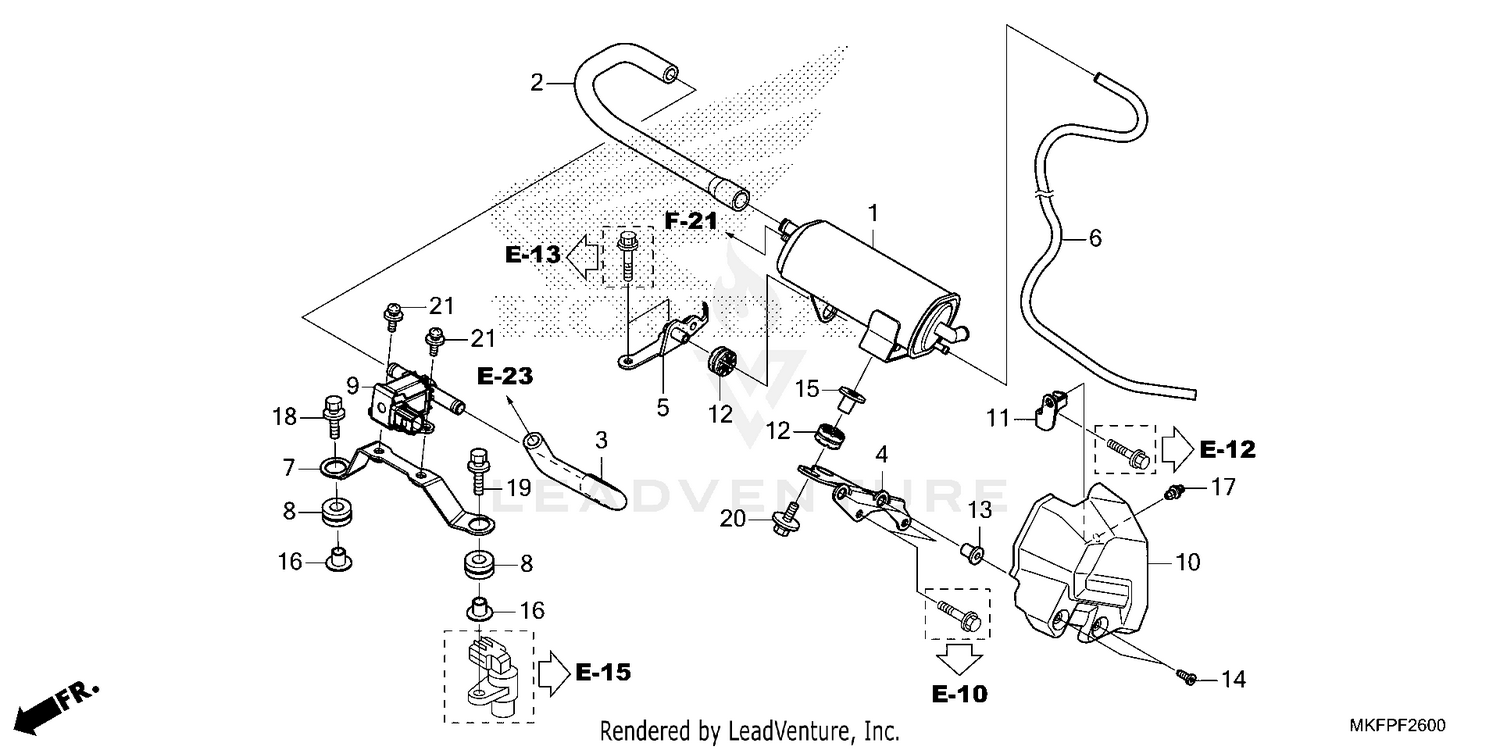

Canister Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CANISTER
17410-MGP-A81
|
$331.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, CANISTER-PURGE CONTROL VALVE
17412-MKF-L20
|
$15.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, FIVE WAY-PURGE CONTROL VALVE
17413-MKF-D40
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY A, CANISTER
17432-MKF-L20
|
$18.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY B, CANISTER
17433-MKF-L20
|
$10.84 | ||
|
Available to order. Add to View Price |
|||
|
#6
TUBE, CANISTER DRAIN
17434-MKF-L20
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, PURGE CONTROL VALVE
17445-MKF-D40
|
$25.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER A, PROTECTOR
18320-196-000
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
VALVE, PURGE CONTROL SOLENOID
36162-KZL-931
|
$66.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, CANISTER
64600-MKF-L20
|
$41.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY, CANISTER COVER
64712-MKF-L20
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, TAILLIGHT MOUNTING
84703-425-000
|
$5.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, COWL SETTING (5MM)
90111-KW3-003
|
$5.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, SPECIAL (5X14)
90117-MKF-D40
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR (6.2X13)
90501-MKF-L20
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, SIDE COVER SETTING
90522-KF0-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP, SPLASH SHIELD
90657-SB0-003
|
$6.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT-WASHER (6X20)
93401-06020-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT-WASHER (6X25)
93401-06025-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT-WASHER (6X25)
93404-06025-08
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW-WASHER (5X10)
93892-05010-08
|
$1.20 | ||
|
Unavailable |
|||
