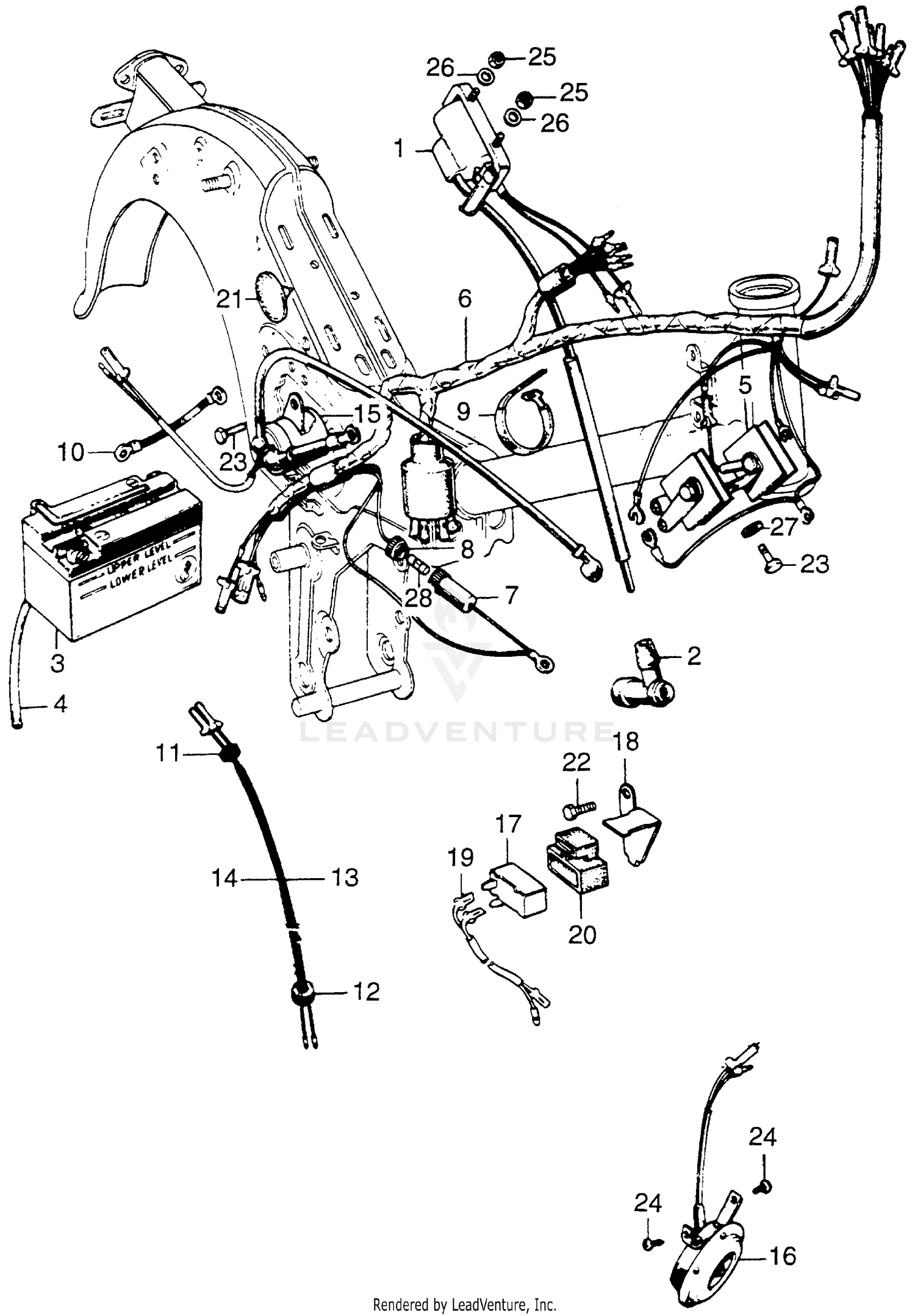

Wire Harness + Battery Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL ASSY., IGNITION (NOT AVAILABLE)
30500-087-791
|
$52.74 | ||
|
Unavailable |
|||
|
#2
CAP ASSY., NOISE SUPPRESSOR
30700-098-153
Superseded by 30700-KE2-942
|
$21.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY., NOISE SUPPRESSOR
30700-098-158
Superseded by 30700-KE2-942
|
$21.65 | ||
|
Unavailable |
|||
|
#2
CAP ASSY., NOISE SUPPRESSOR
30700-098-163
Superseded by 30700-KE2-942
|
$21.65 | ||
|
Unavailable |
|||
|
#2
CAP ASSY., NOISE SUPPRESSOR
30700-259-810
Superseded by 30700-KE2-942
|
$21.65 | ||
|
Unavailable |
|||
|
#3
BATTERY (6N11-2D)
31500-087-761
Superseded by 31500-174-505AH
|
$94.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
BATTERY (6N11-2D)
31500-174-505
Superseded by 31500-174-505AH
|
$94.18 | ||
|
Unavailable |
|||
|
#3
BATTERY (6N11-2D)
31500-174-771
Superseded by 31500-174-505AH
|
$94.18 | ||
|
Unavailable |
|||
|
#3
BATTERY (6N11-2D)
31500-174-777
Superseded by 31500-174-505AH
|
$94.18 | ||
|
Unavailable |
|||
|
#3
BATTERY (6N11-2D)
98203-64210
Superseded by 31500-174-505AH
|
$94.18 | ||
|
Unavailable |
|||
|
#4
PIPE, DRAIN
31520-087-760
|
$7.49 | ||
|
Unavailable |
|||
|
#5
RECTIFIER, SELENIUM (NOT AVAILABLE)
31700-087-791
Superseded by 31700-003-000
|
$267.05 | ||
|
Unavailable |
|||
|
#5
RECTIFIER, SELENIUM (NOT AVAILABLE)
31700-087-792
Superseded by 31700-003-000
|
$267.05 | ||
|
Unavailable |
|||
|
#6
WIRE HARNESS (NOT AVAILABLE)
32100-087-760
|
$79.04 | ||
|
Unavailable |
|||
|
#7
CONNECTOR A, FUSE (YUASA)
32106-041-000
Superseded by 32106-437-300
|
$6.86 | ||
|
Unavailable |
|||
|
#7
CONNECTOR A, FUSE (YUASA)
32106-041-008
Superseded by 32106-437-300
|
$6.86 | ||
|
Unavailable |
|||
|
#7
CONNECTOR A, FUSE (YUASA)
32106-437-300
|
$6.86 | ||
|
Unavailable |
|||
|
#8
CONNECTOR B, FUSE (YUASA)
32112-041-000
Superseded by 32112-041-008
|
$2.94 | ||
|
Unavailable |
|||
|
#8
CONNECTOR B, FUSE (YUASA)
32112-041-008
|
$2.94 | ||
|
Unavailable |
|||
|
#9
BAND A3, WIRE
32161-001-000
Superseded by 95014-61300
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND A3, CABLE
95014-61300
|
$2.25 | ||
|
Unavailable |
|||
|
#10
CABLE, BATTERY GROUND (NOT AVAILABLE)
32601-003-000
Superseded by 32601-086-690
|
$11.97 | ||
|
Unavailable |
|||
|
#10
CABLE, BATTERY GROUND (NOT AVAILABLE)
32601-086-690
|
$11.97 | ||
|
Unavailable |
|||
|
#11
GROMMET, TAILLIGHT WIRE (NOT AVAILABLE)
32982-011-000
|
$3.19 | ||
|
Unavailable |
|||
|
#12
GROMMET, WIRE HARNESS
32983-011-000
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#13
SUB-WIRE, TAILLIGHT (NOT AVAILABLE)
33711-028-671
|
$11.72 | ||
|
Unavailable |
|||
|
#14
SUB-WIRE, TAILLIGHT (N/A: USE TAILLIGHT UNIT)
33713-028-670
|
$13.59 | ||
|
Unavailable |
|||
|
#15
SWITCH ASSY., STARTER MAGNETIC (NOT AVAILABLE)
35850-041-010
Superseded by 35850-041-017
|
$65.88 | ||
|
Unavailable |
|||
|
#15
SWITCH ASSY., STARTER MAGNETIC (NOT AVAILABLE)
35850-041-017
|
$65.88 | ||
|
Unavailable |
|||
|
#16
HORN ASSY. (NOT AVAILABLE)
38100-041-010
|
$25.01 | ||
|
Unavailable |
|||
|
#17
RELAY ASSY., TURN SIGNAL
38300-GF0-405
|
$53.64 | ||
|
Available to order. Add to View Price |
|||
|
#17
RELAY ASSY., TURN SIGNAL
38300-089-671
Superseded by 38300-GF0-405
|
$53.64 | ||
|
Unavailable |
|||
|
#17
RELAY ASSY., TURN SIGNAL
38300-243-670
Superseded by 38300-GF0-405
|
$53.64 | ||
|
Unavailable |
|||
|
#17
RELAY ASSY., TURN SIGNAL
38300-428-004
Superseded by 38300-GF0-405
|
$53.64 | ||
|
Unavailable |
|||
|
#17
RELAY ASSY., TURN SIGNAL
38301-428-671
Superseded by 38300-GF0-405
|
$53.64 | ||
|
Unavailable |
|||
|
#17
RELAY ASSY., TURN SIGNAL
38310-428-671
Superseded by 38300-GF0-405
|
$53.64 | ||
|
Unavailable |
|||
|
#18
STAY, TURN SIGNAL RELAY
38301-087-760
|
$7.61 | ||
|
Unavailable |
|||
|
#19
SUB-WIRE, TURN SIGNAL RELAY (NOT AVAILABLE)
38303-107-670
|
$11.02 | ||
|
Unavailable |
|||
|
#20
SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)
38306-107-670
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#21
RUBBER, BATTERY STAY (NOT AVAILABLE)
50326-003-000
|
$1.31 | ||
|
Unavailable |
|||
|
#22
BOLT, HEX. (6X10)
92000-06010
Superseded by 92101-06010-0A
|
$1.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, HEX. (6X10)
92101-06010-0A
|
$1.47 | ||
|
Unavailable |
|||
|
#23
BOLT, HEX. (6X12)
92000-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEX. (6X12)
92101-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#23
BOLT, HEX. (6X12)
92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#24
SCREW, PAN (5X12)
93500-05012-0A
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#25
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#25
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#25
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#25
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#25
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#26
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#26
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#27
WASHER, SPRING (6MM)
94111-06000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
FUSE A (15A)
98200-11500
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
