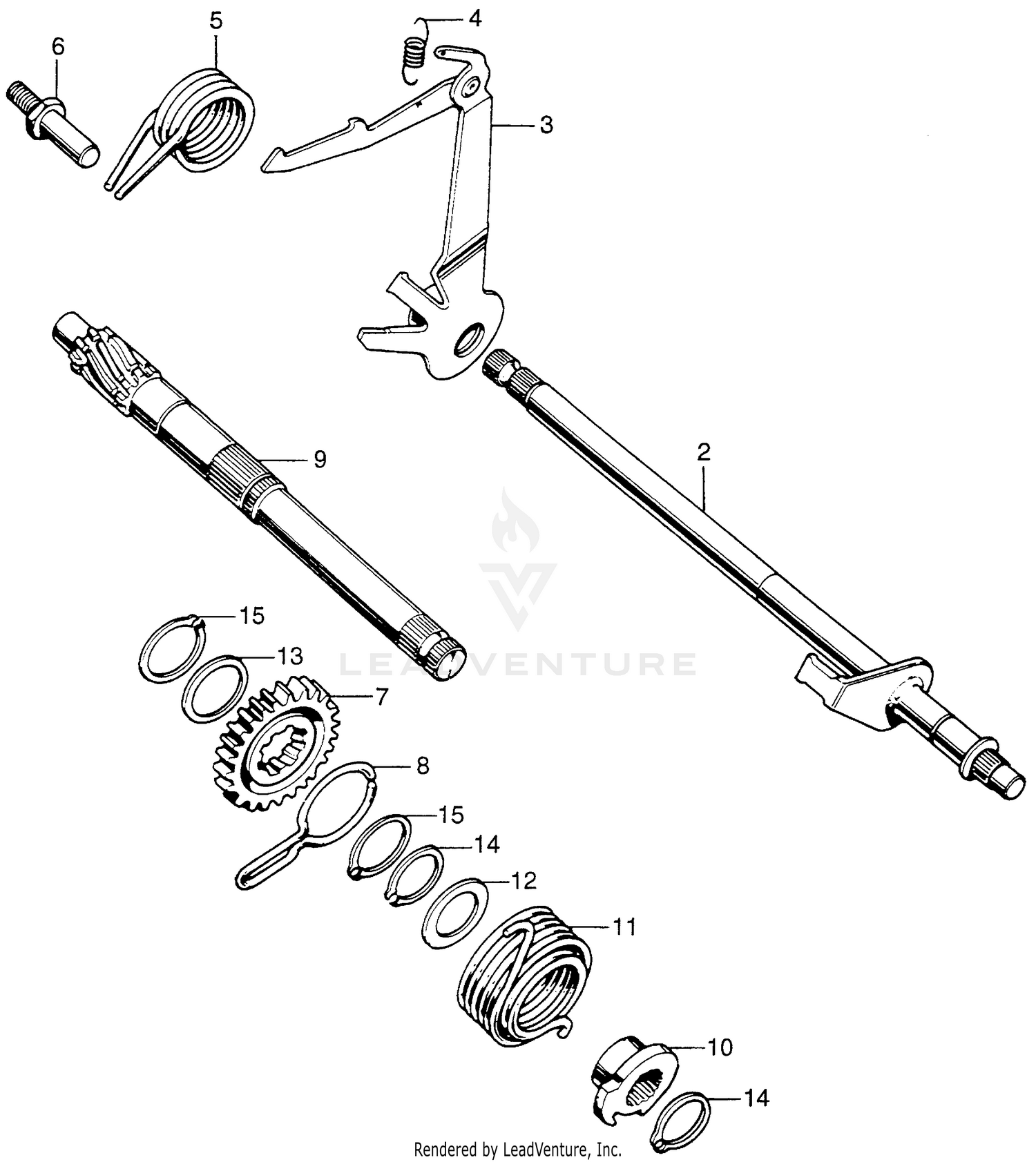

Kick Starter + Gear Charge Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
SPINDLE, GEARSHIFT (NOT AVAILABLE)
24610-039-020
|
$42.61 | ||
|
Unavailable |
|||
|
#2
SPINDLE, GEARSHIFT
24610-092-670
|
$67.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
ARM, GEARSHIFT
24630-040-040
Superseded by 24630-086-030
|
$19.31 | ||
|
Unavailable |
|||
|
#3
ARM, GEARSHIFT
24630-086-000
Superseded by 24630-086-030
|
$19.31 | ||
|
Unavailable |
|||
|
#3
ARM, GEARSHIFT
24630-086-010
Superseded by 24630-086-030
|
$19.31 | ||
|
Unavailable |
|||
|
#3
ARM, GEARSHIFT
24630-086-020
Superseded by 24630-086-030
|
$19.31 | ||
|
Unavailable |
|||
|
#4
SPRING, GEARSHIFT ARM
24641-041-000
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, GEARSHIFT RETURN
24651-041-000
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, SHIFT RETURN SPRING
24652-035-000
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
PINION, KICK STARTER (22T)
28211-040-035
|
$56.73 | ||
|
Unavailable |
|||
|
#8
SPRING, KICK STARTER RATCHET
28223-035-035
|
$3.70 | ||
|
Unavailable |
|||
|
#9
SPINDLE, KICK STARTER
28251-035-065
Superseded by 28251-141-000
|
$69.05 | ||
|
Unavailable |
|||
|
#9
SPINDLE, KICK STARTER
28251-141-000
|
$69.05 | ||
|
Unavailable |
|||
|
#10
RETAINER, KICK SPRING
28262-035-020
Superseded by 28262-041-731
|
$19.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
RETAINER, KICK SPRING
28262-041-730
Superseded by 28262-041-731
|
$19.16 | ||
|
Unavailable |
|||
|
#10
RETAINER, KICK SPRING
28262-041-731
|
$19.16 | ||
|
Unavailable |
|||
|
#11
SPRING, KICK STARTER (NIPPON HATSUJO)
28281-035-003
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, KICK STARTER (NIPPON HATSUJO)
28281-035-010
Superseded by 28281-035-003
|
$9.56 | ||
|
Unavailable |
|||
|
#12
WASHER, THRUST (17MM)
90451-040-000
|
$3.71 | ||
|
Unavailable |
|||
|
#13
WASHER (20MM) (NOT AVAILABLE)
90482-035-025
|
$2.06 | ||
|
Unavailable |
|||
|
#14
CIRCLIP (OUTER) (17MM)
90601-001-000
|
$1.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SET-RING (20MM)
90605-200-000
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
